1500rpm 50Hz 27.5KVA three phase single bearing diesel generator 22kw brushless alternator

1500rpm 50Hz 27.5KVA three phase single bearing diesel generator 22kw brushless alternator

FOB Reference Price: Get Latest Price

≥5 Pieces

US $496

≥30 Pieces

US $476

≥50 Pieces

US $456

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: NIANFENG

Model Number:: NF184L-F, NF184L-F

Insulation class:: H class

Protection Class:: IP23

Excitation type:: Brushless

Bearing:: single bearing

Color:: Customers' Request

Rated Power:: 27.5KVA /22KW

Certification:: CE ISO9001

Quick Details

Rated Voltage:: 230V, 380v, 400V

Frequency:: 60Hz

Place of Origin:: Fujian, China

Brand Name:: NIANFENG

Model Number:: NF184L-F, NF184L-F

Insulation class:: H class

Protection Class:: IP23

Excitation type:: Brushless

Bearing:: single bearing

Color:: Customers' Request

Rated Power:: 27.5KVA /22KW

Certification:: CE ISO9001

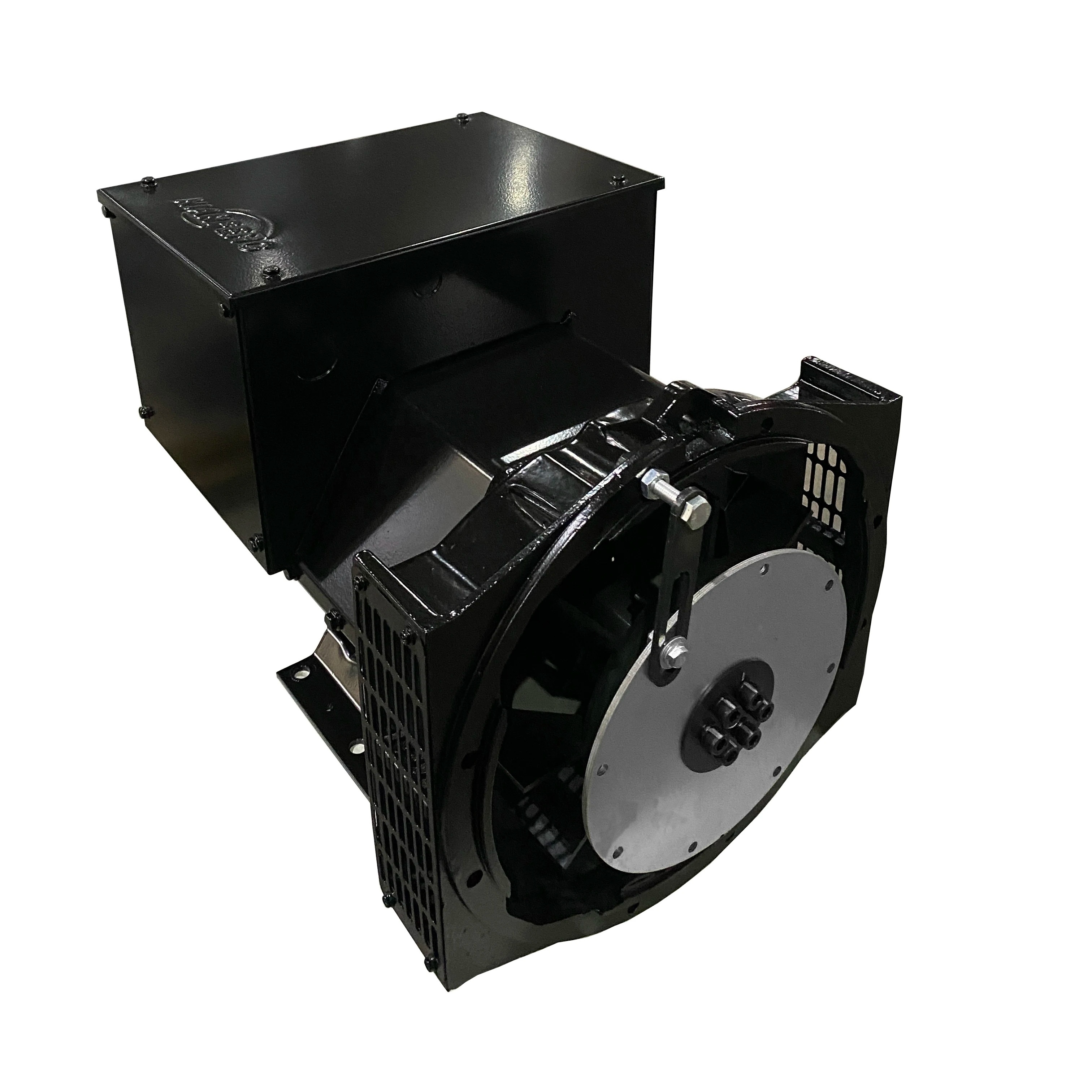

Best price!! NF184 series brushless alternator generator

Description：Products character

1. Optional auxiliary winding or phase-compound excitation system can provide the ability of bearing short-circuit current
2.Advanced automatic voltage regulator system can guarantee the genrator work normally even in the worst conditions.
3.Reorganization the first twelve terminal block wiring to fit the different voltage requirements.
4. Standard 2 / 3 pitch windingscurbed excessive midline current, making it very easily to operate with othergeneratorsinparallel.
5. Unique overall design ofsalient-pole rotating magnetic field, taking into account the advantages of separationofsalient-poleandhidden structure, and
improved the thermal conditions and the winding coil increased mechanical strength. 6. Easy installation,convenientmaintenance,with easily operated terminal, rotating diodes and the bolt shaft.
7. Both of the single and full pivot type structures, incompliance with all the leading diesel enginelandassemblyinterfacestandards.
8. Adopted a completely continuous damper windingand the 2 / 3 pitch windings effectively inhibit the outputvoltagewaveformdistortion and greatly reduce telephone harmonicfactor and telephone interference factor.
Electrical performance
Voltage sinusoidal waveform distortion rate:≤5%
Telephoneharmonic factor (THF):≤2%
Telephone interference factor(TIF):≤50
AVR optional
SX460,MX321,MX341,SX440,SX440T,AS440,etc.

Model	Power	Rated Volt(V)	RatedSpeed(r/min)	Frequency（Hz)
NF-184D	20KVA 16KW	230/380/400	1500	50
NF-184E	22.5KVA 18KW	230/380/400	1500	50
NF-184F	27.5KVA 22KW	230/380/400	1500	50
NF-184G	31.3KVA 25KW	230/380/400	1500	50
NF-184H	37.5KVA 30KW	230/380/400	1500	50
NF-184J	42.5KVA 34KW	230/380/400	1500	50

NIANFENG is a major industry manufacturer for generators in Fujian Province, located in the city of"The capital of Chinese Small
and Medium-sized Motor"--Fuan city, it is specializing in the research and manufacturing of Land/Marine generators, high-voltage
generators, permanent magnet generators and other types of generators

For more than ten years, NIANFENG insists on creating evergreen brand with quality, and has passed ISO9001 quality system,
ISO14001 environmental management system and ISO45001 occupational health and safety management system certification. Technical
performance indicators have reached the international advanced level of the company, the products comply with various
international standards, product power, voltage, frequency, protection grade cover ability can meet the demand of global users
diversification, when compared with similar products at home and abroad has higher efficiency and better dynamic performance, low
temperature, low waveform distortion rate, AVR advantages of parallel running stability, It can match all kinds of power systems
well, and is widely used in many fields such as data center, building, ship, military, electric power, factory and mine, railway,
highway, petrochemical and so on. It is well received by customers at home and abroad.

At present, NIANFENG has built more than 47,000 square meters of modern production plant, with scientific machinery and equipment
enterprise management system and a complete industry internal supply chain, the annual production capacity is up to 100,000 sets.
NIANFENG's scientific research and innovation ability is the leader in the generator industry, it has won more than 30 national
invention and utility model patents, and has been awarded the "National High-Tech Enterprise", "Provincial Science And Technology
Giant Leading Enterprise", "Provincial Specialized, Fine And Special New Enterprise" and other honorary titles.
