Quick Details
-
Brand Name:
-
HI-TEK
-
Product name:
-

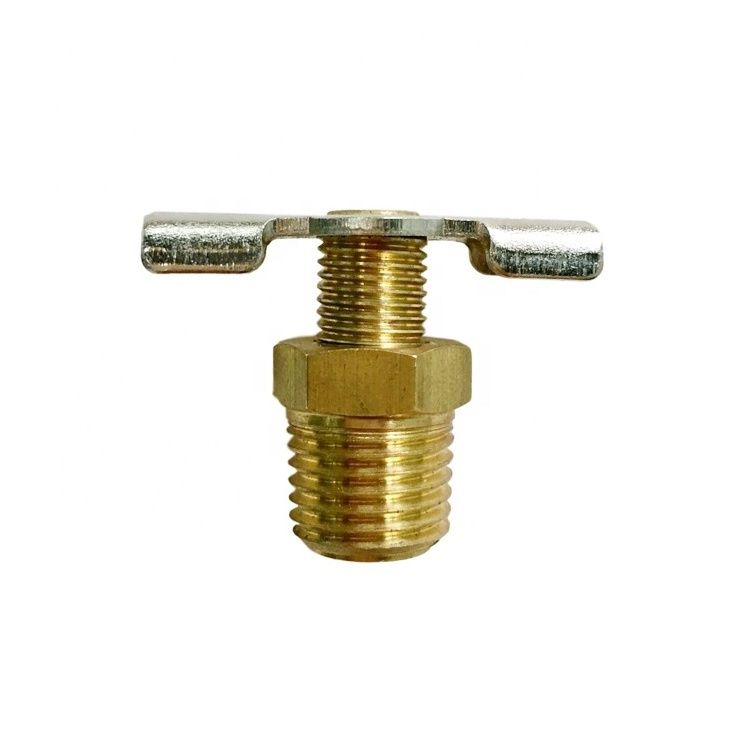

1/4" NPT Brass Petcock Water Drain Valve for Air Compressor Tank
-
Body material:
-
Brass
-
Handle Material:
-
SS
-
Size:
-
1/4"
-
Connection:
-
Male thread
-
Thread:
-
NPT
-
Seal:
-
Hard + soft
-
Working pressure:
-
200 psi
-
Working Temperature:
-
-4°F to 390°F
Quick Details
-
Port Size:
-
1/4in
-
Place of Origin:
-
China
-
Model Number:
-
HK-1723
-
Brand Name:
-
HI-TEK
-
Product name:
-
1/4" NPT Brass Petcock Water Drain Valve for Air Compressor Tank
-
Body material:
-
Brass
-
Handle Material:
-
SS
-
Size:
-
1/4"
-
Connection:
-
Male thread
-
Thread:
-
NPT
-
Seal:
-
Hard + soft
-
Working pressure:
-
200 psi
-
Working Temperature:
-
-4°F to 390°F
Various Products
Products Description
|
Product name
|
Drain valve
|
|
Body Material
|
Brass
|
|
Handle Material
|
A3 with nickel plated
|
|
Size
|
1/4" NPT F*F
|
|
Pressure
|
200 psi
|
|
Sealing material
|
NBR
|
|
Applications
|
compressors
|
All compressors generate water. It goes hand in hand with compressing air. The better the compressor the more water created. You need to get the water out otherwise it will get pumped into what ever you use the compressed air for. Our tanks have multi ports and can be rotated so a port is at the bottom where water would sit. This unit is securely screwed into the tank (1/4 NPT) and sealed with paste or plumbers tape. Internally it screws in and out and is sealed with an o-ring. Water escapes through the hole in the pics and out the core of the inner piece. You can attach a small bit of hose to direct water outside if the tank is inside the car.
Drain valves are designed for bubble tight sealing for small air compressor tanks (available with 1/2'' 3/8" 1/4" 1/8"NPT BSPT BSPP threaded connection).
Drain cocks are manufactured in both external and internal seats
Construction: Brass body and stem
Drain valves are designed for bubble tight sealing for small air compressor tanks (available with 1/2'' 3/8" 1/4" 1/8"NPT BSPT BSPP threaded connection).
Drain cocks are manufactured in both external and internal seats
Construction: Brass body and stem
HI-TEK Technical datasheet
|
Product Name
|
1/4" NPT Brass Petcock Water Drain Valve Durable Replacement Part for Air Compressor Tank
|
|
|
Valve Type
|
Stop Cock
|
|
|
Valve Function
|
On/Off
|
|
|
Inlet
|
|
|
|
Connection Type
|
Pipe
|
|
|
Pipe Connection Type
|
Threaded
|
|
|
Pipe Size
|
1/8" to 1/2"
|
|
|
Thread Type
|
NPT/BSP/BSPT, and other threads
|
|
|
Gender
|
Male
|
|
|
Outlet
|
|
|
|
Connection Type
|
Unthreaded Hole
|
|
|
Valve Operation
|
Handle
|
|
|
Handle Style
|
Wing Nut
|
|
|
For use with
|
Water,Oil
|
|
|
Max. Pressure
|
200 Psi @ 250°F
|
|
|
Temperature Range
|
-40°F to 350°F
|
|
|
Seal Type
|
Soft + Hard
|
|
|
Body Material
|
Brass
|
|
Detailed Pictures
Hi-Tek Drain cock valve compare with other quality
|
Hi-Tek drain cock valve
|
Other drain cock valves
|
|
1. The top of body hold the handle firmly so that it won't fall off.
|
1. Handle is pressed with the body, which is crooked and easy to fall off
|
|
2. Flexiable O-ring and completely suit the groove,with strong sealing
|
2. Dented rubber ring,lack of flexible and bad in sealing
|
|
3. Dual sealing:Soft sealing+hard sealing,no leak
|
3. Sealed with dented rubber ring,easy to leak
|
|
4. Smooth and bright surface, even color and luster, without defect such as pore-free and crackle etc. , screw thread without burr
|
4.Surface with rough edge, burr or other defects ,easy to leak and broken even hurt operator's hand
|
Related Products
Our Services
HI-TEK
is professional manufacturer in instrumentation valves and fittings
,
with a professional engineering team, efficient sales team, and competitive price advantage for a variety of high quality products for customers worldwide, committed to creating a win-win situation and establishing long-term partnerships with customers.
|
1. Component selection
|
|
|
|
|
||||
|
2. Customization service
|
|
|
|
|
||||
|
3. MTC
|
|
|
|
|
||||
|
4. Professional packaging
|
|
|
|
|
||||
|
5. Flexible shipment options
|
|
|
|
|
||||
Our Company
Hubei Hi-tek Valve and Fitting Co., Ltd
Hubei Hi-tek Valve and Fitting Co., Ltd is a fully integrated company that specializes in product design, development, and manufacturing.
We are proud to offer a wide range of metal products, including tank cleaning nozzles, ball valves, needle valves, check valves, valve manifolds, block and bleed valves, monoflange valves, valve fittings and wellhead components, tube fittings, pipe fittings, and pressure gauge accessories such as brass gauge cocks, pressure gauge siphons, pressure snubbers, and test plugs.
Our products are made from a variety of materials, including carbon steel, stainless steel, brass and other special materials like inconel, monel, hastelloy, duplex,super duplex,etc.
Our products are used in a wide range of applications, including petroleum and gas fields, pharmaceutical engineering, food engineering, biochemical engineering, chemical engineering, brewing, water treatment, and other fields.
We have a professional engineering team, a highly efficient sales team, and a competitive pricing advantage, which has helped us attract customers from all over the world. We export to over 80 countries, including North America, South America, Europe, Australia, East Asia, and the Middle East. Our company values quality and integrity above all else.
We have obtained ISO9001 quality control certification, and our enterprise credit evaluation is AAA credit enterprise. All our orders can be processed through Alibaba trade assurance to ensure our customers' business is safe. We are committed to creating a win-win situation and establishing long-term cooperation with our customers.
