Quick Details
-
Model Number:
-
DL--4.0SSZ
-
Warranty:
-
12 Months
Quick Details
-
Lifting Capacity:
-
4T
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
DELILAI
-
Model Number:
-
DL--4.0SSZ
-
Warranty:
-
12 Months
Product Description
Specification
|
Brand name
|
DELILAI
|
|
|
Product name
|

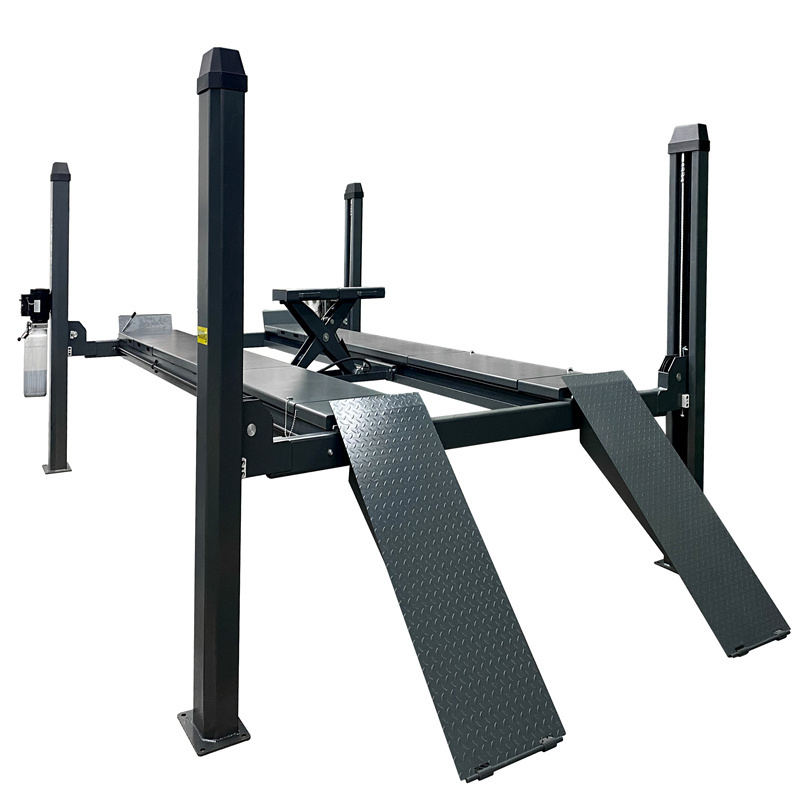

four post car lift
|
|
|
Model number
|
DL-4.0SSZ
|
|
|
Lifting capacity
|
4T
|
|
|
Lifting height
|
1700mm
|
|
|
min.lifting height
|
220mm
|
|
|
table length
|
4500mm
|
|
|
total length
|
4860mm
|
|
|
total width
|
3340mm
|
|
|
Inter column width
|
2990mm
|
|
|
single lane width
|
550mm
|
|
|
lane spacing
|
950mm
|
|
|
column height
|
2000mm
|
|
|
second lifting height
|
320-480mm
|
|
|
Moto power
|
2.2kw
|
|
|
Voltage
|
380v/220v/customized
|
|
Features
1.Electric, manual and unlocking are adopted.
2.The hydraulic power unit is equipped with throttling device. and the lowering speed can be adjusted at any time.
3.Driven byhydraulic cyinder and steel wire rope. the lifting is stable and quiet.
4.The steelwire ropecontrol safety lock is set, which has the fuction of protecting the steel wire rope from breakage, making the operation safer.
5.Itadopts electric linkage lock and eight point locking for convenient operation.
6.It can belocked at the required height to operate safely and reliably.
7.The runway spacing is adjustable and suitable for vehicles with different track widths.
Details Images
01
second lifting
02
Oil filling hole of wire rope wheel
03
oil filling hole
