Quick Details
-
Brand Name:
-
SINYA
-
Material::
-
Stainless Steel,Alloy
-
Connection::
-
ferrule or thread
-
Standard or Nonstandard::
-
Standard
-
Application::
-
General
-
Temperature of Media::
-
-54°C - 148°C
-
Certificate::
-
CCS,CE
-
Working pressure::
-
3000 psig(206 bar)
-
Size::
-
1/8" to 1"
-
Technis::
-
Forged bar stock
-
OEM service::
-
available
Quick Details
-
Port Size:
-
1/2"
-
Place of Origin:
-
Jiangsu, China
-
Model Number:
-
QZT2-SK Two-way angle-type valve with ferrule - B
-
Brand Name:
-
SINYA
-
Material::
-
Stainless Steel,Alloy
-
Connection::
-
ferrule or thread
-
Standard or Nonstandard::
-
Standard
-
Application::
-
General
-
Temperature of Media::
-
-54°C - 148°C
-
Certificate::
-
CCS,CE
-
Working pressure::
-
3000 psig(206 bar)
-
Size::
-
1/8" to 1"
-
Technis::
-
Forged bar stock
-
OEM service::
-
available
Product Description
|
1.Ball valves are designed to use in the full-open or fullclose positions.
|
|
|
|
|
||||
|
2.There would be a lit bit higher start executing torque for the valves which haven't been used for a long time.
|
|
|
|
|
||||
|
3.Packing might be adjusted to avoid leakage during the valve operation.
|
|
|
|
|
||||
|
4.Special tools or wrenches should be used to adjust the packing according to detailed specifications or sizes.
|
|
|
|
|
||||
|
5.Each QZT valve should be done nitrogen test under the rated pressure of 1000psi (69bar).
|
|
|
|
|
||||
|

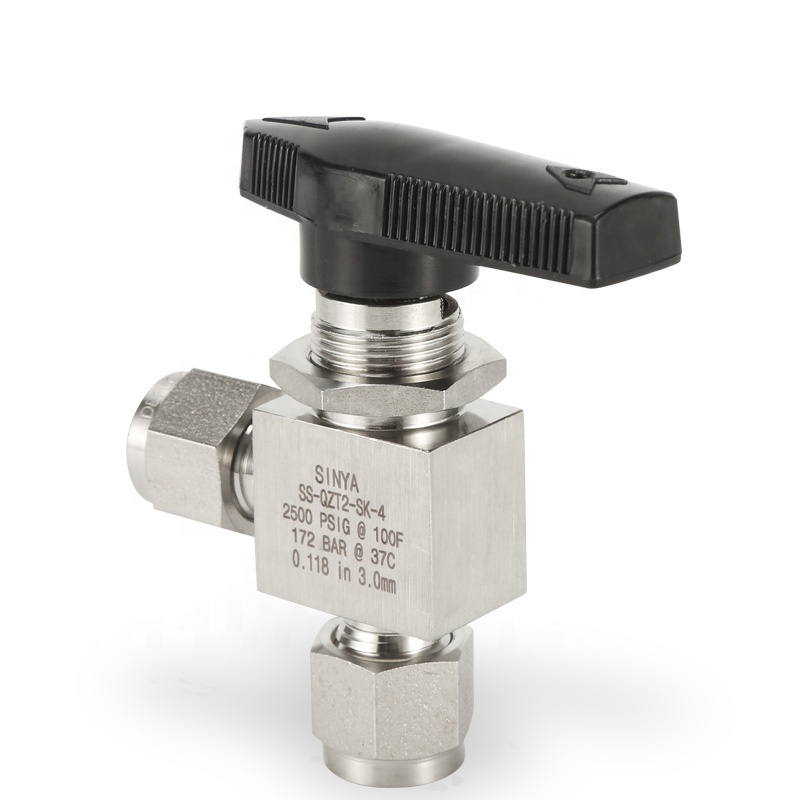

-QZT2-SK Two-way angle-type valve with ferrule
|
|
|
|
|
|
|
||||||
|
Order information
|
End Connection Size
|
|
Orifice
|
|
A
|
|
||||||
|
|
(in)
|
(mm)
|
(in)
|
(mm)
|
(in)
|
(mm)
|
||||||
|
-QZT2-SK-2
|
1/8
|
3.17
|
0.09
|
2.4
|
1.01
|
25.5
|
||||||
|
-QZT2-SK-3
|
3/16
|
4.76
|
0.13
|
3.2
|
1.1
|
28
|
||||||
|
-QZT2-SK-4
|
1/4
|
6.35
|
0.19
|
4.8
|
1.2
|
30
|
||||||
|
-QZT2-SK-6
|
3/8
|
9.52
|
0.28
|
7.1
|
1.45
|
36.5
|
||||||
|
-QZT2-SK-8
|
1/2
|
12.7
|
0.41
|
10.3
|
1.74
|
44.2
|
||||||
|
-QZT2-SK-3mm
|
0.12
|
3
|
0.09
|
2.4
|
1.01
|
25.5
|
||||||
|
-QZT2-SK-6mm
|
0.24
|
6
|
0.19
|
4.8
|
1.2
|
30
|
||||||
|
-QZT2-SK-8mm
|
0.31
|
8
|
0.19
|
4.8
|
1.23
|
31.2
|
||||||
|
-QZT2-SK-10mm
|
0.39
|
10
|
0.28
|
7.1
|
1.45
|
36.5
|
||||||
|
-QZT2-SK-12mm
|
0.47
|
12
|
0.41
|
10.3
|
1.74
|
44.2
|
||||||
|
Order information
|
B
|
|
C
|
|
D
|
|
|||
|
|
(in)
|
(mm)
|
(in)
|
(mm)
|
(in)
|
(mm)
|
|||
|
-QZT2-SK-2
|
1.01
|
25.5
|
1.36
|
34.5
|
0.59
|
15.1
|
|||
|
-QZT2-SK-3
|
1.1
|
28
|
1.36
|
34.5
|
0.59
|
15.1
|
|||
|
-QZT2-SK-4
|
1.2
|
30
|
1.47
|
37.3
|
0.78
|
19.8
|
|||
|
-QZT2-SK-6
|
1.45
|
36.5
|
2.07
|
52.5
|
1.13
|
28.7
|
|||
|
-QZT2-SK-8
|
1.74
|
44.2
|
2.44
|
62
|
1.5
|
38.1
|
|||
|
-QZT2-SK-3mm
|
1.01
|
25.5
|
1.36
|
34.5
|
0.59
|
15.1
|
|||
|
-QZT2-SK-6mm
|
1.2
|
30
|
1.47
|
37.3
|
0.59
|
15.1
|
|||
|
-QZT2-SK-8mm
|
1.23
|
31.2
|
1.47
|
37.3
|
0.78
|
19.8
|
|||
|
-QZT2-SK-10mm
|
1.45
|
36.5
|
2.07
|
52.5
|
1.13
|
28.7
|
|||
|
-QZT2-SK-12mm
|
1.74
|
44.2
|
2.44
|
62
|
1.5
|
38.1
|
|||
|
Order information
|
E
|
|
W
|
|
F
|
|
Cv
|
|||
|
|
(in)
|
(mm)
|
(in)
|
(mm)
|
(in)
|
(mm)
|
|
|||
|
-QZT2-SK-2
|
1/4
|
6.4
|
1.26
|
32
|
0.58
|
14.7
|
0.15
|
|||
|
-QZT2-SK-3
|
1/4
|
6.4
|
1.26
|
32
|
0.58
|
14.7
|
0.35
|
|||
|
-QZT2-SK-4
|
1/4
|
6.4
|
1.26
|
32
|
0.78
|
19.8
|
0.9
|
|||
|
-QZT2-SK-6
|
3/8
|
9.7
|
1.5
|
38.1
|
1.12
|
28.5
|
2
|
|||
|
-QZT2-SK-8
|
3/8
|
9.7
|
2.36
|
60
|
1.5
|
38
|
4.6
|
|||
|
-QZT2-SK-3mm
|
1/4
|
6.4
|
1.26
|
32
|
0.58
|
14.7
|
0.15
|
|||
|
-QZT2-SK-6mm
|
1/4
|
6.4
|
1.26
|
32
|
0.78
|
19.8
|
0.9
|
|||
|
-QZT2-SK-8mm
|
1/4
|
9.7
|
1.5
|
38.1
|
0.78
|
19.8
|
0.9
|
|||
|
-QZT2-SK-10mm
|
3/8
|
9.7
|
1.7
|
43
|
1.12
|
28.5
|
2
|
|||
|
-QZT2-SK-12mm
|
3/8
|
9.7
|
2.36
|
60
|
1.5
|
38
|
4.6
|
|||
Our Services
|
Sinya tries to get the satisfaction of all users by providing Premium Quality products and services in the field of Instrumentation tube fitting & valves ,and also providing an appropriate combination of price, quality, satisfying services and fast delivery.
Its products are provided based on three fundamental factors: 1) Quality 2) Variety 3) Reliability |
|
|
|
|
||||
|
1.Custom design, CAD drawing
|
|
|
|
|
||||
|
2.P&ID
|
|
|
|
|
||||
|
3.Component selection
|
|
|
|
|
||||
|
4.Bill of material
|
|
|
|
|
||||
|
5.Professional services such as bending and welding
|
|
|
|
|
||||
|
6.Testing to guarantee the system
|
|
|
|
|
||||
|
7.Professional packaging and delivery
|
|
|
|
|
||||
Products Display
|
Contact us to get more information :
|
|
|
|
|
||||
|
Tube Fittings
|
Check Valves
|
Manifolds Valves
|
In-line Filters
|
Thermowells
|
||||
|
Pipe Fittings
|
Relief Valves
|
Distribution Manifolds
|
Instrumentation Tubing
|
Syphons
|
||||
|
Needle Valves
|
Air Headers
|
Bleed & Purge valves
|
Sample Cylinders
|
Tube Clamps
|
||||
|
Ball valves
|
Gauge Valves
|
T-type Filters
|
Pots and Vessels
|
|
||||
Packaging & Delivery
|
Mode of packing:
|
Export standard package or as your detail request.
|
|
|
|
|
||||
|
Delivery time:
|
2 weeks after receipt of payment
|
|
|
|
|
||||
|
Mode of shipment:
|
By Express like DHL,Fedex,TNT Ups.
|
|
|
|
|
||||
Our Company
|
1.Established in 1995.
|
|
|
|
|
||||
|
2.We are professional manufacturer of Instrumentation Tube Fittings, Pipe Fittings, Needle valves, Ball Valves, Check Valves, Manifold Valves, DIN 2353 Fittings, Sampling systems, Water Heater Accessories.
|
|
|
|
|
||||
|
3.Products are available in the variety of different materials, such as Stainless steel 316/316L, Duplex, Super Duplex, Hastelloy, Monel, Inconel, Incoloy, Titanium, Zirconium.
|
|
|
|
|
||||
|
4.We located in Zhenjiang City, near shanghai port with convenient transportation access worldwide.
|
|
|
|
|
||||
|
5.Our products are widely used in industries of Chemical, Petrochemical, Power Generation, Oil, Gas, Shipbuilding.
|
|
|
|
|
||||
|
6.Always available to discuss your requirements and ensure full customer satisfaction.
|
|
|
|
|
||||
|
7.We have Japanese Mazak CNC machine, 3D measure equipment, Raw Material chemical composition inspection equipment, High pressure test equipment, etc.
|
|
|
|
|
||||
|
8.We have obtained ISO9001 certificate, CE Certificate.
|
|
|
|
|
||||
|
9.Our products are exported to Middle east, North America, South America, South East Asia, Europe and other countries.
|
|
|
|
|
||||
|
10.We also welcome OEM and ODM orders. Please feel free to contact and visit us.
|
|
|
|
|
||||
