Quick Details
-
Brand Name:
-
PEK
-
Product name:
-
Gear Rack Pinion for linear motion CNC machine Helical Tooth
-
After Warranty Service:
-
Spare parts
-
Surface:
-
Grinding or Milling
-
Length:
-
Customized length
-
Heat Treatment:
-
High-frequency or thermal refined
-
Precision:
-
0.02mm each 1000mm
-
Module:
-
M1.25 M1.5 M2 M3
-
Tooth Profile:
-
Helical Teeth
-
Color:
-
Black/Silver
Quick Details
-
Weight (KG):
-
5
-
Place of Origin:
-
Shandong, China
-
Model Number:
-
SSGH SHFQ
-
Brand Name:
-
PEK
-
Product name:
-
Gear Rack Pinion for linear motion CNC machine Helical Tooth
-
After Warranty Service:
-
Spare parts
-
Surface:
-
Grinding or Milling
-
Length:
-
Customized length
-
Heat Treatment:
-
High-frequency or thermal refined
-
Precision:
-
0.02mm each 1000mm
-
Module:
-
M1.25 M1.5 M2 M3
-
Tooth Profile:
-
Helical Teeth
-
Color:
-
Black/Silver
Product Description

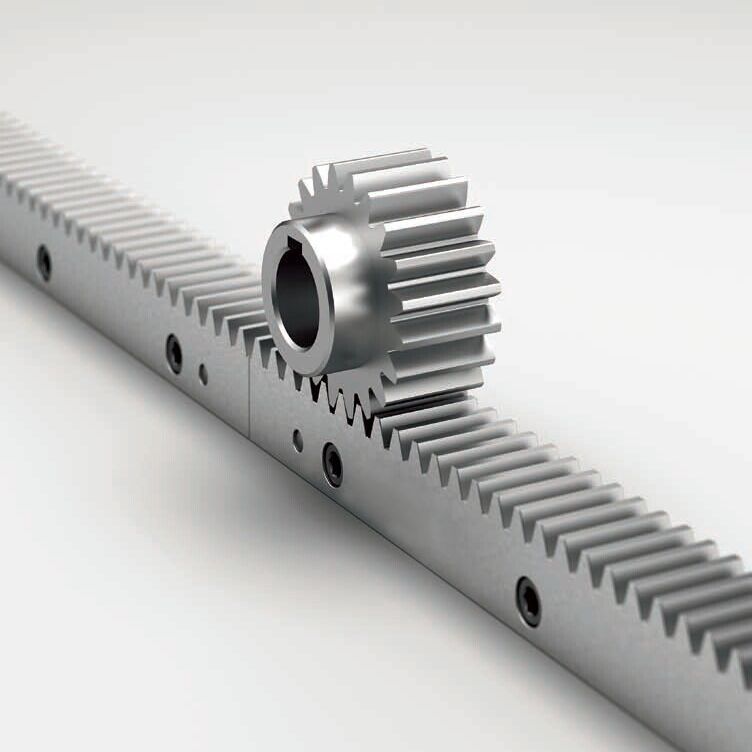

Gear Rack Pinion for linear motion CNC machine Helical Tooth Rack and Pinion Gear
|
Product Name
|
Gear Rack Pinion for linear motion CNC machine Helical Tooth Rack and Pinion Gear
|
|
|
|
|||
|
Type
|
Grinding Milling
|
|
|
|
|||
|
Module Number:
|
M1 1.25 1.5 2 3 4 5 6 8 10
|
|
|
|
|||
|
Standard
|
ISO, DIN, ANSI, JIS, BS and Non-standard.
|
|
|
|
|||
|
Heat Treatment:
|
Tooth surface induction hardened
|
|
|
|
|||
|
OEM & ODM Availability
|
Yes
|
|
|
|
|||
Advantages:
There is standard gear rack available and also special gear rack as per your drawing or samples. Our precision spur helical gear racks are welcomed by many customers for its stable high quality and competitive price.
1. Gear rack length: the longest is 4000mm without joint. It can be jointed to any length.
2. Surface: chromium plating,zinc (galvanized), black, quenching and tempering etc.
3. Quality: stable and high: accumulated tolerance 0.1mm per 1000mm for normal quality;Accumulated tolerance 0.02mm per 1000mm for 4 sides ground.Prices for above quality are very competitive for us.
4.Heat treatment: Tooth hardness can be hardened to HRC 40-55.
Specification
Rack and Pinion SSGH Series
Rack and Pinion SHFQ Series
Best Choice
Why choose us?
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: How can I get a sample to check your quality ?
A: After price confirmed, sample order is availabled to check our quality. we could offer the sample for free charge but do not pay the cost of freight.
Q: What is the payment team?
A: T/T, L/C at sight, PayPal, etc.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance, balance before shipment.
