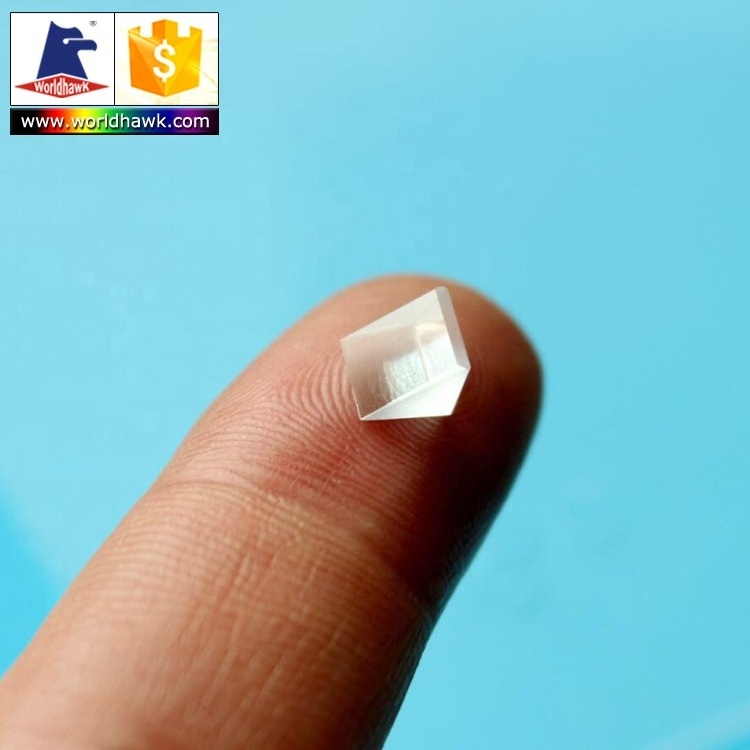

5mm glass right angle prism and mini prism

5mm glass right angle prism and mini prism

FOB Reference Price: Get Latest Price

≥20 Pieces

US $11.9

≥500 Pieces

US $5.5

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Flatness:: 1/4 Lambda OR 2 Lambda

Warranty:: 3 month

Place of Origin:: Jilin, China

Brand Name:: Worldhawk

Model Number:: WH-PR

Product Name:: Optical right angle prisms

Dimension (mm):: 3mm-180mm

Dimension tolerance:: ±0.2mm

Clear Aperture:: ≥90%

Surface Accuracy:: 1/4 lambda or 2 lambda

Bevel:: <0.2mm@45°

Coating:: Mirroring coating or AR coating

Quick Details

Material:: N-BK7, UV Fused Silica, CaF2, ZnSe, or Ge etc.

Dimension Tolerance:: ±0.2mm

Angle Tolerance:: +/- 2 arc seconds, +/- 2 arc seconds

Flatness:: 1/4 Lambda OR 2 Lambda

Warranty:: 3 month

Place of Origin:: Jilin, China

Brand Name:: Worldhawk

Model Number:: WH-PR

Product Name:: Optical right angle prisms

Dimension (mm):: 3mm-180mm

Dimension tolerance:: ±0.2mm

Clear Aperture:: ≥90%

Surface Accuracy:: 1/4 lambda or 2 lambda

Bevel:: <0.2mm@45°

Coating:: Mirroring coating or AR coating

Prism Parameters

+ 5mm glass right angle prism and mini prism

Right angle prisms are extremely versatile optical components, commonly used as individual prisms and components of optical assemblies.
Right angle prisms are optical elements having at least three polished faces inclined relative to each other at 45-90-45 degrees. They can be used as total internal reflectors, hypotenuse face reflectors, retroreflectors and 90 degrees beam benders.
Various HR or AR coatings are available specified in the Coatings section. Custom fabrication also available: coating, cutting, edging, drilling according to your specification.
Substrate options include N-BK7, H-K9L UV Fused Silica, N-SF11, Calcium Fluoride (CaF2), Germanium (Ge), or Zinc Selenide (ZnSe).

A: To deviate the light path by 90° or 180°.
B: Used in Telescope, Periscope, Microscopy, Medical Instrument and other optical system.

+ General Parameters ( mini prisms )

	Standard	High Pricision
Material	N-BK7, Fused Silica, Custom
Size	0.5mm, 5mm to 380mm
Size tolerance	±0.1mm	±0.03mm
Angle Tolerance	<3'	<0.5''
Clear Aperture	≥90%	100%
Surface Quality	60/40, 40/20	20/10, 10/5
Surface Flatness	1/2 lambda, 1/4lambda	1/10Lambda, 1/20Lambda
Parallelism	+/-3' , +/-30''	<0.5''
Bevel	<0.2mm±45°	No Bevel (The Angle is unbroken)
Coating	Uncoated, AR, BBAR, Reflective

Customize
You can customise this product to your needs, please contact us for custom solution.

[ Click here to get quotes ]

+ Processing Equipment:

+ Other Optical Prisms
Prisms are widely used in optical system, which can reflect, deviate and rotate beams of light as well as dispersing their wavelengths.
Worldhawk offers many types of high precision prisms including Right Angle Prisms, Dove Prisms, Panta Prisms, Roof Prisms, Beamsplitters, Wedge Prisms, Rhomboid Prisms, Corner Cube etc..,
Worldhawk accepts the following products customized services: micro-prism, special angle prism, high-precision prism ......
Please email to sales at worldhawk.com for get an offer.

We accept high-precision and small quantities of custom prism services.

Click on the image above to get more product information!

Testing / Production

+ Inspection

Advanced testing equipment and methods are important guarantee for the production of high-precision products.

+ Our Factory

Advanced processing equipment and complete production system are ensure that we can effectively control every aspect of the product process to ensure product quality, and reduce losses and reduce costs!

Company / Catalogue

+ Company

Changchun Worldhawk Optoelectronics Co., Ltd, established in 2010 in China Optical City - Changchun, we have three branches in Changchun, Nanjing and Hong Kong.

Worldhawk is the professional supplier for the optical products with much experience in optics design, research and development, manufacturing and export. We have many experienced engineers and many skilled workers, they are the important guarantee for the higher quality products. We can ensure higher qualified rate because of the precision testing equipment.

We can provide all kinds of optical products processing, coating service, assembling the lens and high-altitude monitoring quipment and so on. We consider our customer relationship to be a valuable asset, We understand that your application is not standard and so we offer customization of all of our products.
