Quick Details
-
Positioning Accuracy (mm):
-
0.05 mm
-
Travel (X Axis)(mm):
-
600 mm
-
Travel (Y Axis)(mm):
-
900 mm
-
Repeatability (X/Y/Z) (mm):
-
0.05 mm
-
Spindle Motor Power(kW):
-
4.5
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
TIANJIAO
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
600*900*200MM
-
Power (kW):
-
9
-
Weight (KG):
-
180
-
Product name:
-
CNC Wood Working Machine 6090
-
Control system:
-
Ncstudio
-
Spindle:
-
1.5 Kw Water Cooling Spindle
-
Working area:
-
600X900X150mm
-
Motor:
-
Stepper
-
Transmission:
-
Ball Screw
-
Keywords:
-
Cnc Wood Router Engraver
-
Application:
-
Wood Acrylic PVC Engraving Cutting
-
Spindle power:
-
1.5kw/2.2kw/3kw/4.5kw
-
Software:
-
Ucancam / ArtCam/TYPE3
Quick Details
-
Working Table Size(mm):
-
600×900
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
1000 - 18000 rpm
-
Positioning Accuracy (mm):
-
0.05 mm
-
Travel (X Axis)(mm):
-
600 mm
-
Travel (Y Axis)(mm):
-
900 mm
-
Repeatability (X/Y/Z) (mm):
-
0.05 mm
-
Spindle Motor Power(kW):
-
4.5
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
TIANJIAO
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
600*900*200MM
-
Power (kW):
-
9
-
Weight (KG):
-
180
-
Product name:
-
CNC Wood Working Machine 6090
-
Control system:
-
Ncstudio
-
Spindle:
-
1.5 Kw Water Cooling Spindle
-
Working area:
-
600X900X150mm
-
Motor:
-
Stepper
-
Transmission:
-
Ball Screw
-
Keywords:
-
Cnc Wood Router Engraver
-
Application:
-
Wood Acrylic PVC Engraving Cutting
-
Spindle power:
-
1.5kw/2.2kw/3kw/4.5kw
-
Software:
-
Ucancam / ArtCam/TYPE3

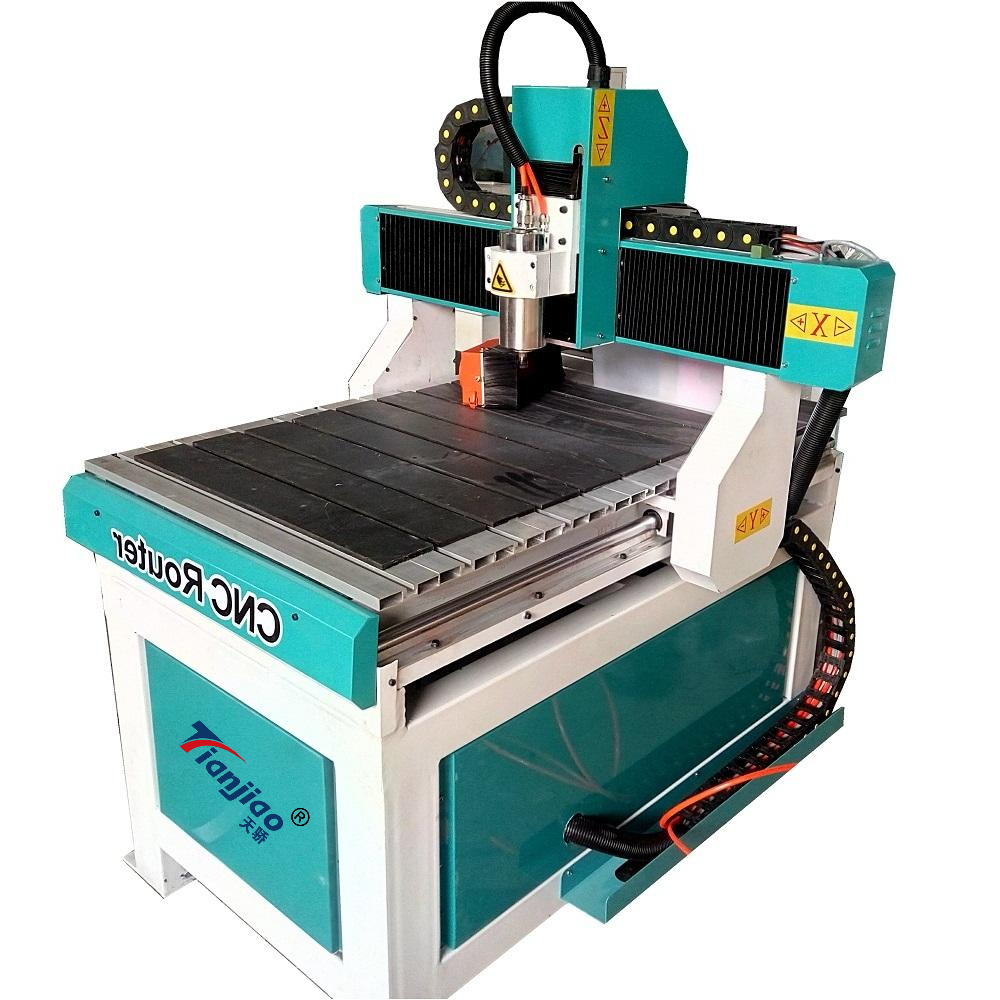

TJ-6090 Cutting Machine with block cast lathe bed and wide application
S
PECIFICATIONS:
1. Structure: Integral cast frame, solidity and stable.
2. Accuracy: Adopt Round Rail (Square optional) and imported high accuracy ball screw to ensure more stable movement and high accuracy.
3. Appearance: Aluminum decorative appearance, beautiful design and then makes
the whole machine magnificently.
4. Spindle: Advanced water-cooling brushless spindle, low noise, more power, long-time mass processing.
5. Design: It adopt several kinds of electrical parts with good design to minimize the failure ratio.
6.
Multi-functions: It can support ArtCAM/ Ucancam and several kinds of CAD/CAM design software.
APPLICATION:
This machine is widely used in advertising industry, such as sign making, breast card, office board ,ruler, art crafts, small metal sign plate, construction models and so on.
Efficient manufacturing of wooden products, advertising billboard, acrylic cutting, letter mold form-ling and mass cutting. Also the machine can engrave on iron, brass, aluminum, plastic and wood boards and other non-metal materials.
O ur company Patented products of the latest design
TJ-1220 cnc wood lathe center machine:
