Quick Details
-
Model Number:
-
RD-3082V
-
Place of Origin:
-
GUA
-
Type:
-
POE Switch
-
Power Input:
-
AC 100-240V, 50/60Hz
-
PoE Standard:
-
PoE IEEE 802.3af/at
-
PoE Ports:
-
8 Port 100M PoE
-
Uplink Ports:
-
2 Port 100M RJ45 Uplink
-
PoE Power:
-
120W
-
Working Temperature:
-
-10~50°C
-
MTBF:
-
100000 hour
-
Product Dimension:
-
200*118*44mm
-
G.W:
-
0.89kg
Quick Details
-
Transmission Rate:
-
10/100/1000Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Brand Name:
-
SERATLINK
-
Model Number:
-
RD-3082V
-
Place of Origin:
-
GUA
-
Type:
-
POE Switch
-
Power Input:
-
AC 100-240V, 50/60Hz
-
PoE Standard:
-
PoE IEEE 802.3af/at
-
PoE Ports:
-
8 Port 100M PoE
-
Uplink Ports:
-
2 Port 100M RJ45 Uplink
-
PoE Power:
-
120W
-
Working Temperature:
-
-10~50°C
-
MTBF:
-
100000 hour
-
Product Dimension:
-
200*118*44mm
-
G.W:
-
0.89kg
About POE SWITCH

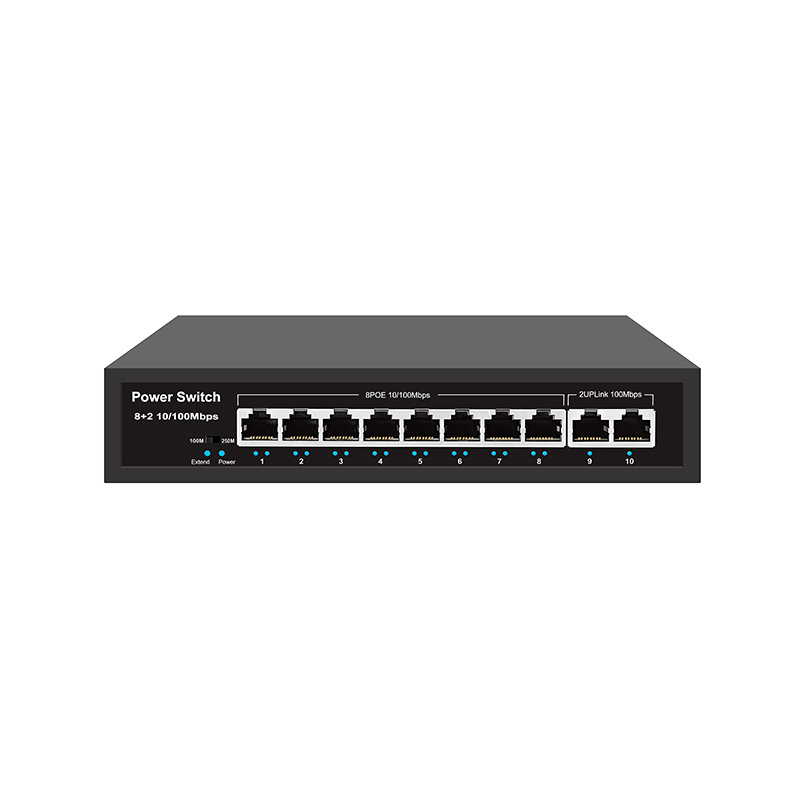

This is a standard PoE switch, designed and developed independently by SERATLINK to meet the needs of the network power supply. It adopts the latest high-speed Ethernet switching chip, ultra-high backplane bandwidth design, and has extremely fast data processing capabilities to improve smooth data transmission performance, With PoE ports and uplink RJ45 ports. Among them, all RJ45 ports support network cable power supply. it's suitable for Hikvision, Dahua and other brands with IEEE802.3af/at PoE powered devices(PD)
|
Model
|
POE
|
Uplink
|
Total Power
|
VLAN
|
Extend
|
|
RD-3082V
|
8*100M
|
2*100M
|
120W
|
yes
|
yes
|
【 Specification 】
Feature：
1.8*10/100M POE ports + 2* 10/100M Ethernet Uplink ports；
2.Comply with IEEE 802.3, IEEE 802.3u, IEEE802.3af/at standards；
3.Ethernet port supports 10/100M adaptive and POE functions；
4.Flow control mode: full-duplex adopts IEEE 802.3x standard, half-duplex adopts Back pressure standard；
5.Support port auto flip (Auto MDI/MDIX)；
6.Automatically supplied to adaptive devices；
7.Panel indicator monitoring status and help failure analysis；
8.Support for VLAN mode, Normal mode and Extend mode；
|
Ethernet
|
8 Port 100M PoE 2 Port 100M RJ45 Uplink
|
|
Switching Capacity
|
2Gbps
|
|
Throughput
|
1.488Mpps
|
|
Packet Buffer
|
448K
|
|
MAC Address
|
2K
|
|
Jumbo Frame
|
2048bytes
|
|
Transfer Mode
|
Store and forward
|
|
MTBF
|
100000 hour
|
|
Network protocol
|
IEEE802.3 (10Base-T)
IEEE802.3u (100Base-TX) IEEE802.3x (Flow control) |
|
PoE Protocol
|
IEEE802.3af （15.4W）
IEEE802.3at （30W） |
|
Industry Standard
|
EMI: FCC Part 15 CISPR (EN55032) class A
EMS: EN61000-4-2 (ESD)、 EN61000-4-4 (EFT) EN61000-4-5 (Surge) |
|
Network Medium
|
10Base-T : Cat3、4、5 or above UTP(≤100m)
100Base-TX : Cat5 or above UTP(≤100m) |
|
Working Environment
|
Working Temperature：-10~50°C
Storage Temperature：-40~70°C Working Humidity ：10%~90%，non-condensing Storage Temperature：5%~90%，non-condensing |
|
LED Indicators
|
PWR（power supply），SW（DIP），1-10 Green（Link&Data）
|
|
DIP Switch
|
VLAN：Port isolation mode. In this mode, the PoE ports (1-8) of the switch cannot communicate with each other, and can only communicate with the UP-link port.
Normal: Normal mode, all port can communicate with each other, the transmission distance is within 100 meters, the transmission rate is 10M / 100M adaptive; Extend：Link extension mode, 1-8 ports PoE power supply and data transmission distance can be extended to 250 meters, the transmission rate becomes 10M; |
|
Power Voltage
|
Input Voltage ：AC 100-240 V
|
|
Package List
|
Switch 1 pcs, Power cord 1 pcs, User manual 1 pc, Certification 1 pc
|
