Quick Details
-
Warranty:
-
20years
-
Certification:
-
CE
-
Output Voltage:
-
48V/96V/120V/220V
-
rotor diameter:
-
3.2m
-
Start wind speed:
-
3 m/s
-
Product name:
-
wind turbine
-
Application:
-
Wind Power System
-
Rated Power:
-
2500W
-
Generator type:
-
3 phases Permanent Magnetism Synchronization Generator
-
Rated Voltage:
-
48V/96V/120V/220V
-
Keywords:
-
Wind Electricity Generator
-
Wind turbine type:
-
Horizontal
-
Start-up wind speed:
-
2.5m/s
-
Rated wind speed:
-
11m/s
-
Blade Material:
-
Reinforced Glass Fiber
Quick Details
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
Sunway
-
Model Number:
-
SW-2000L2
-
Warranty:
-
20years
-
Certification:
-
CE
-
Output Voltage:
-
48V/96V/120V/220V
-
rotor diameter:
-
3.2m
-
Start wind speed:
-
3 m/s
-
Product name:
-
wind turbine
-
Application:
-
Wind Power System
-
Rated Power:
-
2500W
-
Generator type:
-
3 phases Permanent Magnetism Synchronization Generator
-
Rated Voltage:
-
48V/96V/120V/220V
-
Keywords:
-
Wind Electricity Generator
-
Wind turbine type:
-
Horizontal
-
Start-up wind speed:
-
2.5m/s
-
Rated wind speed:
-
11m/s
-
Blade Material:
-
Reinforced Glass Fiber
Wind turbine produce unstable three phase AC, solar panel produce unstable DC, and send to the CPU in the controller, the controller have rectify functions, it will rectify the unstable AC and DC to stable DC, so the battery can save the electricity.Through the off grid inverter to transfer the DC to AC, the battery can be send to the household equipments.
Product Description

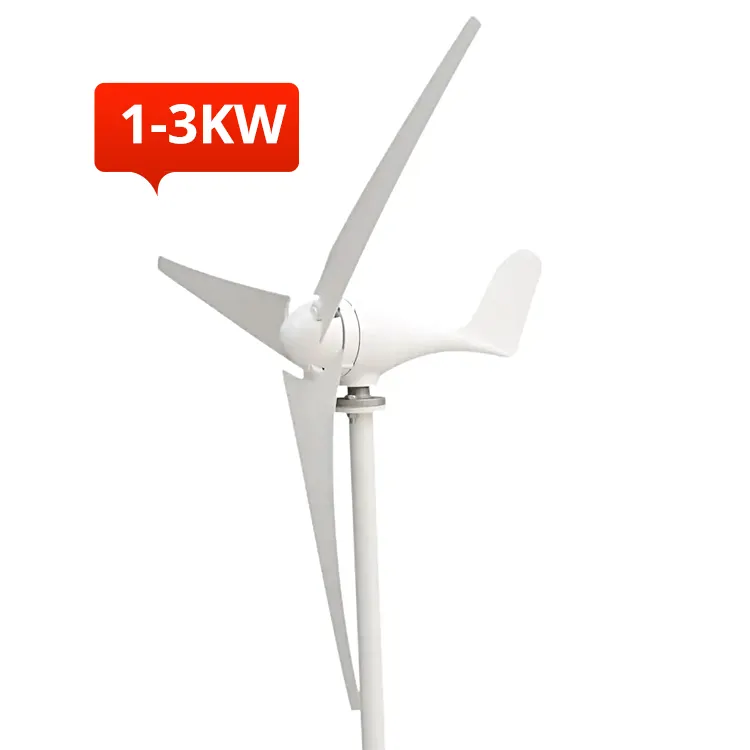

A wind turbine is a device that converts the kinetic energy of the wind into mechanical energy, which can be used to generate electricity. Wind turbines consist of several key components, including the rotor, the generator, the gearbox, and the tower.
Wind Turbine Features:
1.Low start-up speed, high wind power utilization, light, cute, low vibration.
2.Human-friendly design, easy to install and maintain.
3.Blades using Nylon fiber, helped with optimized structure and aerodynamic shape, it enhanced wind power coefficient and power generating capacity.
4.Using patented permanent magnet rotor AC generator and special stator, it effectively reduces torque resistance, makes wind turbines and generators have more good matching characteristic and guarantees the stability.
1.Low start-up speed, high wind power utilization, light, cute, low vibration.
2.Human-friendly design, easy to install and maintain.
3.Blades using Nylon fiber, helped with optimized structure and aerodynamic shape, it enhanced wind power coefficient and power generating capacity.
4.Using patented permanent magnet rotor AC generator and special stator, it effectively reduces torque resistance, makes wind turbines and generators have more good matching characteristic and guarantees the stability.
Product Parameter
|
Model
|
SW-1000L
|
SW-1500L
|
SW-2000L
|
SW-2500L2
|
SW-3000L2
|
||||
|
Power(W)
|
1000
|
1500
|
2000
|
2500
|
3000
|
||||
|
Max power(W)
|
1200
|
1700
|
2500
|
2700
|
3200
|
||||
|
Rated voltage(V)
|
48v/96v/120v/220v
|
|
|
|
|
||||
|
Start up speed(m/s)
|
2.5
|
2.5
|
2.5
|
2.5
|
2.5
|
||||
|
Rated wind speed(m/s)
|
11
|
11
|
11
|
11
|
12
|
||||
|
Survival wind speed(m/s)
|
50
|
50
|
50
|
45
|
45
|
||||
|
Wheel diameter(m)
|
2.6
|
2.88
|
3.2
|
3.4
|
3.7
|
||||
|
Wind turbine net weight(kg)
|
51
|
55
|
58
|
90
|
95
|
||||
|
Number of blades
|
3
|
|
|
|
|
||||
|
Blades material
|
reinforced glass fiber
|
|
|
|
|
||||
|
Generator
|
Three-phase AC permanent magnet synchronous generator
|
|
|
|
|
||||
|
Magnetmaterial
|
NdFeB
|
|
|
|
|
||||
|
Control system
|
Electromagnet
|
|
|
|
|
||||
|
Speed regulation
|
Automatically adjust windward direction
|
|
|
|
|
||||
|
Working temperature
|
-40°C-80°C
|
|
|
|
|
||||
|
Design life
|
20 years
|
|
|
|
|
||||
Application
Product Packaging
If you purchase wind generator from us, wind turbine will be packed with wooden;
If you purchase solar and wind hybrid system from us, wind generator packed with wooden,controller and inverter will be packed with carton, solar panel will be packed with pallet.
