Quick Details
-
Storage Type:
-
Normal Temperature Storage
-
The charging ratio:
-
I20
-
The discharge rate:
-
10HR
-
Warranty:
-
1 Year, 1 year
-
Battery Size:
-
50AH 12V
-
Brand Name:
-
Techfine
-
Model Number:
-
DC50-12
-
Place of Origin:
-
Guangdong, China
-
Weight:
-
15.3
-
Battery type:
-
Deep Cycle Battery
-
Voltage:
-
12V
-
capacity:
-
50AH
-
Container Material:
-
ABS
-
Features:
-
Maintenance-free Lead-acid Batteries
-
Design life:
-
8-10 Years
-
Usage:
-
UPS, Solar, Wind
-
Certification:
-
ISO,CE, MSDS, CNAS, CE
-
OEM:
-
Accepted
Quick Details
-
Chargeable:
-
Yes
-
Battery Type:
-
Deep Cycle: Sealed AGM
-
Cycle Life:
-
1800 TIMES
-
Storage Type:
-
Normal Temperature Storage
-
The charging ratio:
-
I20
-
The discharge rate:
-
10HR
-
Warranty:
-
1 Year, 1 year
-
Battery Size:
-
50AH 12V
-
Brand Name:
-
Techfine
-
Model Number:
-
DC50-12
-
Place of Origin:
-
Guangdong, China
-
Weight:
-
15.3
-
Battery type:
-
Deep Cycle Battery
-
Voltage:
-
12V
-
capacity:
-
50AH
-
Container Material:
-
ABS
-
Features:
-
Maintenance-free Lead-acid Batteries
-
Design life:
-
8-10 Years
-
Usage:
-
UPS, Solar, Wind
-
Certification:
-
ISO,CE, MSDS, CNAS, CE
-
OEM:
-
Accepted
Why Choose Us
Products Details

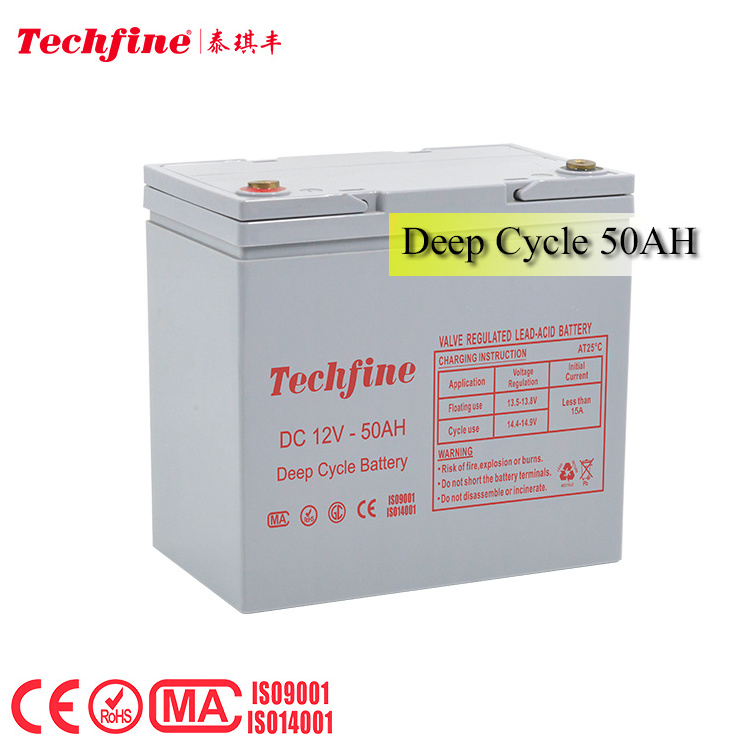

Product Parameters
|
Nominal Voltage
|
12V
|
|
|
|
Nominal Capacity(10HR)
|
50AH
|
|
|
|
Dimension
|
Length
|
230 ±3mm (9.06 inches)
|
|
|
|
Width
|
138 ±2mm (5.43inches)
|
|
|
|
Container Height
|
210 ±2mm (8.27inches)
|
|
|
|
Total Height (withTerminal)
|
215 ±2mm (8.46inches)
|
|
|
Approx Weight
|
Approx 15.3 kg (33.73lbs)
|
|
|
|
Terminal
|
T9
|
|
|
|
Container Material
|
ABS
|
|
|
|
Rated Capacity
|
57.7 AH/2.89A
|
(20hr ,1.80V/cell,25℃/77℉)
|
|
|
|
55.0 AH/5.50A
|
(10hr,1.80V/cell,25℃/77℉)
|
|
|
|
46.7 AH/9.35A
|
(5hr,1.75V/cell,25℃/77℉)
|
|
|
|
32.7 AH/16.9A
|
(3hr,1.75V/cell,25℃/77℉)
|
|
|
|
30.2 AH/30.2A
|
(1hr,1.60V/cell,25℃/77℉)
|
|
|
Max. Discharge Current
|
600A (5s)
|
|
|
|
Internal Resistance
|
Approx 8.3 mΩ
|
|
|
|
Operating Temp.Range
|
Discharge : -15~50℃ (5~122℉)
|
|
|
|
|
Charge : 0~40℃ (32~104℉)
|
|
|
|
|
Aircraft signal Storage : -15~40℃ (5~104℉)
|
|
|
|
Nominal Operating Temp. Range
|
25 ±3℃ (77 ±5℉ )
|
|
|
|
Cycle Use
|
Initial Charging Current less than 15.0A.Voltage Communication power supply 14.4V~15.0V at 25℃(77℉)Temp. Coefficient -30mV/℃
|
|
|
|
Standby Use
|
No limit on Initial Charging Current Voltage Auto controlsystem 13.5V~13.8V at 25℃(77℉)Temp. Coefficient -20mV/℃
|
|
|
|
Capacity affectedby Temperature
|
40℃ (104 ℉)103%
|
|
|
|
|
25℃ ( 77 ℉ )100%
|
|
|
|
|
0℃ ( 32℉ ) 86%
|
|
|
|
Self Discharge
|
Techfine batteries may be stored for up to 6 months at 25℃(77℉) and battery should be recharge before use . For higher
temperatures the time interval will be shorter. |
|
|
