Quick Details
-
Brand Name:
-
UOP
-
Product name:
-

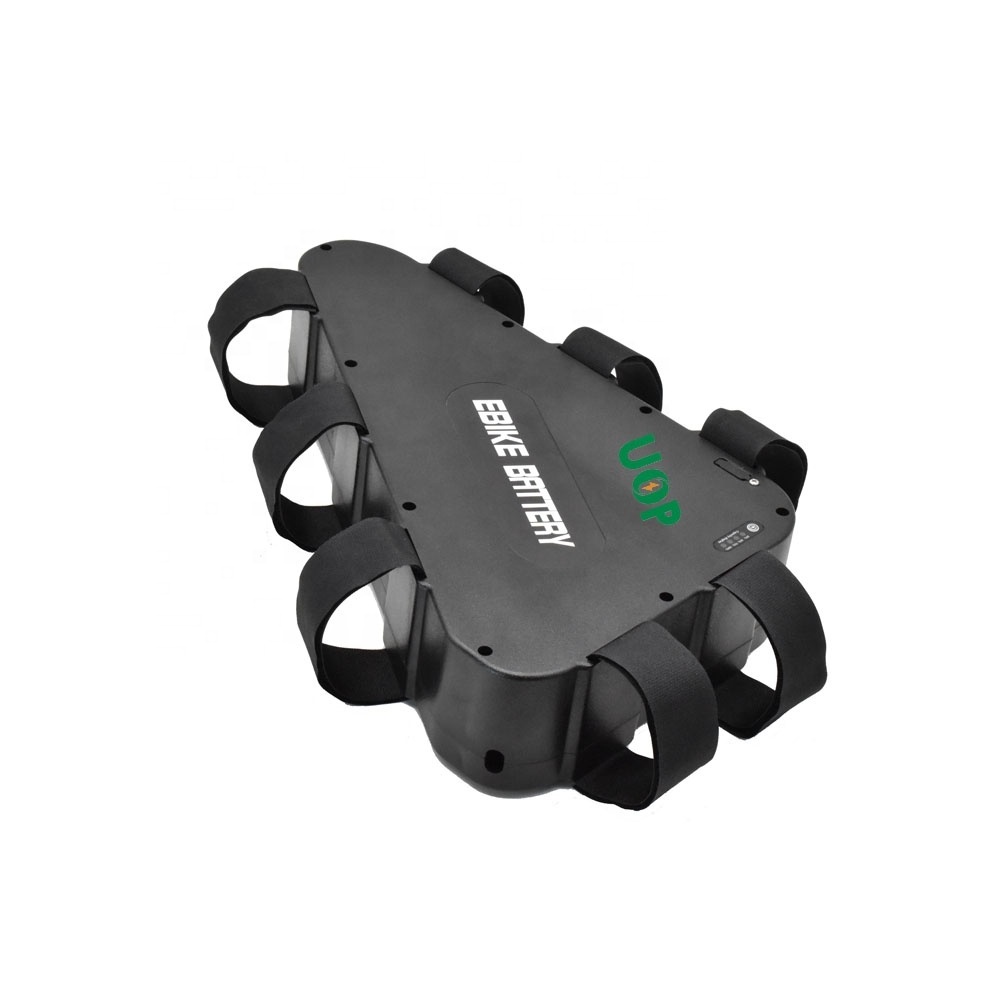

High Capacity E bike Lithium Battery Pack Electric Bicycle Battery
-
Cycle Life:
-
≥800times
-
Nominal Capacity(Ah):
-
20Ah
-
Battery Type:
-
18650 2600mAh li ion cell
-
Combination:
-
13S 8P
-
Color:
-
Blue PVC
-
Weight:
-
About 6kg
-
Size:
-
395*355*225*75MM
-
Warranty:
-
12months
-
MOQ:
-
1pcs
Quick Details
-
Type:
-
Lithium battery
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
UOP-4820T
-
Brand Name:
-
UOP
-
Product name:
-
High Capacity E bike Lithium Battery Pack Electric Bicycle Battery
-
Cycle Life:
-
≥800times
-
Nominal Capacity(Ah):
-
20Ah
-
Battery Type:
-
18650 2600mAh li ion cell
-
Combination:
-
13S 8P
-
Color:
-
Blue PVC
-
Weight:
-
About 6kg
-
Size:
-
395*355*225*75MM
-
Warranty:
-
12months
-
MOQ:
-
1pcs
Specification
|
Item
|
Parameters
|
|
|
||
|
Nominal Voltage
|
48V
|
|
|
||
|
Nominal Capacity
|
20Ah(can be customized)
|
|
|
||
|
Discharge
|
normal current
|
|
1C
|
||
|
|
Max continuous current
|
|
2C (≤5min)
|
||
|
|
cut-off voltage
|
|
35.7V
|
||
|
Charge
|
normal charge current
|
|
0.5C
|
||
|
|
Charge mode
|
|
CC/CV with professional charger
|
||
|
|
cut-off voltage
|
|
54.6±0.1V
|
||
|
Inner Resistance
|
|
|
≤80mΩ
|
||
|
|
Discharging Inner resistance
|
|
|
||
|
Charge Temperature
|
0℃~+45℃
|
When the environment temperature is higher than 45℃,please pay attention to ventilation and heat rejection.
|
|
||
|
Discharge Temperature
|
-20℃~+60℃
|
|
|
||
|
Humidity Range
|
RH≤85%
|
|
|
||
|
Protection Function
|
Over charge protection,Over discharge protection,Over current protection,Balanced function
|
|
|
||
|
Shell Material
|
Blue PVC
|
|
|
||
|
Weight
|
5.5±0.1kg
|
|
|
||
|
Dimension(L*W*H)
|
395*355*225*75MM
|
|
|
||
|
Cycle Life
|
Standard charge at 0.2C(A), rest 0.5~1 h,discharge at 0.2C to cut off voltage,rest 0.5~1h,repeat the above steps until 500
cycles.( capacity retention rate≥80%) |
|
|
||
Product Instructions
Other models available for this shape battery
|
Model
|
Combination
|
Cell
|
BMS
|
Charger
|
|
48V 15.6Ah
|
13S6P
|
A grade 2600mAh 18650 cell
|
20-30A
|
3A
|
|
48V 18Ah
|
13S7P
|
A grade 2600mAh 18650 cell
|
20-30A
|
3A
|
|
48V 20Ah
|
13S8P
|
A grade 2600mAh 18650 cell
|
20-30A
|
3A
|
|
48V 24Ah
|
13S8P
|
A grade 2900mAh 18650 cell
|
20-40A
|
5A
|
|
48V 25.6Ah
|
13S8P
|
A grade 3200mAh 18650 cell
|
20-40A
|
5A
|
|
48V 27.2Ah
|
13S8P
|
Panasonic 3400mAh 18650 cell
|
20-40A
|
5A
|
|
48V 28Ah
|
13S8P
|
LG 3500
|
20-40A
|
5A
|
|
52V 15.6Ah
|
14S6P
|
A grade 2600mAh
|
20-30A
|
3A
|
|
52V 18Ah
|
14S7P
|
A grade 2600mAh
|
20-30A
|
3A
|
|
52V 20Ah
|
14S8P
|
A grade 2600mAh
|
20-30A
|
3A
|
|
52V 24Ah
|
14S8P
|
A grade 2900mAh
|
20-40A
|
5A
|
|
52V 25.6Ah
|
14S8P
|
A grade 3200mAh
|
20-40A
|
5A
|
|
52V 27.2Ah
|
14S8P
|
Panasonic 3400mAh
|
20-40A
|
5A
|
|
52V 28Ah
|
14S8P
|
LG 3500
|
20-40A
|
5A
|
