Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Runva
-
Model Number:
-
HWN12000A
-
Certification:
-
CE, ISO9000, ISO14000
-
For:
-
Wrecker, Industrial using
-
Brand:
-
Runva
-

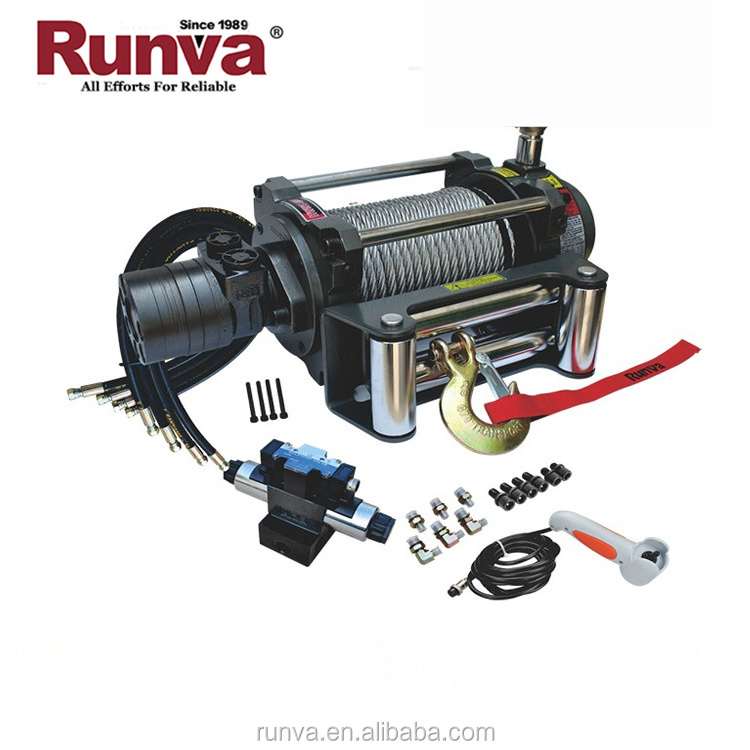

Name:
-
Runva Winch
Quick Details
-
Power Source:
-
Hydraulic
-
Application:
-
AUTO
-
Capacity:
-
12000lbs (5443 kgs)
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Runva
-
Model Number:
-
HWN12000A
-
Certification:
-
CE, ISO9000, ISO14000
-
For:
-
Wrecker, Industrial using
-
Brand:
-
Runva
-
Name:
-
Runva Winch
| SPECIFICATION(HWN12000U/A) | ||
| Rated line pull |
12000 lbs (5443kgs) |
|
|
Motor displacement |
65ml/r |
|
|
Oil flow |
5~45L/min |
|
|
Pressure |
14Mpa |
|
|
Gear reduction ratio |
25.5:1 |
|
|
Cable (Dia.× L) |
Ø7/16 "×83.7 ' (Ø11mm×25.5m) |
|
|
Drum size(Dia.× L) |
Ø2.8"×8. 6" (Ø72mm×219mm) |
|
|
Mounting bolt pattern |
10 "×4.5 " (254mm×114.3mm) 4-M12 |
|
|
Item |
HWN12000U |
HWN12000A |
|
Overall dimensions
|
20.7"×8.1"×11.1"
|
20.7"×8.1"×9.7"
|
|
Net weight
|
139.3 / 63.2 |
139.0 / 63.0 |
| Pull, Speed, Pressure, Flow (First layer) | |||
|
Line pull
lbs(kgs) |
Pressure
|
Flow
|
Line speed
|
|
0 |
2.0(290.1) |
1.3(5.0) |
2.3 (0.7) |
|
3000(1361) |
3.4(453.1) |
2.6(10.0) |
4.6(1.4) |
|
6000(2722) |
6.8(986.2) |
5.3(20.0) |
8.9(2.7) |
|
10000(4536) |
11.5(1668.0) |
9.2(35.0) |
15.1(4.6) |
|
12000(5443) |
14.0(2030.6) |
10.6(40.0) |
17.4(5.3) |
| Line Pull and Rope Capacity Inlayer | ||
| Layer of wire rope |
Rated line pull
|
Total rope on drum
|
|
1 |
12000(5443) |
16.4 (5.0) |
|
2 |
10595(4806) |
37.2(11.3) |
|
3 |
9485(4302) |
60.9(18.6) |
|
4 |
7904(3585) |
83.7(25.5) |
