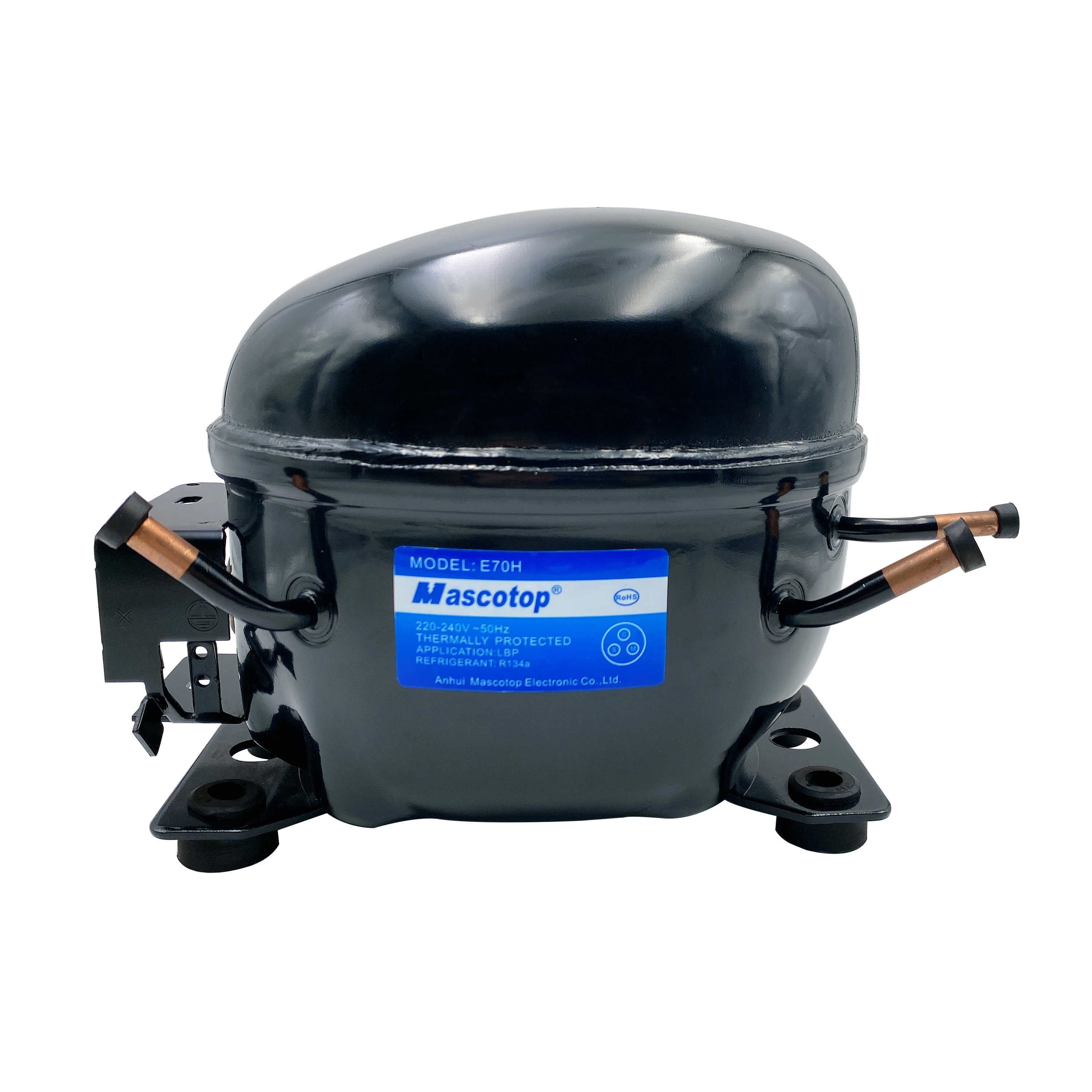

The compressor is the power of the refrigerator, equivalent to the heart of the refrigerator. It compresses the refrigerant,
improves the pressure and temperature of the refrigerant, and promotes the circulation of the refrigerant in the system.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
Mascotop, Huayi
-
Voltage:
-
220V~240V/50Hz
-
Motor Type:
-
RSIR
-
Horse Power:
-
1/4HP
-
Certification:
-
CCC
-
Weight:
-
8KG±0.5KG
-
Color:
-
Black
-
MOQ:
-
192 (3 pallet)
-
Marketing Type:
-
Hot Product 2019
Quick Details
-
Type:
-
Refrigeration Compressor
-
Application:
-
Refrigeration Parts
-
Weight (KG):
-
8
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
Mascotop, Huayi
-
Voltage:
-
220V~240V/50Hz
-
Motor Type:
-
RSIR
-
Horse Power:
-
1/4HP
-
Certification:
-
CCC
-
Weight:
-
8KG±0.5KG
-
Color:
-
Black
-
MOQ:
-
192 (3 pallet)
-
Marketing Type:
-
Hot Product 2019
Product Description
Specification
|
Working current
|
1.2A
|
|
Applicable Industries
|
Machinery Repair Shops, Home Use
|
|
Weight (KG)
|
8-10
|
|
Video outgoing-inspection
|
Provided
|
|
Machinery Test Report
|
Provided
|
|
Marketing Type
|
Hot Product 2019
|
|
Place of Origin
|
China
|
|
Type
|
Refrigeration Compressor
|
|
Application
|
Refrigeration Parts
|
|
Warranty
|
1-2 Year
|
|
Brand
|
HUAYI
|
|
Voltage
|
220V~240V/50Hz
|
|
Motor Type
|
RSIR
|
|
Horse Power
|
1/4HP
|
|
Certification
|
CCC/VDE
|
|
Cooling type
|
Not Need a fan motor
|
Structure
EQUIPEMENT PROCESS FLOW
Packing & Delivery
Installation
1. Do not remove the rubber plug before installing the compressor to prevent dirt and moisture from entering.
2. The compressor must not be tilted or inverted when stored, transported or installed, while avoiding impact.
3. When the compressor is working, it is inclined by no more than 5° from the horizontal state.
4. The compressor is filled with the best amount of special refrigeration oil approved by Dongbei, and should not be poured or added at will.
2. The compressor must not be tilted or inverted when stored, transported or installed, while avoiding impact.
3. When the compressor is working, it is inclined by no more than 5° from the horizontal state.
4. The compressor is filled with the best amount of special refrigeration oil approved by Dongbei, and should not be poured or added at will.
5. In order to ensure the system pressure balance, the compressor running time must not be less than 4 minutes.
6. The compressor cannot withstand high pressure or start and run under vacuum conditions. The system cannot be
vacuumed with a compressor.
7. The design of the refrigeration system should fully consider the oil return of the system.
8. The operating temperature of the compressor should not be higher than 43 °C. At maximum room temperature (43 ° C),
continuous operation, condensing pressure and maximum peak pressure should not exceed the following values.
9. The compressor should be stored in a dry place.
6. The compressor cannot withstand high pressure or start and run under vacuum conditions. The system cannot be
vacuumed with a compressor.
7. The design of the refrigeration system should fully consider the oil return of the system.
8. The operating temperature of the compressor should not be higher than 43 °C. At maximum room temperature (43 ° C),
continuous operation, condensing pressure and maximum peak pressure should not exceed the following values.
9. The compressor should be stored in a dry place.
