Quick Details
-
Range of Spindle Speed(r.p.m):
-
1 - 8000
-
Positioning Accuracy (mm):
-
±0.012
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
BORUI
-
Model Number:
-
XH7132 XK7132
-
Table Travel (mm):
-
1000*320
-
Year:
-
new
-
Voltage:
-
Customer Requirement
-
Dimension(L*W*H):
-
2900*2200*2370
-
Weight (KG):
-
2800
-
Spindle Motor Power(kW):
-
5.5
-
Max. Table Load(kg):
-
300 kg
-
CNC or Not:
-
CNC
-
Spindle Speed:
-
8000 rpm
-
Spindle taper:
-
BT40
-
X,Y,Z Axis Travel:
-
630/400/500mm
-
Table size:
-
1000*320mm
-
Positioning accuracy:
-
±0.012mm
-
Repeat positioning accuracy:
-
±0.01mm
-
Name:
-

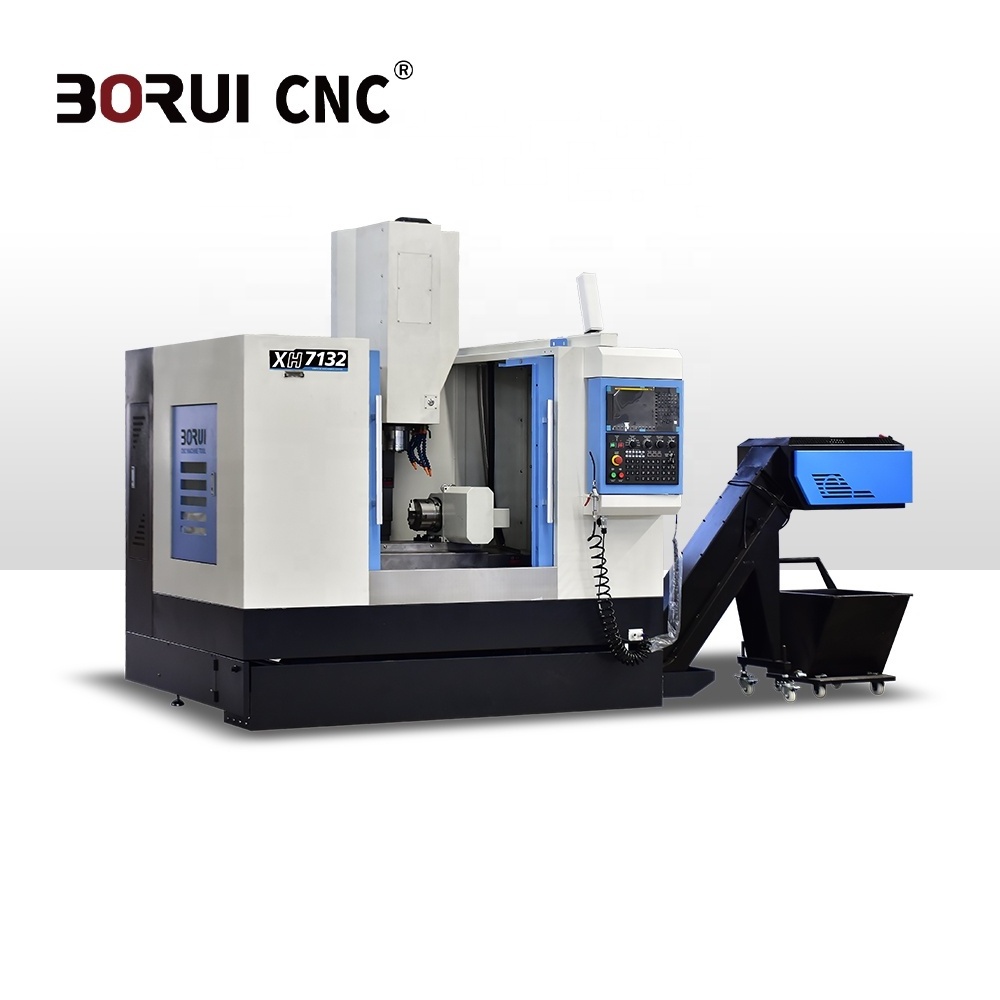

Cnc Machine Tools XH7132 XK7132From China Factory
-
Machine Type:
-
Cnc Vertical Milling Machine
-
Usage:
-
Metal Processing
Quick Details
-
Table Travel (X) (mm):
-
630
-
Table Travel (Y) (mm):
-
400
-
Table Travel (Z) (mm):
-
500
-
Range of Spindle Speed(r.p.m):
-
1 - 8000
-
Positioning Accuracy (mm):
-
±0.012
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
BORUI
-
Model Number:
-
XH7132 XK7132
-
Table Travel (mm):
-
1000*320
-
Year:
-
new
-
Voltage:
-
Customer Requirement
-
Dimension(L*W*H):
-
2900*2200*2370
-
Weight (KG):
-
2800
-
Spindle Motor Power(kW):
-
5.5
-
Max. Table Load(kg):
-
300 kg
-
CNC or Not:
-
CNC
-
Spindle Speed:
-
8000 rpm
-
Spindle taper:
-
BT40
-
X,Y,Z Axis Travel:
-
630/400/500mm
-
Table size:
-
1000*320mm
-
Positioning accuracy:
-
±0.012mm
-
Repeat positioning accuracy:
-
±0.01mm
-
Name:
-
Cnc Machine Tools XH7132 XK7132From China Factory
-
Machine Type:
-
Cnc Vertical Milling Machine
-
Usage:
-
Metal Processing
XH7124B
cnc milling machine vertical machining center
Product Description
Product main technical parameters:
|
Specificiton
|
XH7132
|
|
Worktable size (LXW)
|
1000X320mm
|
|
T-slot (NXWXD)
|
3/16/75mm
|
|
X axis travel
|
630mm
|
|
Y axis travel
|
400mm
|
|
Z axis travel
|
500mm
|
|
Distance from spindle nose to worktable surface
|
100-620mm
|
|
Distance from spindle center to column
|
400mm
|
|
Rapid feed speed (X/Y/Z)
|
20/20/20m/min.
|
|
Spindle taper
|
BT40
|
|
Spindle speed
|
8000rpm
|
|
Main motor power
|
5.5Kw
|
|
Servo motor torque (X/Y/Z)
|
6/6/7.7 N.m
|
|
Overall size (LXWXH)
|
2900X2200X2370mm
|
|
Net weight
|
2800kg
|
