Quick Details
-
Application:
-
Villa
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
WAYHANG
-
Model Number:
-
WH-120
-
Product name:
-
sliding gate opener
-
GSM Frequency:
-
Quad-band 850/900/1800/1900MHz
-
4G (optional):
-
C/E/SA
-
Digital Output:
-
NC/NO dry contact, 3A/240VAC
-
DC Power supply:
-
9~24VDC/2A
-
Power consumption:
-
12V input Max. 50mA/Average 25mA
-
Temperature range:
-
-20~+60 °C
-
Humidity range:
-
Relative humidity 10-90%
-
Exterior dimension:
-
9.65 x 5.00 x 3.15 cm
-
Net Weight:
-
180g
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support, Return and Replacement
-
Project Solution Capability:
-
Others
-
Application:
-
Villa
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
WAYHANG
-
Model Number:
-
WH-120
-
Product name:
-
sliding gate opener
-
GSM Frequency:
-
Quad-band 850/900/1800/1900MHz
-
4G (optional):
-
C/E/SA
-
Digital Output:
-
NC/NO dry contact, 3A/240VAC
-
DC Power supply:
-
9~24VDC/2A
-
Power consumption:
-
12V input Max. 50mA/Average 25mA
-
Temperature range:
-
-20~+60 °C
-
Humidity range:
-
Relative humidity 10-90%
-
Exterior dimension:
-
9.65 x 5.00 x 3.15 cm
-
Net Weight:
-
180g

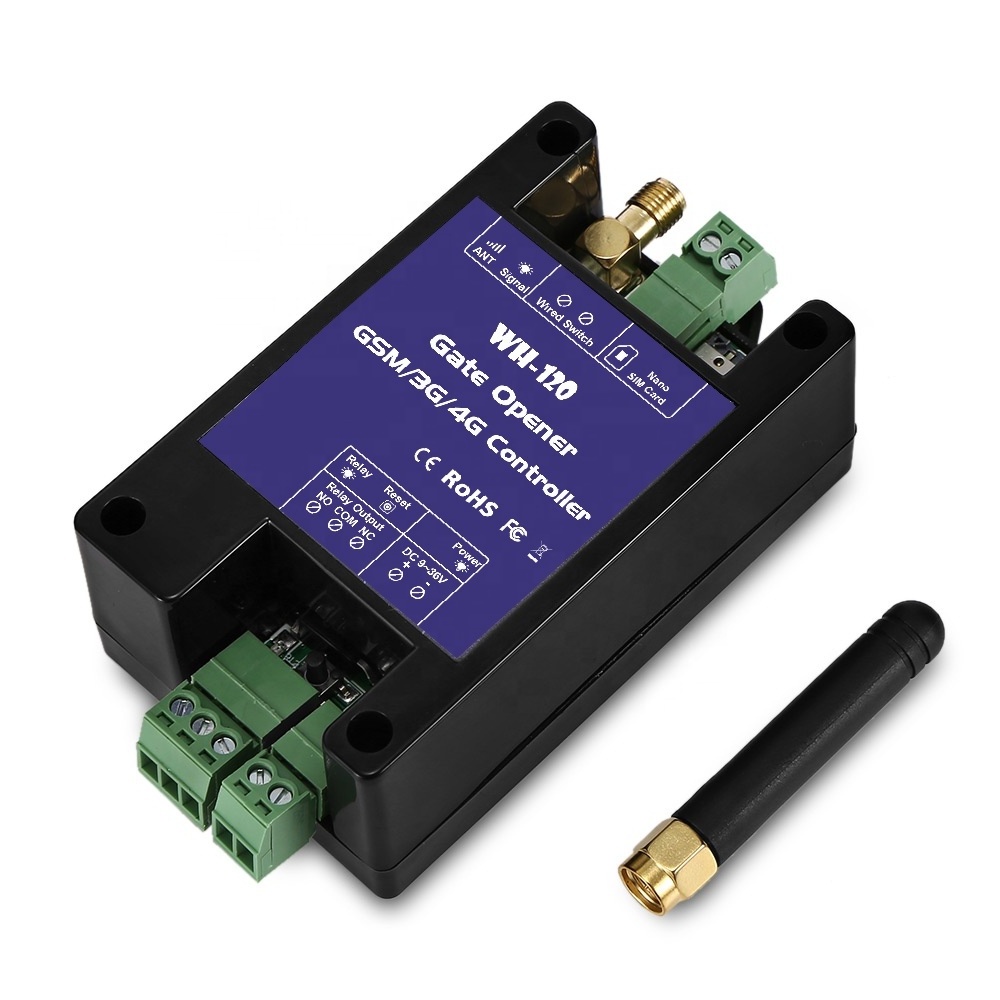

WH-120 GSM Remote swing gate automation operators sliding gate opener
Description:
WH-120 is a new designed Smart Wireless Gate controller.
It could be well integrated with most of the electronic locks, gate motors, gate operators.
And it is widely used in residential, institutional, industrial markets.
You'll need it.
WH-120 is a new designed Smart Wireless Gate controller.
It could be well integrated with most of the electronic locks, gate motors, gate operators.
And it is widely used in residential, institutional, industrial markets.
You'll need it.
Features:
GSM network communication, no distance limitation, can be used anywhere.
Works with a Nano SIM card, users could dial the SIM card number to open the door.
No phone charges, no distance limits, no keyfobs.
More convenient and friendly than any other solutions.
Specifications:
GSM / 3G Frequency
GSM: quad-band 850 / 900 / 1800 / 1900MHz
3G WCDMA: 900 / 2100MHz UMTS
3G CDMA2000: 850 / 1900MHz UMTS
3G: 850 / 2100MHz UMTS
DC power: DC 9V – 36V/1A
Power consumption: max 50mA / average 25mA
SIM card: nano type, 3V
Antenna: 50Ω SMA
Relay specification: 3A/250V AC, 20A/14V DC
Relay type: NO/NC
Relay time: max 0 - 900s
Wired switch: supports
Operating temp: - 10 - 60 Deg. C
Relative humidity: 10 - 90% (RH)
Please Note:
Notice: The power adapter and push button are NOT included. The default device only support GSM.
Package List:
1 x Controller, 1 x Antenna, 1 x User Manual in English
Package weight
: 0.181 kg
Product size (L x W x H): 9.65 x 5.00 x 3.15 cm / 3.8 x 1.97 x 1.24 inches
Package size (L x W x H): 12.50 x 4.00 x 7.00 cm / 4.92 x 1.57 x 2.76 inches
Product size (L x W x H): 9.65 x 5.00 x 3.15 cm / 3.8 x 1.97 x 1.24 inches
Package size (L x W x H): 12.50 x 4.00 x 7.00 cm / 4.92 x 1.57 x 2.76 inches
