Quick Details
-
Model Number:
-
SUKF1-63
-
Max. Current:
-
63A
-
Product name:
-
63A Weatherproof Isolator
-
Rated current:
-
6A-63A
-
Rated voltage:
-
400V/690V
-
Certificate:
-
TUV CE IEC
-
Pole:
-
1P/2P/3P/4P
-
Frequency:
-
50/60 Hz
-
Function:
-
ON-OFF-ON
-
Machine Life:
-
20000 times
-
Level:
-
IP66
-
Brand:
-
Suntree
Quick Details
-
Max. Voltage:
-
400V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Suntree
-
Model Number:
-
SUKF1-63
-
Max. Current:
-
63A
-
Product name:
-
63A Weatherproof Isolator
-
Rated current:
-
6A-63A
-
Rated voltage:
-
400V/690V
-
Certificate:
-
TUV CE IEC
-
Pole:
-
1P/2P/3P/4P
-
Frequency:
-
50/60 Hz
-
Function:
-
ON-OFF-ON
-
Machine Life:
-
20000 times
-
Level:
-
IP66
-
Brand:
-
Suntree
1.Cables looped in and out from overhead
2. In and out from underground
3. In and out stralght through the switch
4. two 25mm rear knockouts are moulded in the base for surface mounting with concealed wiring Weatherproof Isolation Switch.
|
UKF1-20
|
20A 500V Single pole surface switch. Terminals accommodate 16mm2 cable. M Rating 220
|
IP65
|
|
UFK1-35
|
35A/63A 250V Single pole. Terminals accommodate mm2 cable. M rating 220
|
IP65
|
|
UKF1-63
|
35A/63A 250V Single pole. Terminals accommodate mm2 cable. M rating 220
|
IP65
|
|
UKF2-20
|
20A 440V double. Trminals accommodate 16mm2 cables. M Rarting 180.
|
IP65
|
|
UFK2-35
|
35A 440V double. Trminals accommodate 16mm2 cables. M Rarting 180.
|
IP65
|
|
UFK2-63
|
63A 400V double. Trminals accommodate 16mm2 cables. M Rarting 180.
|
IP65
|
|
UFK3-20
|
63A 400V double. Trminals accommodate 16mm2 cables. M Rarting 180.
|
IP65
|
|
UKF3-35
|
35A 440V Tripe Pole. Trminals accommodate 16mm2 cables. M Rarting 180.
|
IP65
|
|

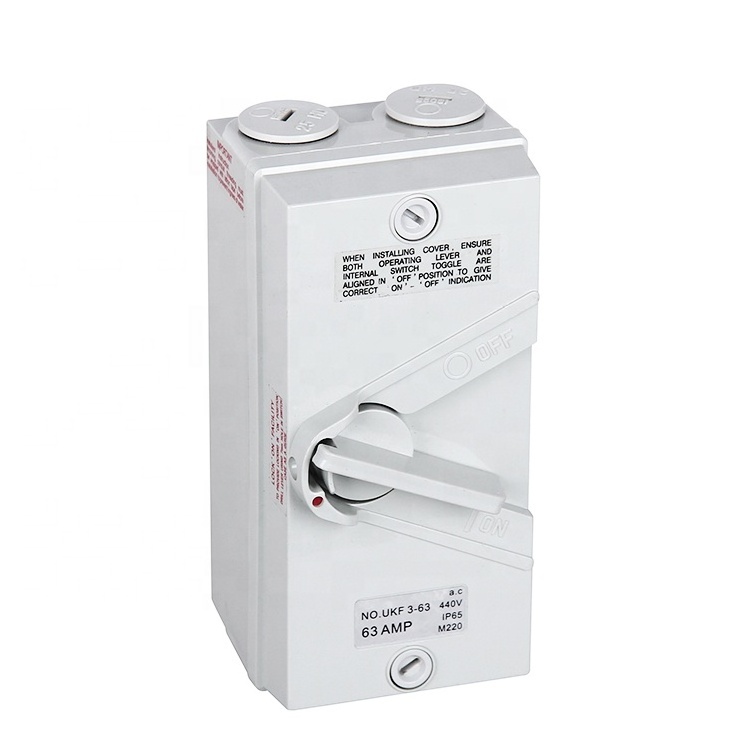

UKF3-63
|
55A 440V Tripe Pole. Trminals accommodate 16mm2 cables. M Rarting 180.
|
IP65
|
|
UKF4-20
|
20A 440V Tripe Pole. Trminals accommodate 16mm2 cables. M Rarting 180.
|
IP65
|
|
UKF4-35
|
35A 440V Tripe Pole. Trminals accommodate 16mm2 cables. M Rarting 180.
|
IP65
|
|
UKF4-63
|
55A 440V Tripe Pole. Trminals accommodate 16mm2 cables. M Rarting 180.
|
IP65
|
|
UKF3-55-32CE
|
55A 440V Tripe Pole. With 32mm conduit entry at each end Trminals accommodate 16mm2 cables. M Rarting 160.
|
IP65
|
|
UKF3-63-32CE
|
63A 440V Tripe Pole. With 32mm conduit entry at each end Trminalsaccommodate 16mm2 cables. M Rarting 160, Weatherproof Isolating Switches.
|
IP65
|
Features
1.Switching ON &OFF on-load
2.Padlockable handle with 7mm hole in OFF position
3.Dual 25mm threaded conduit entries on top and bottom
4.IP66 rating prevents from heavy dust and water ingress
Application
1.The UKF Series of Weatherprotected Isolating Switches is a robust range of switches suitable for virtually any external application.
2.Included in the range are single, double and triple pole switches from 20 to 80 Amps.
3.The base mounted mechanism provides for easier thrmnation and more wiring room.
4.Switch dimensions are 165mm x 82mm with an voerall height of 85mm.
