Quick Details
-
Brand:
-
SiRON
-
Description:
-
terminal block
-
Date Code，指元器件在生产商的生产日期或生产批次:
-
DC24V
-
Suitable Wire:
-
1.5 mm2 Following / AWG16
-
Nominal Coil Voltage:
-
DC24V
-
Certification:
-
CE RoHS
-
Nominal operating current:
-
1A
-
Package:
-
1 Pcs/Box
Quick Details
-
Type:
-
DIN Rail Terminal Blocks
-
Model Number:
-
T022/T023/T024
-
Place of Origin:
-
Guangdong, China
-
Brand:
-
SiRON
-
Description:
-
terminal block
-
Date Code，指元器件在生产商的生产日期或生产批次:
-
DC24V
-
Suitable Wire:
-
1.5 mm2 Following / AWG16
-
Nominal Coil Voltage:
-
DC24V
-
Certification:
-
CE RoHS
-
Nominal operating current:
-
1A
-
Package:
-
1 Pcs/Box
Features

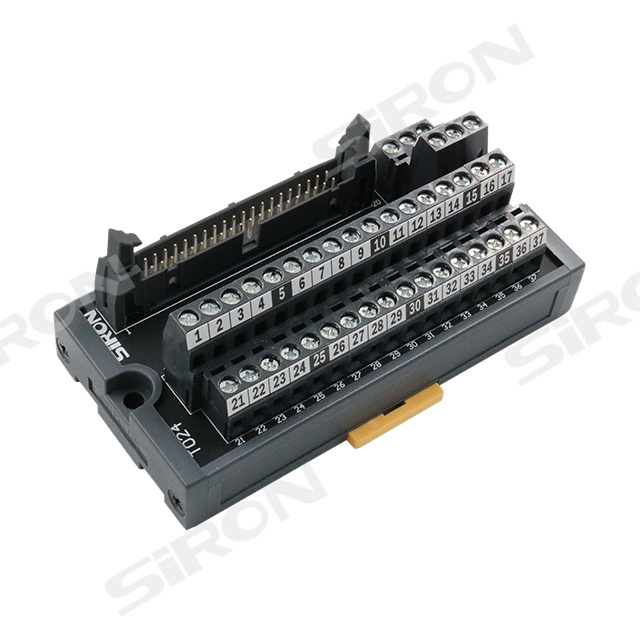

* T024/T024-K is a 40pin terminal connection for 40pin connector, small size for space saving.
*Notes:
Before ordering,please confirm the PLC pin definition,choose the suitable terminal.
When PLC connection,please be sure to use the company developed and the corresponding special cable.
Screw Mounting:use M4*16 screw,screw hole depth≥3mm.
DIN RailMounting:Standard 35mm DIN RAIL
*Notes:
Before ordering,please confirm the PLC pin definition,choose the suitable terminal.
When PLC connection,please be sure to use the company developed and the corresponding special cable.
Screw Mounting:use M4*16 screw,screw hole depth≥3mm.
DIN RailMounting:Standard 35mm DIN RAIL
Specification
|
Input
|
Nominal operating current
|
1A
|
|
|
|
Nominal coil voltage
|
DC24V
|
|
|
Corresponding output Devices
|
|
Button Switch,Photoelectric Switch,Solenoid,
Indicator,Stepping Servo Motor,etc. |
|
|
Suitable cable
|
|
X200-4 X210-4
X210-5 X218-6
(For details, please refer to the directory cable series)
|
|
|
Suitable PLC
(Other brands also apply)
|
KEYENCE
|
KV-1000 KV-H20S
KV-H40S KV-3000 KV-5000 |
|
|
|
OMRON
|
CJ1W-ID231 CJ1W-ID261
CJ1W-MD261(IN) CJ1W-ID232 CI1W-ID262 CJ1W-MD263(IN) CJ1W-MD563(IN) CJ1W-OD231 CJ1W-OD261 CJ1W-MD261(Out) |
|
|
|
SIEMENS
|
40P Plug with a full range
|
|
|
|
Yokogawa
|
F3WD64-3N
F3WD32-3F |
|
|
|
MITSUBISHI
|
QX41 QX41-S1
QX42 QX42-S1 QX71 QX72 QY41P |
|
|
|
Panasonic
|
FPG-XY64D2T/P FP2-C1D
FP2-X32D2 FP2-X64D2 FP2-32T/P FP2-Y64T/P FP2-XY64D2T FP2-XY64D7T |
|
