Quick Details
-
Place of Origin:
-
GUA
-
Brand Name:
-
solarthon
-
Model Number:
-
STKM
-
Input Voltage:
-
22~50VDC(V)
-
Output Voltage:
-
120V/220V(V)
-
Output Current:
-
10A
-
Output Frequency:
-
50/60(HZ)
-
Size:
-
370mm*3.5mm*38mm
-
Certificate:
-
CE Rosh, FCC
-
Warranty:
-
3 years
-
Weight:
-
9
-
Product name:
-

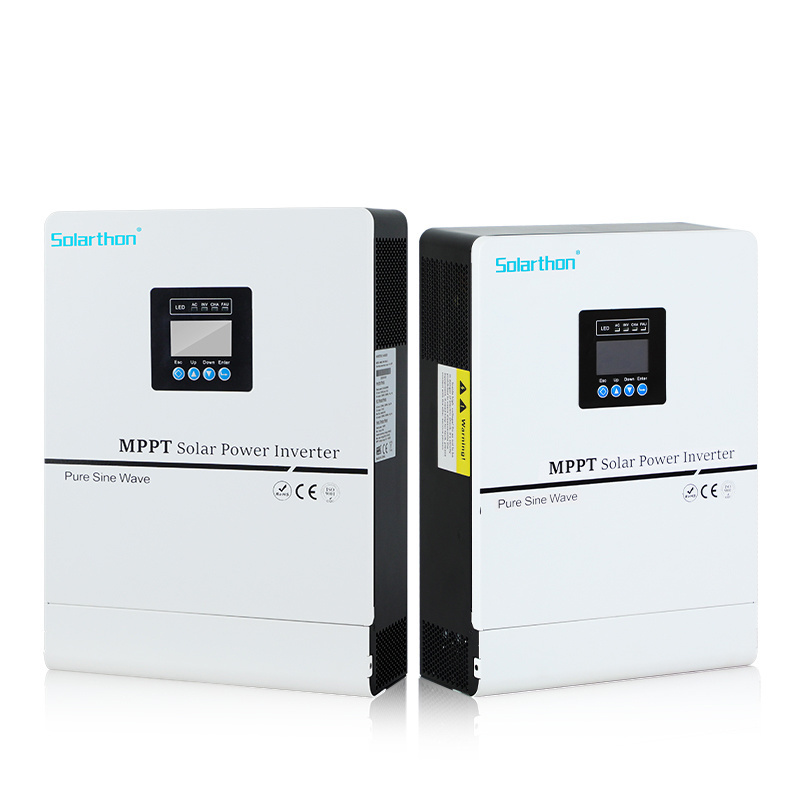

solar charge controller and inverter
-
Application:
-
Home Solar Power System
-
Inverter type:
-
On-grid Solar Power Inverter
-
Rated power:
-
3KW 5KW
-
Battery type:
-
Lithium Battery
-
Keyword:
-
Solar Energy Power Inverter
-
Display:
-
LCD+LED Display
-
Protection:
-
High Temperature
-
Waveform:
-
Pure Sine Wave MPPT Inverter
-
Rated Output Power:
-
3KW 5KW
Quick Details
-
Output Type:
-
Three Phase
-
Type:
-
DC/AC Inverters
-
Inverter Efficiency:
-
94%
-
Place of Origin:
-
GUA
-
Brand Name:
-
solarthon
-
Model Number:
-
STKM
-
Input Voltage:
-
22~50VDC(V)
-
Output Voltage:
-
120V/220V(V)
-
Output Current:
-
10A
-
Output Frequency:
-
50/60(HZ)
-
Size:
-
370mm*3.5mm*38mm
-
Certificate:
-
CE Rosh, FCC
-
Warranty:
-
3 years
-
Weight:
-
9
-
Product name:
-
solar charge controller and inverter
-
Application:
-
Home Solar Power System
-
Inverter type:
-
On-grid Solar Power Inverter
-
Rated power:
-
3KW 5KW
-
Battery type:
-
Lithium Battery
-
Keyword:
-
Solar Energy Power Inverter
-
Display:
-
LCD+LED Display
-
Protection:
-
High Temperature
-
Waveform:
-
Pure Sine Wave MPPT Inverter
-
Rated Output Power:
-
3KW 5KW
Products Description
|
Model
|
STKM-10212
|
STKM-20224
|
STKM-30248
|
STKH-50248
|
|
Rated Power
|
1000W
|
2000W
|
3000W
|
5000W
|
|
Output Voltage
|
220VAC
|
220VAC
|
220VAC
|
220VAC
|
|
Output Frequency
|
50/60Hz
|
50/60Hz
|
50/60Hz
|
50/60Hz
|
|
Input Voltage
|
220VAC
|
220VAC
|
220VAC
|
10000VA
|
|
Input Frequency
|
50/60Hz
|
50/60Hz
|
50/60Hz
|
50/60Hz
|
|
Maximum AC Charge Current
|
10A
|
30A
|
30A
|
30A
|
|
Maximum PV Array Power
|
400W
|
1600W
|
3200W
|
3200W
|
|
Max PV Input Voltage(Voc)
|
150VDC
|
150VDC
|
150VDC
|
150VDC
|
|
MPPT Tracking Voltage Range
|
15-150VDC
|
6030-150VDC
|
60-150VDC
|
60-150VDC
|
|
Maximum PV Charge Current
|
30A
|
60A
|
60A
|
60A
|
|
Battery Voltage
|
12VDC
|
24VDC
|
4848VDC
|
48VDC
|
|
Operating Temperature
|
-15℃-50℃
|
-15℃-50℃
|
-15℃-50℃
|
-15℃-50℃
|
|
Storage Temperature
|
-20℃-50℃
|
-20℃-50℃
|
-20℃-50℃
|
-20℃-50℃
|
|
Dimension
|
420x321x125mm
|
545x461x170mm
|
545x461x170mm
|
545x461x170mm
|
|
Net Weight
|
6kg
|
8kg
|
8.8kg
|
9.2kg
|
|
Warranty
|
3 years
|
3 years
|
3 years
|
3 years
|
|
Packing Size (CM)
|
51.5*38*20.5
|
64.5*55.5*26
|
64.5*55.5*26
|
64.5*55.5*26
|
|
G.W/CTN (KGS)
|
7kg
|
9kg
|
9.8kg
|
10.2kg
|
Solarthon Factory
Solarthon is one manufacture big production capacity,
OEM/ODM available
Business scope coveringdiversified models of solar power system,solar energy syetm ,solar panels, solar inverter,solar fan,portable power station generator banks for home
Buyer Reviews
One-stop new energy solution provider!
we are the one of the most professional solar module manufacturers and whole solar energy system supplier. Anern has excellent after-sales service, with professional guidance for installation.
Certifications
Solarthon products
are ISO9001, CE, ROHS,TUV, ISO, FC approved
,meeting various certification requirements for different countries,Our products have been exported to more than 200 countries and regions.We also have participated in many important governmental projects over the world.
Company Introduction
Solarthon has
15 years of manufacturer experience
in solar energy system field with strong R&D ability. We have a professionable technique team engaged in R&D, with our own patents and unique features
Exhibition
Solarthon
participates in high quality exhibitions
in many areas every year. Such as the Canton Fair, Middle East Electricity in Dubai, EXPO ELECTRICA INTERNACIONAL in Mexico, etc. Each year there are over 1,000 personnel from various countries clients and government institutions come to visit us.
FAQ
Q: Can I take some samples for testing before placing an order?
A: Yes, customers need to pay sample fees and courier fees
Q: How long can you provide samples?
A: 1~5 days after the deposit payment is confirmed
Q: What kind of certificates your products have?
A: CE,FCC,ROHS,PSE,UN38.3,MSDS,etc,which is able to satisfy most country's importing requirements.
Q: Can we have our brand logo?
A: Yes , please send us the artwork of your design, we have a professional team which is having rich experience on OEM&ODM,but there is a minimum order quantity required.
Q: What's the warranty?
A: All of our products passed professional QC test, we offer 12 months warranty for non-artificial damage.
Q: How do you control the quality?
A: We have reliable and strict quality control system,100% aging testing before packaging.Third party inspection are also acceptable.
Q: How do you provide after-sales service?
A: We have overseas branches can provide repair and replacement.
Q: Can you quote me the best price?
A: We need more information about your demands, such as the power/material/Qty/etc, then We can suggest the suitable type and quote the best price for you.
