Quick Details
-
Control System Brand:
-
RuiDa
-
Cutting Area:
-
900*1300mm
-
Cutting Thickness:
-
1-20mm
-
Control Software:
-
software
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Forsun
-
Weight (KG):
-
350 KG
-
Product Name:
-

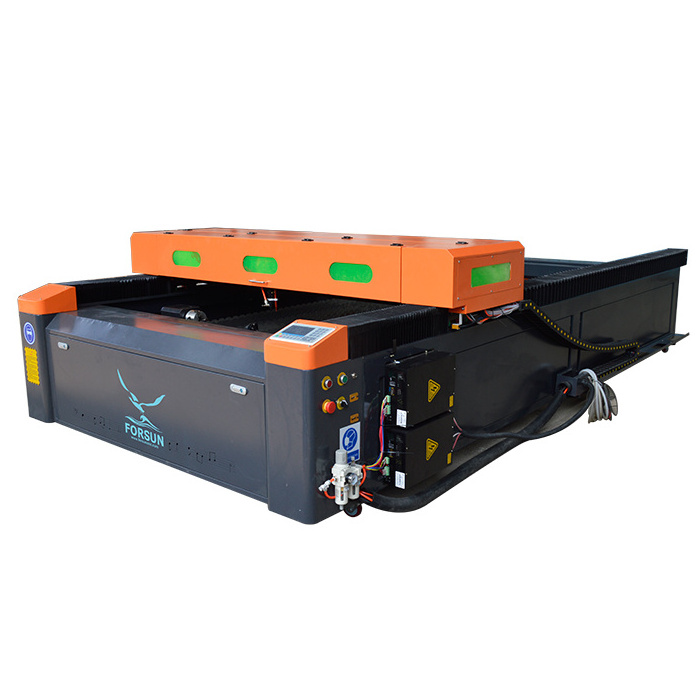

CO2 Laser cutting machine
-
Effective cutting size:
-
900*1200mm
-
Laser Cutting Head:
-
Professional laser cutting head
-
Control System:
-
Ruida Control System
-
Motor and Driver:
-
YAKO Step Motor and Driver
-
Laser Source:
-
RECI Laser tube
-
Work Table:
-
Knife working table
-
Application Materials:
-
acrylic,wood,leather,fabric etc
-
Linear guide:
-
Taiwan PMI linear guide
-
Color:
-
White or customized
Quick Details
-
Laser Type:
-
CO2
-
Cutting Speed:
-
1-100mm/s
-
Cooling Mode:
-
WATER COOLING
-
Control System Brand:
-
RuiDa
-
Cutting Area:
-
900*1300mm
-
Cutting Thickness:
-
1-20mm
-
Control Software:
-
software
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Forsun
-
Weight (KG):
-
350 KG
-
Product Name:
-
CO2 Laser cutting machine
-
Effective cutting size:
-
900*1200mm
-
Laser Cutting Head:
-
Professional laser cutting head
-
Control System:
-
Ruida Control System
-
Motor and Driver:
-
YAKO Step Motor and Driver
-
Laser Source:
-
RECI Laser tube
-
Work Table:
-
Knife working table
-
Application Materials:
-
acrylic,wood,leather,fabric etc
-
Linear guide:
-
Taiwan PMI linear guide
-
Color:
-
White or customized
18%discount new product BL6050 infrared picosecond co2 portable laser cutting machine for glass
What's the feature of CO2 Laser Cutting Machine?
1. Working Area:1000*1000mm
2. Laser power: 300 w laser tube
3. Ruida control system.
4. Knife worktable/Honey comb worktable
5. Stepping drives and motor
6. Water Chiller CW5200
7. Auto Up&Down table
9. Air fa n
10. Laser cutter Software
Optional parts :
Ø 4th Rotary Axis for round materials
Ø 80W/100W/130W/150W
Ø Air filter
What’s the Technical data of Forsun CO2 Laser Cutting Machine ?
|
Technical Data |
||
|
NO |
Description |
Parameter |
|
1 |
Laser Tube |
RECI/Yongli |
|
2 |
Positioning Accuracy |
±0.01mm/300mm |
|
3 |
Laser Power |
80W/100W/130W/150W |
|
4 |
Maxinum Speed |
6000M/min |
|
5 |
Running Environment Temperature |
0 - 45 Centigrade |
|
6 |
Relative Humidity |
30% - 75% |
|
7 |
Voltage |
1PH, AC 220V/50HZ |
What's the advantage of Forsun Fiber Laser Cutting Machine?
| Spindle |
Italy HSD Air Cooling Spindle
Top brand of the world. Spindle speed: 0-24000RPM. |
|
Inverter |
Taiwan Delta Inverter It can output 150% of rated torque at zero speed, and it can have “point to point” and relative distance control functions for position control. |
|
Motor |
Japan YASKAWA servo motor high working efficiency and stable running promised |
|
Control system |
Syntec Controller
|
|
Working table |
T-slot and Vacuum Table
|
|
Tool magazine |
Carousel ATC 12 PCS Tool Magazine Easy to learn operate and convient to maintence |
What's the benefit of Forsun CNC Fiber Laser Cutting Machine?
Applicable Industry:
This machin is widely used in various industries such as advertising decoration,kitchen ware,engineering machinery,acrylic,fabric,wood cutting,etc.
Applicable Materials:
Acrylic: 0-35mm; Wood: 0-25mm.
Professional used to cut acrylic,wood,PVC,plastic,fabric,leather,paper,carton etc.
How do we package CNC Laser Cutting Machine ?
What's our service for CNC Laser Cutting Machine ?
Guarantee:
1.5 years for the whole machine. Within 18 months under normal use and maintenance, if something is wrong with the machine, you will get spare part for free. Out of 18 months, you will get spare parts at cost price. You will also get technical support and service all the lifetime.
Technical support:
1. Technical support by phone, email, WhatsApp, Wechat or Skype around the clock
2. Friendly English version manual and operation video CD disk
3. Engineer available to service machinery overseas
After sales services:
Normal machine is properly adjusted before dispatch. You will be able to use the machine immediately after received machine.
Besides, you will be able to get free training advice towards our machine in our factory. You will also get free suggestion and consultation, technical support and service by
Customer visiting our factory
1) This is the first time I use this kind of machine, is it easy operate?
There are guide video that show how to use machine and english instruction book send to you with machine.
If there is still have any question, we will provide free professinal guide for you until you could use machine well.
2) If machine have any problem after I ordered it, how could I do?
Free parts send to you in machine warranty period if machine have any problem.
Free after-sales service life for machine, please feel free contact us if your machine have any problem.
3) MOQ?
Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price send to you.
