Quick Details
-
Positioning Accuracy (mm):
-
0.03 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.03 mm
-
Spindle Motor Power(kW):
-
4.5
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Blue Elephant
-
Voltage:
-
AC380V/50HZ
-
Dimension(L*W*H):
-
1300*2500*250mm
-
Power (kW):
-
5.5
-
Weight (KG):
-
1200
-
Product name:
-
CNC Wood Working Machine
-
Application:
-
FOAM MDF WOOD ACRYLIC ALUMINUM
-
Traveling speed:
-
40m/min
-
Working speed:
-
0-25m/min
-
Re-positioning accuracy:
-
±0.03mm
-
System resolution:
-
±0.025mm
-
Working accuracy:
-
±0.07mm
-
Working air pressure:
-
0.8MPa
Quick Details
-
Working Table Size(mm):
-
1300×2500
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
0 - 24000 rpm
-
Positioning Accuracy (mm):
-
0.03 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.03 mm
-
Spindle Motor Power(kW):
-
4.5
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Blue Elephant
-
Voltage:
-
AC380V/50HZ
-
Dimension(L*W*H):
-
1300*2500*250mm
-
Power (kW):
-
5.5
-
Weight (KG):
-
1200
-
Product name:
-
CNC Wood Working Machine
-
Application:
-
FOAM MDF WOOD ACRYLIC ALUMINUM
-
Traveling speed:
-
40m/min
-
Working speed:
-
0-25m/min
-
Re-positioning accuracy:
-
±0.03mm
-
System resolution:
-
±0.025mm
-
Working accuracy:
-
±0.07mm
-
Working air pressure:
-
0.8MPa
Products Description

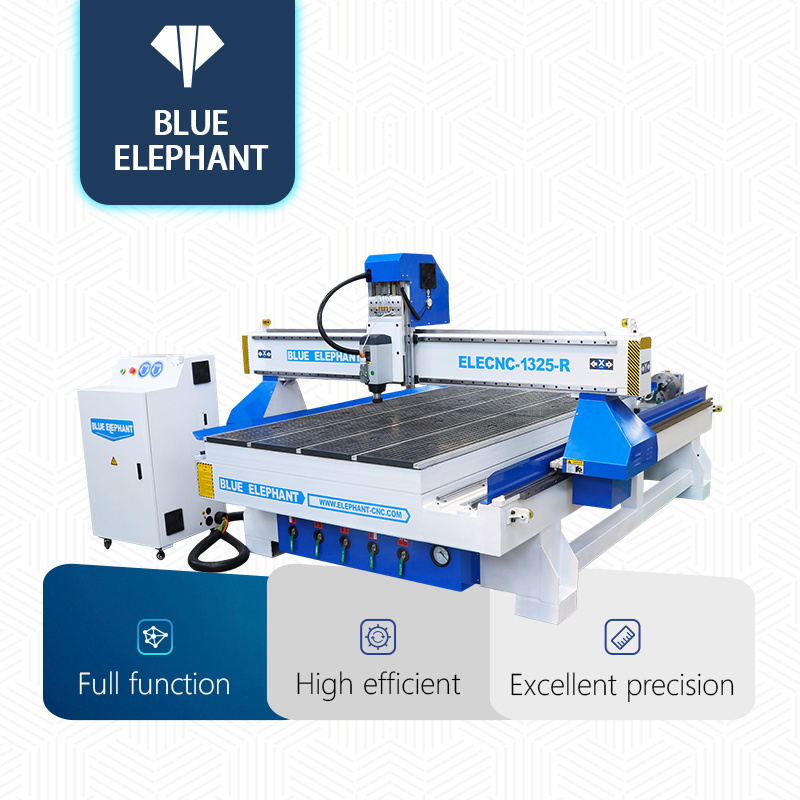

Affordable Cost-Effective Cnc Router 1325 Rotary Axis Plywood Mdf Cutting 3D Woodworking Engraving Router For Sale
This rotary axis CNC router machine is designed for processing complicated work pieces like 3D or 4D projects. Besides, it can also be used in some furniture industry with the rotary device like stair railings, table and chair legs, Roman columns, etc.
1. Designed with rotary device, it can process the cylinder wood carving patterns, furniture legs, escalators, etc.
2. With the heavy duty thicker and bigger welded steel tube frame, it makes the machine work more stably.
3. Adopting DSP control system and stepper motor driver system, which ensure the machine with a longer service life.
4. All accessories and parameters can be selected and customized according to the user's processing requirements.
Product Details
DSP controller
The machine is controlled by the DSP controller, which ensures that the machine can be operated without a computer. Support three axis and four-axis function and multi-spindle.
FL118 Stepper Motor
This machine adopts a FL118 stepper motor. Compared with ordinary motors, this type of motor has the features of
simple structure, convenient control, high reliability, high accuracy, and low cost.
Heavy duty structure
The CNC machines featuring one-pieces steel frames. They are much more stable than other CNC machines you can find elsewhere at similar prices.
Rotary axis
Rotary axis does not occupy the working area of the machine. It is easy to be disassembled and cleaned. It is widely used for processing cylinder materials, such as chair legs,stairs and so on.
T-slot vacuum working table
The vacuum table has T-slot mounting devices incorporated into the tables to enable fixtures and material blanks to be
clamped directly to the table. Clamps are provided.
Water cooling spindle
Imported bearings with good quality, long working life. Application: Milling, Engraving, Dilling. High speed, low noise. Higher precision.
Product Paramenters
|
Model
|
ELECNC1325-R
|
|
X,Y axis travel
|
1300x2500mm, option: 1500*3000mm; 1600*3000mm, etc.
|
|
Z axis travel
|
200mm, option: 300mm, 400mm, etc.
|
|
Spindle type
|
4.5kw air cooling spindle, ER25
|
|
Inverter
|
5.5kw
|
|
Rotary device
|
200mm diameter rotary device
|
|
Tool magazine
|
No tool magazine Option: linear or carousel type auto tool changer
|
|
Tool holder with collet
|
ER25 collet: φ4, φ6, 1/8, 1/2
|
|
Control system
|
DSP B18 option: Mach3; NC Studio
|
|
Driving system
|
Stepper FL118 motor and YAKO2811 drivers. option:750w Leadshine hybrid servo
|
|
Reducer
|
Japan SHIMPO reducer
|
|
Machine structure
|
Heavy duty body with quenching treatment
|
|
Work table
|
Aluminum T-slot & vacuum work table
|
|
Positioning cylinder
|
Optional: 7 pieces (X2,Y3)
|
|
Linear guide
|
Taiwan Linear guide
|
|
Transmission
|
X, Y axis: Taiwan /Germany helical rack and pinion Z axis: Taiwan TBI high precision ball screw
|
|
Lubrication system
|
Automatic lubrication system
|
|
Tool calibration
|
Manual tool sensor calibration
|
|
Cables
|
Germany Igus cables with CE, cUL certificate
|
|
Compatible software
|
Artcam, Alphcam, Type 3, Ucancam, Aspire,etc
|
|
Command language
|
G Code & M Code
|
|
Traveling speed
|
40m/min
|
|
Working speed
|
0-25m/min
|
|
Re-positioning accuracy
|
±0.03mm
|
|
System resolution
|
±0.0025mm
|
|
Working Accuracy
|
±0.07mm
|
|
Working air pressure
|
0.8MPa
|
|
Working voltage
|
220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ
|
