Main parameters:
Operating weight :15 tons ,
Moldboard : 3965×610mm,
Detailed configuration
* SC8D170G2B1 engine,
* Meritor driving axle ,
* Air Conditioner driving cabin ,
* Imported differential mechanism .
Advantages
Strong power ,Comfortable driving environment .
Adopt imported hydraulic parts .Great working performance .
Optional parts
* Front mouldboard ,
* Rear scarifier ,
* Shovel blade
- Product Details
- {{item.text}}
Quick Details
-
Reverse Speed(km/h):
-
23
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
ORIEMAC
-
Weight:
-
3000 kg
-
Dimension(L*W*H):
-
2990*1280*2360mm
-
Drive Type:
-
Hydraulic Drive
-
Overall Length:
-
8900mm
Quick Details
-
Forward Speed(km/h):
-
38
-
Engine Brand:
-
Famous brand
-
Working diameter:
-
/
-
Reverse Speed(km/h):
-
23
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
ORIEMAC
-
Weight:
-
3000 kg
-
Dimension(L*W*H):
-
2990*1280*2360mm
-
Drive Type:
-
Hydraulic Drive
-
Overall Length:
-
8900mm
Products Description
|
Basic specification
|
|
|
|
Engine model
|
D6114
|
|
|
Rated power/speed
|
125kW/2300rpm
|
|
|
Dimension(LxWxH)
|
8900×2625×3470mm
|
|
|
Operating weight(Standard)
|
15000kg
|
|
|
Performance specification
|
|
|
|
Travelling speed ,forward
|
5,8,11,19,23,38 km/h
|
|
|
Travelling speed ,reverse
|
5,11,23 km/h
|
|
|
Tractive force(f=0.75)
|
77KN
|
|
|
Max. gradeability
|
20%
|
|
|
Tire inflation pressure
|
260 kPa
|
|
|
Working hydraulic pressure
|
16 MPa
|
|
|
Transmission pressure
|
1.3~1.8MPa
|
|
|
Operating specification
|
|
|
|
Max. steering angle of front wheels
|
±50°
|
|
|
Max. lean angle of front wheels
|
±17°
|
|
|
Max. oscillation angle of front axle
|
±15°
|
|
|
Max. oscillation angle of balance box
|
15
|
|
|
Frame articulation angle
|
±27°
|
|
|
Min. turning radius using articulation
|
7.3m
|
|
|
Biade
|
|
|
|
Maximum lift above ground
|
450mm
|
|
|
Maximum depth of cutting
|
500mm
|
|
|
Maximum blade position angle
|
90°
|
|
|
Blade cutting angle
|
28°—70°
|
|
|
Circle reversing rotation
|
360°
|
|
|
Moldboard width X height
|
3965×610mm
|
|
Feature At Glance

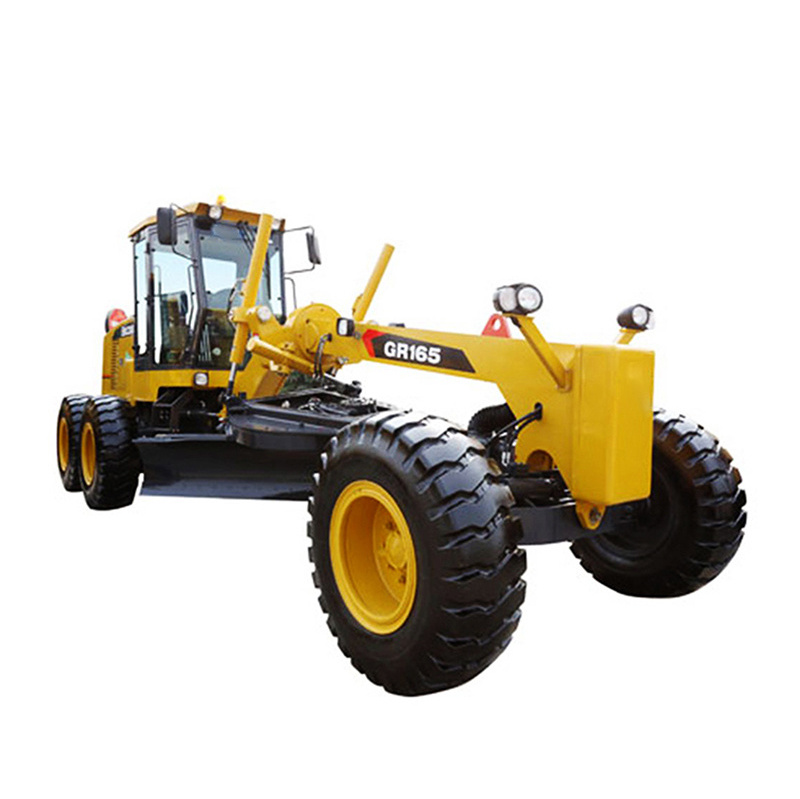

ORIEMAC Motor Grader Hydraulic Pump 100hp Motor Graders GR165
