Quick Details
-
Pulse Frequency:
-
0~100HZ
-
Pilot Arc Current:
-
5~200A
-
Rated Duty Cycle:
-
60%
-
Dimensions:
-
500*250*340MM
-
Usage:
-
TIG/MMA
-
Voltage:
-
1 PH 220V
-
Power:
-
7.5KW
-
Weight (KG):
-
15 KG
-
Warranty:
-
12 months
-
After-sales Service Provided:
-
Overseas service center available
-
Name:
-
TIG/MMA IGBT stainless steel welding machine, stainless steel welder
-
No load Voltage:
-
60-70V
-
Rated input capacity:
-
5.8KVA
-
Rated input current:
-
25A
-
Duty cycle:
-
40% at 25degree
-
Arcing way:
-
HF/LIFT
-
Efficiency:
-
85%
-
IP:
-
21
-
Insulation class:
-
F
-
Certification:
-
CE,CCC, ISO
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
SANYU
-
Arc Current:
-
5~200A
-
Pulse Frequency:
-
0~100HZ
-
Pilot Arc Current:
-
5~200A
-
Rated Duty Cycle:
-
60%
-
Dimensions:
-
500*250*340MM
-
Usage:
-
TIG/MMA
-
Voltage:
-
1 PH 220V
-
Power:
-
7.5KW
-
Weight (KG):
-
15 KG
-
Warranty:
-
12 months
-
After-sales Service Provided:
-
Overseas service center available
-
Name:
-
TIG/MMA IGBT stainless steel welding machine, stainless steel welder
-
No load Voltage:
-
60-70V
-
Rated input capacity:
-
5.8KVA
-
Rated input current:
-
25A
-
Duty cycle:
-
40% at 25degree
-
Arcing way:
-
HF/LIFT
-
Efficiency:
-
85%
-
IP:
-
21
-
Insulation class:
-
F
-
Certification:
-
CE,CCC, ISO

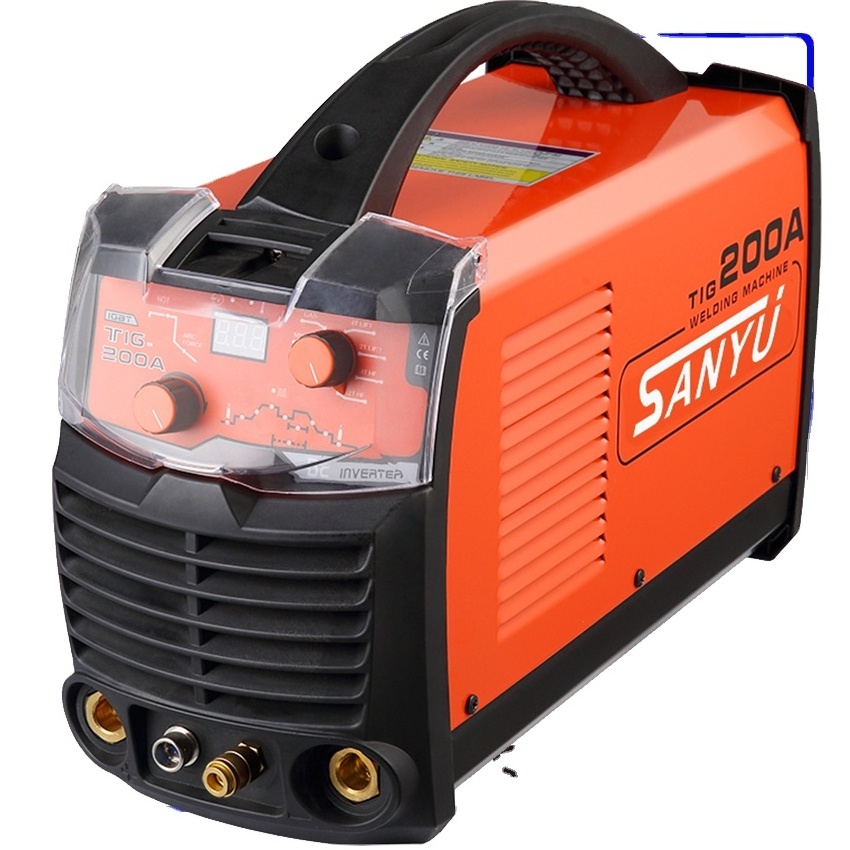

Sanyu TIG-200AP TIG/MMA IGBT stainless steel welding machine, stainless steel welder
Product Description
| 1.Adopt with advanced IGBT inverter technology,TIG/MMA strong output current | |||||
| 2.Under Europe standard designing & making | |||||
| 3.Over-current,over-voltage and over-heat protection | |||||
| 4.Low welding consumption and no noise | |||||
| 5.High duty cycle;portable and light in weight | |||||
| 6.Excellent welding performance;stable in structures | |||||
| 7.Suitable for pure tungsten needle | |||||
| 8.2T/4T function | |||||
| 9.Complete with TIG torch & earth clamp & electrode holder |
Detailed Specification List
| Item/Model | TIG-130AP | TIG-145AP | TIG-160AP | TIG-200AP |
| Voltage | 220V+/-15% | 220V+/-15% | ||
| Input Power | 4.6KW@TIG | 5.7KW@TIG | 5.7KW@TIG | 7.5KW@TIG |
| 6.2KW@MMA | 7KW@MMA | 7.5KW@MMA | 9KW@MMA | |
| Frequency | 50/60HZ | 50/60HZ | ||
| Current Range | 10-130A | 10-145A | 10-160A | 10-200A |
| No Load Voltage | 67V | 63V | 63V | 67V |
| Input Current | 21A@TIG | 24A@TIG | 24A@TIG | 34A@TIG |
| 28A@MMA | 32A@MMA | 34A@MMA | 42A@MMA | |
| Duty Cycle at 40℃ | 60%@130A | 60%@145A | 60%@160A | 60%@200A |
| 100%@100A | 100%@110A | 100%@145A | 100%@180A | |
| Efficiency | 85% | 85% | ||
| Power Factor | 0.75 | 0.75 | ||
| Slow Down | 0-5S | 0-5S | ||
| IP | IP23 | IP23 | ||
| Protection Class | H | H | ||
| Dimension | 407*140*203MM | 467*148*231MM | ||
| N,W | 6.5kgs | 6.8kgs | 8.5kgs | 9kgs |
