Quick Details
-
Brand Name:
-
Orient
-
Model Number:
-
MG200XK/AC220B(380)-2
-
Place of Origin:
-
China
-
Horsepower:
-
180W
-
Cable Length:
-
50-60M
-
Outlet Size:
-
G1/8
-
Power:
-
180W, 180W
-
Theory:
-
magnetic drive gear pump
-
Motor voltage:
-
AC220B = AC 220V/380V Tri-phase 4 pole
-
Rated pressure (bar):
-
5 bar
-
System pressure (bar):
-
-1~+20 bar
-
Ports:
-
G1/8" or G1/4"
-
Main applications:
-
Packing machine
-
Liquid:
-
water,oil chemical liquid
-
Usage:
-
Pesticide spraying
Quick Details
-
Application:
-
Automotive Industry
-
Pressure:
-
-1~+20 bar
-
Voltage:
-
AC220/380
-
Brand Name:
-
Orient
-
Model Number:
-
MG200XK/AC220B(380)-2
-
Place of Origin:
-
China
-
Horsepower:
-
180W
-
Cable Length:
-
50-60M
-
Outlet Size:
-
G1/8
-
Power:
-
180W, 180W
-
Theory:
-
magnetic drive gear pump
-
Motor voltage:
-
AC220B = AC 220V/380V Tri-phase 4 pole
-
Rated pressure (bar):
-
5 bar
-
System pressure (bar):
-
-1~+20 bar
-
Ports:
-
G1/8" or G1/4"
-
Main applications:
-
Packing machine
-
Liquid:
-
water,oil chemical liquid
-
Usage:
-
Pesticide spraying
commercial electrical AC magnetic gear pump Three phase AC220/380V motor gear pump high availability gear pump
|
Model |
MG |
2 |
00 |
X |
K |
/ |
AC220B (380) |
- |
4 |
|
Position |
MG200 full range of gear pumps |
1 |
|
2 |
|||||
|
1 |
Motor voltage |
AC220 = Single phase AC 220V AC220B = AC 220V Tri -phase AC380 = Tri-phase AC.380V |
|||||||
|
2 |
Motor Types |
2 = 2 pole Motor 4 = 4-pole Motor |
|||||||
|
Model |
Rated pressure (bar) |
System pressure (bar) |
Flow rate (ml/min) 50/(60)HZ |
Power (W) |
Voltage (V) |
Ports |
|
MG204XK/AC220B (380) - 4 |
5 |
-1~+20 |
50-800 /60-960 |
180 |
4 Poles Three-Phase/ 50 (60) HZ AC220 B(380) |
G1/8 ” or G1/4 ” |
|
MG209XK/AC220B (380) - 4 |
5 |
100-1800 / 120-2160 |
||||
|
MG213XK/AC220B (380) - 4 |
5 |
300-2400 / 360-2880 |
Overview :

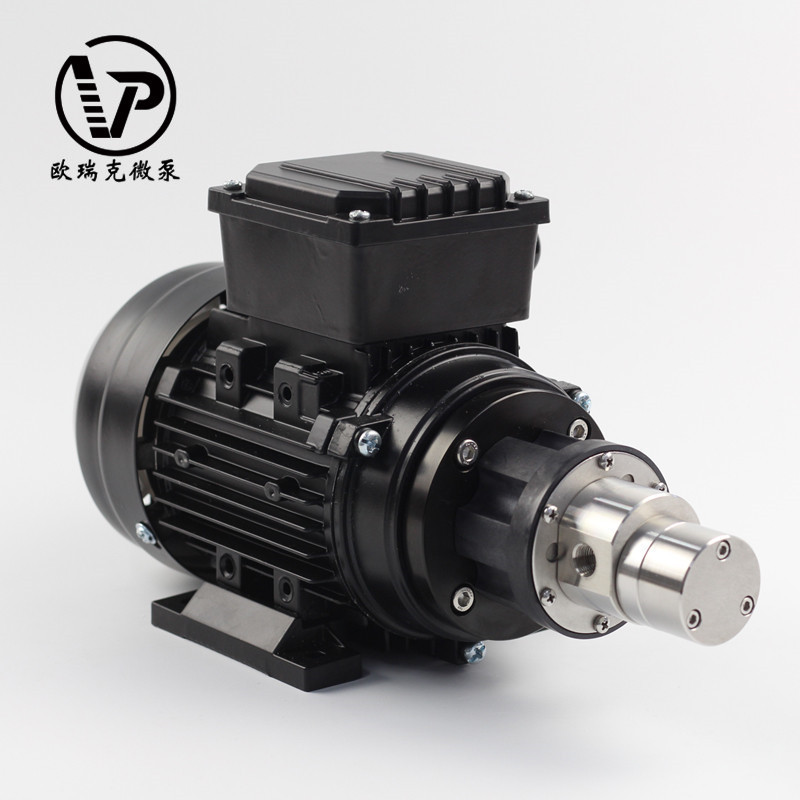

MG200XK/ A C2 20 B(380)-2 magnetic drive gear pump adopt the AC asynchronous motor as power; with the shaft ends of motor connected with the outer annual magnetic loops of REPM to drive the gear pump. This series are featured by constant speed, large torque and operating steadily for a long time. Meanwhile, under the power supply of 220V/380V50(60)Hz,it can regulate the flow of pump if adopting the tri-phase AC variable frequency motor and mating converter.The whole MG200 series can be equipped with the type AC asynchronous motor
Main applications:
Widely used in Science& teaching instrument; Transfer high temperature; Packing machine ;Medical treatment and medicine; Instrument testing; Fine chemistry; Pesticide spraying; Testing equipment.
