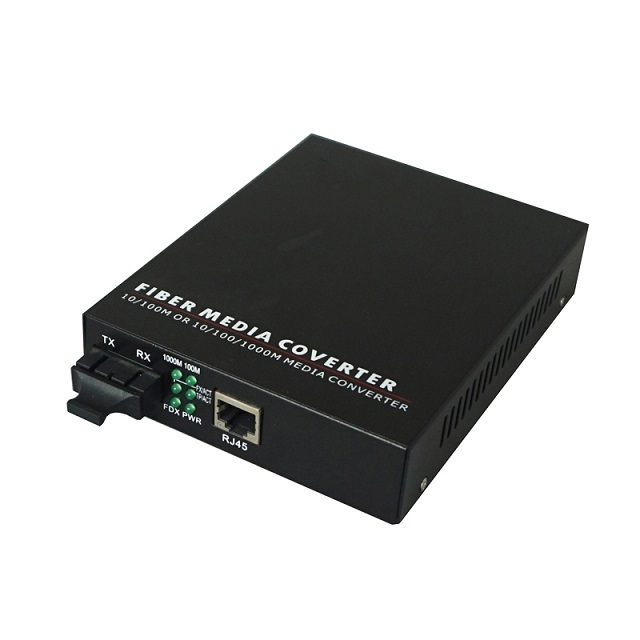

10 100 1000M FTTH Media Converter Internal Power Supply 120km RJ45 Fiber Optical Media Converter 1.25G TJ40MCISX

FOB Reference Price: Get Latest Price

≥1 Pieces

US $20

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: Fibertel

Use:: FTTH/FTTB/FTTx

Warranty Time:: 1 year

Product name:: Internal Media Convert SC

Part No.:: TJ40MCISX

Band Width:: RJ 45 Port: 10/100/1000Mbps; Optical Port: 1.25Gbps

Connectors:: UTP: RJ-45; Fiber connector: SC/ST/FC

UTP Cable:: Cat5 UTP cable (the max distance up to 100m)

Gross Weight:: 0.4 -1.0kgs

Dip switch function:: LFP(link failure alarm)function

LED Indicators:: 1000M, 100M, FX/ACT, TP/ACT, PWR, FDX

Transmission distance:: 0-120km

Quick Details

Type:: Fiber optic media converter

Model Number:: TJ40MCISX

Place of Origin:: Zhejiang, China

Brand Name:: Fibertel

Use:: FTTH/FTTB/FTTx

Warranty Time:: 1 year

Product name:: Internal Media Convert SC

Part No.:: TJ40MCISX

Band Width:: RJ 45 Port: 10/100/1000Mbps; Optical Port: 1.25Gbps

Connectors:: UTP: RJ-45; Fiber connector: SC/ST/FC

UTP Cable:: Cat5 UTP cable (the max distance up to 100m)

Gross Weight:: 0.4 -1.0kgs

Dip switch function:: LFP(link failure alarm)function

LED Indicators:: 1000M, 100M, FX/ACT, TP/ACT, PWR, FDX

Transmission distance:: 0-120km

Product Description

Description：
The 10/100/1000M adaptive fiber media converter through 100Base-TX or 1000Base-TX to 100Base-FX photoelectric conversion between the traditional 100M Ethernet or 1000M Fast Ethernet through the Fast Ethernet fiber optic link extended to 120 km range, to meet the long-distance, high-speed , High-bandwidth fast Ethernet working group user needs, the product performance is stable and reliable, designed to meet the Ethernet standards, and anti-lightning protection measures, especially for telecommunications, mobile, China Unicom, safe city, radio and television, railway, military, financial securities, customs, civil aviation, maritime transport, electricity, water conservancy and oil fields and other broadband data network and require high reliability data transmission or the formation of IP data transmission network area, it is the best application equipment for broadband campus network，intelligent broadband district fiber to the floor , Fiber to the home and video surveillance .
Feature:
* Support IEEE802.3u.100BASE-T and 100 BASE-FL protocol;
* Support full duplex or half duplex network communication, and with auto-negotiation capability;
* Supports the transmission of long packets of VLANs;
* Support for IEEE802.1Q protocol switch products to match the use;
* Support LINK LOSS link remote pre-alarm function;
* Modular design, plug and play, both stand-alone use, can also be used in 14-slot rack;
* Automatically adapt to 10Mbps,100Mbps and 1000Mbps environment, easy to upgrade the network;
* RJ45 port support through or cross automatic recognition function (AUTO-MDIX);
* REMOTE PAUSE function ensures the integrity of packet transmission;
* With broadcast storm protection, balance flow, isolation conflicts and detection errors and other functions;
* Meet the electromagnetic interference standard FCC Part15 Class A and CE Mark safety regulations;

Standard Protocol

IEEE 802.3, IEEE 802.3u, IEEE 802.3d,
IEEE 802.3x, IEEE 802.3Q
