A.S. Hot selling high penetration 70W Satellite Series LED Marine Aquarium LED Lighting Reef light Coral LED Light

Satellite Series LED

-- Design for Coral Propagation, Ideal Spectra for Optimal Coral Growth! Enjoy a marvelous colourful marine world anywhere you want with our Satellite Series LED lights:

Aquarium System Solution makes high intensity Satellite Series LED spotlights designed specifically for coral propagation and aquaculture experts.  Made for demanding reef keeping hobbyists, we offer high performance , energy saving and long-lasting lighting fixture.  Compact and modular, hobbyists have the flexibility to arrange lights according to different tank environments.  Whether as a standalone source or as supplemental lights, Satellite Series LED are fit for a variety of applications.

The new Satellite Series LED features COB LED with multichip and the ability to switch between spectrums – plus high transmission levels glass optics to ensure minimal light loss.

• A specially blended color with 380nm UV, 420nm Purple, 4540nm Blue, 460nm Blue, 14K Crisp White in a 2-channel COB LED

• LED optics made from glass (minimize light loss)

• UV Chips (true help in the healthy growth of corals)

• Advanced cooling system (longer life span)

Details For Satellite Series LED

Model No.: ASML-02 (70W)

1) product size and illumination coverage:

2) Spectrum distribution:

Most of the LED lights in the market have spectrum starting with 400nm or 420nm, but our Satellite series LED lights start with 380nm UV spectrum, which is very important for the growth of the Zooxanthellae in the corals and finally help the growth and colouration of the coral itself.

3) Other Advantages of the product:

Adopting COB technology with high power LED chips, colours are pre-mix then release evenly upon the tank. From our test result on our 68W model comparing with a famous brand model in 90W, we can see that our Satellite Series have advantages in:

1) our illumination intensity in the center and at the corners have much smaller difference, which means the growth of corals will be in adverage speed overall;

2) power-saving: our 68W model saves more than 30% power than that 90W model, but our illumination intensity is more than 50% higher! "It's really of high value for the money", as our customers said.

Advance cooling system design:

You can put your hands onto our lights when they are working. The temperature is warm to our hand, not hot at all. This is because we have a different cooling system design. See the following drawing indication.

Most of the LED round lights are drawing the salty air from buttom of the fixture. When the salty air reaches the very hot heat sink and becomes hot salty air and meet the cool PCB boards, the salt will be solidified and attached onto the PCB board and accelerate the corrosion and destroy the circuit as a result. The light fixture will be out of function soon.

Our Satellite Series LED lights are drawing the salty air from the top of the fixture. The air reach the PCBs in a cool status, and will not leave much salt on it, then goes to the heat sink at the buttom of the fixture. This will help the heat dissipation faster and make the light working in a much lower temperature. PCB boards are protected during the process than the old way and thus have much longer life span of the product.

4) Intelligent setting to present more natural illumination changes with the Optional controller:

USB port connection, one controller can set the auto running times for Sunrise/Sunset/Moonlight modes for all Satellite Series models, which will provide a more natural illumination changes for the corals. Plug-in, set, upplug, then go to set another light fixture.

5) PAR value of Satellite Series LED lights

The PAR value of our Satellite Series LED lights are very suitable for LPS and SPS. We have tested with our coral for the propagation.  We have tested with Acropora, Acans, Chalices, Euphyllia, Goniopora, Lobophytum, Zoanthids and Ricordeas.  All of them have a quick response to intensify the color and growth in size and colony, even the faster recovery from the deterioration of tissue.

LED light mounting options:

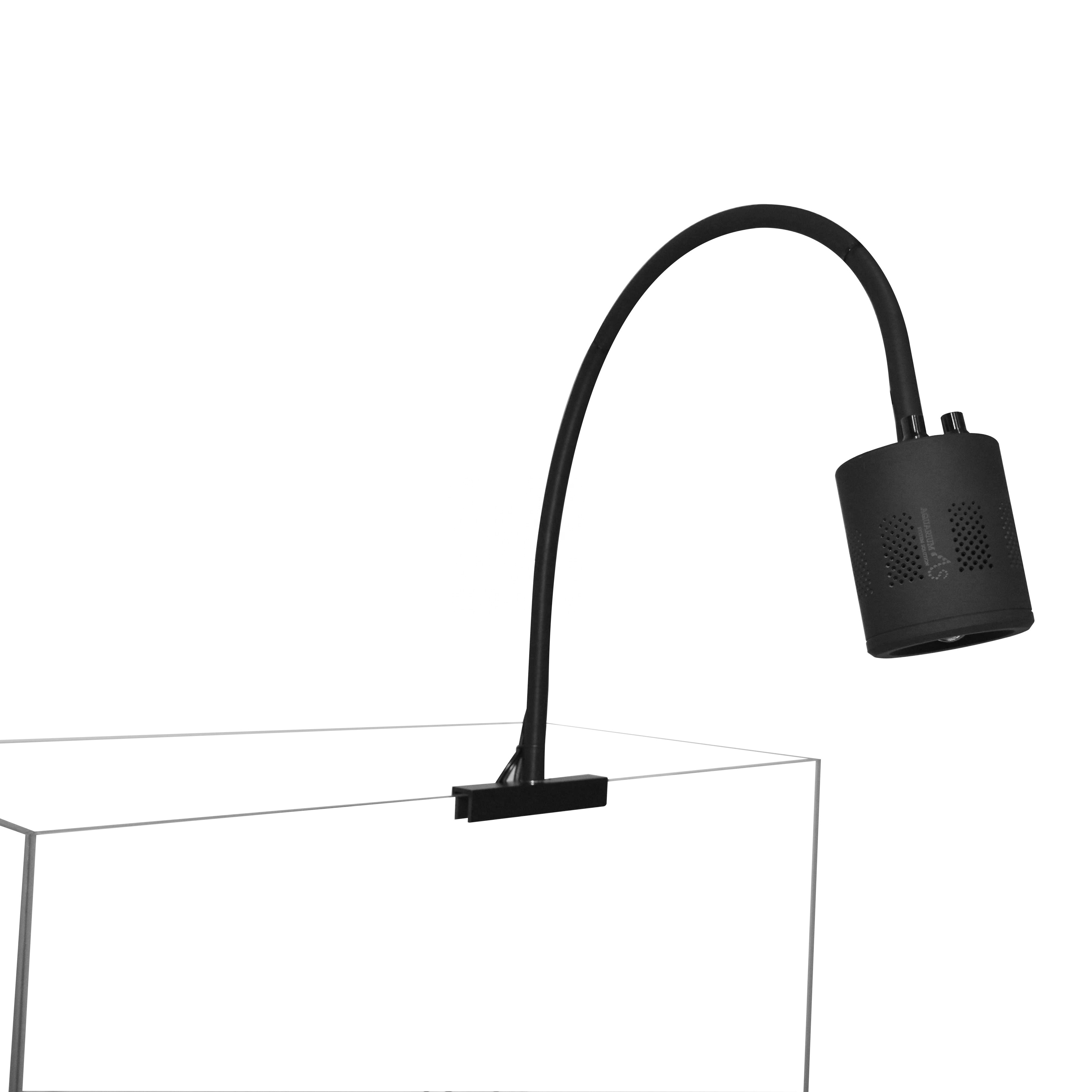

1) gooseneck mounting kit: suitable for 35W and 70W;

2) arc shape mounting kit: suitable for 35W, 70W, and 130W;

3) U-shape mounting kit: suitable for 35W, 70W, and 130W;

4) hanging kit:
