- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
LS-3000B
-
Warranty:
-
12 Months
-
Product name:
-
full rise scissor lift
-
Feature:
-
Automatic leveling
-
Material:
-
Steel
-
Color:
-
Customer Request
-
Capacity:
-
3500 Kgs ( 6600 Lbs)
-
PLATFORM LENGTH:
-
1450mm-2150mm
-
Min height:
-
105mm
-
Drive mode:
-
Electric Hydralic
-
Motor power:
-
2 .2kw
-
OEM:
-
Voltage, Size, Logo can be customized
Quick Details
-
Lifting Capacity:
-
3500KG
-
Place of Origin:
-
China
-
Brand Name:
-
BLUESKY
-
Model Number:
-
LS-3000B
-
Warranty:
-
12 Months
-
Product name:
-
full rise scissor lift
-
Feature:
-
Automatic leveling
-
Material:
-
Steel
-
Color:
-
Customer Request
-
Capacity:
-
3500 Kgs ( 6600 Lbs)
-
PLATFORM LENGTH:
-
1450mm-2150mm
-
Min height:
-
105mm
-
Drive mode:
-
Electric Hydralic
-
Motor power:
-
2 .2kw
-
OEM:
-
Voltage, Size, Logo can be customized
Product Description

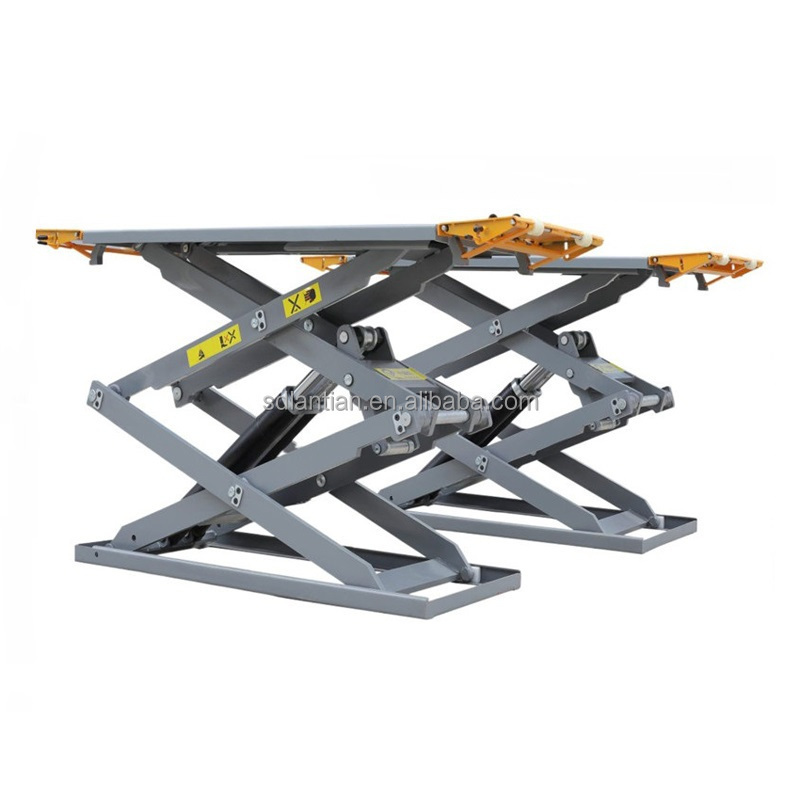

Car lift bridge
full rise scissor lift LS-3000B
Specification
car scissor lift/ mechanical workshop equipment
|
Name
|
Full rise scissor lift
|
|
Model
|
LS-3000B
|
|
Lifting weight
|
3500kg
|
|
Lifting height
|
1850mm
|
|
Minimum height
|
105mm
|
|
Table length
|
1450-2150mm
|
|
Table width
|
640mm
|
|
Lifting time
|
60S-50S
|
|
Air pressure
|
0.4mpa
|
|
Oil pressure
|
20mpa
|
|
Motor power
|
2.2kw
|
|
Voltage
|
380v /220v
|
|
Equipment weight
|
960kg
|
|
Unlock method
|
pneumatic unlock
|
|
Package
|
1600*740*550(mm); 650✘540✘1050(mm)
|
Features:
●3500kg lifting capacity;
●Ultra thin design, on ground installation, save space.
●Platforms extension for lifting long vehicles.
●Safety multiple mechanical locking system for best protection during moving.
●Double cylinder drive, safe and stable syncronization.
●CE certificated.
Details Images
On floor mounting
Ultrathin structure, surface mount, the initial landing height is 105mm, occupied small space.
Dual cylinder in each platform
Double cylinder drive, safe and stable synchronization
Extendable platform
Extendable platform suitable for more long chassis vehicles.
Optional accessory
1.A practical mobile kit for easy moving. 2.Rubber blocks for a secure lifting.
Mechanical safety lock
Mechanical safety lock engaged automatically, with pneumatic release when lowering.
Control unit
Easy to handle control unit (24 v control voltage) with emergency stop.
Packing & Shipping
Package for
electric scissor lift table
:
Fumigation-free wooden box packaging
Packing size: 1600*740*550(mm)
650✘540✘1050(mm)
