Quick Details
-
Brand Name:
-
SIMITIE
-
Model Number:
-
SCYT-I216GR
-
Place of Origin:
-
Guangdong, China
-
Products name:
-
Industrial Poe Switch
-
Forwarding Mode:
-
Store and Forward
-
PoE Standard:
-
IEEE802.3i, IEEE802.3u, IEEE802.3x
-
Distancce:
-
100M
-
Installation:
-
DIN-Rail or wall mounting
-
Dimension:
-
176*136*46.5mm
-
Weight:
-
1000g(About)
-
Shell:
-
Aluminum Alloy Housing
-
Certification:
-
CCC,FCC,CE,RoHS
-
Warranty:
-
5 Years
Quick Details
-
Transmission Rate:
-
10/100/1000Mbps
-
Communication Mode:
-
Full & Half-Duplex; MDI/MDI-X auto-adaptation
-
Switch Capacity:
-
32G
-
Brand Name:
-
SIMITIE
-
Model Number:
-
SCYT-I216GR
-
Place of Origin:
-
Guangdong, China
-
Products name:
-
Industrial Poe Switch
-
Forwarding Mode:
-
Store and Forward
-
PoE Standard:
-
IEEE802.3i, IEEE802.3u, IEEE802.3x
-
Distancce:
-
100M
-
Installation:
-
DIN-Rail or wall mounting
-
Dimension:
-
176*136*46.5mm
-
Weight:
-
1000g(About)
-
Shell:
-
Aluminum Alloy Housing
-
Certification:
-
CCC,FCC,CE,RoHS
-
Warranty:
-
5 Years
Products Description

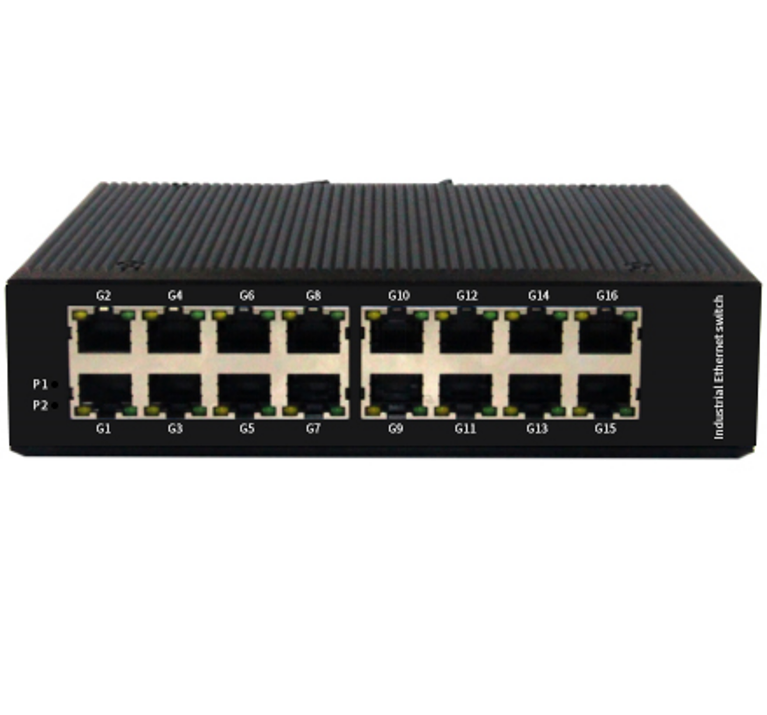

Din Rail Power Supply 16-port 10/100/1000m Industrial Poe Fiber Switch Standard 12~57vdc 48~57vdc(poe)
ODM/OEM WELCOME!
Main Features
- Supports Sixteen 10/100/1000BASE-T Ethernet ports.
- DC10-58V redundancy power, reverse polarity protection.
- Using industrial grade materials, Passed the EMC industry class 4 standard.
- IP40 rated protection, low power consumption, -40-85°C operating temperature.
- Corrugated high-strength aluminum alloy shell, DIN-rail installation
- Passed testing and certification by the Ministry of Industry and Information Technology, CCC, FCC, CE, RoHS, etc.
Specification
|
Standards
|
IEEE802.3i，IEEE802.3u，IEEE802.3x
|
|
|
|
|||
|
Switching Characteristics
|
Forwarding Rate: 23.8Mpps
|
|
|
|
|||
|
|
Transfer Mode: store-and-forward
|
|
|
|
|||
|
|
Packet Buffe: 4M
|
|
|
|
|||
|
|
Switching Capacity: 32Gbps
|
|
|
|
|||
|
|
Delay Time: ＜10μs
|
|
|
|
|||
|
MAC address table
|
8K
|
|
|
|
|||
|
Interface
|
Electrical Port: 10/100/1000 Base-T(X), RJ45 auto speed control
|
|
|
|
|||
|
|
Half/full duplex and MDI/MDI-X auto-adaptation
|
|
|
|
|||
|
Transmission Distance
|
Twisted Pair: 100M
|
|
|
|
|||
|
Indicator
|
Power Indicator: PWR1 PWR2（Blue）POE （Yellow）
|
|
|
|
|||
|
|
Port Indicator: Link/ACT
|
|
|
|
|||
|
Power
|
Input Voltage: DC10-58V Dual Power Supply Redundancy
|
|
|
|
|||
|
|
Access terminal: 6-core 5.08mm spacing plug-in terminal
|
|
|
|
|||
|
|
Power: ＜10W
|
|
|
|
|||
|
|
-
|
|
|
|
|||
|
|
Overload Protection: Support
|
|
|
|
|||
|
|
Reverse Connection Protection: Support
|
|
|
|
|||
|
|
Redundancy Protection: Support
|
|
|
|
|||
|
Physical Characteristics
|
Shell: aluminum alloy housing
|
|
|
|
|||
|
|
Heat dissipation：Fanless design, natural heat dissipation
|
|
|
|
|||
|
|
Protection: IP40
|
|
|
|
|||
|
|
Dimensions：176mm * 136mm * 46.5mm( L*W*H )
|
|
|
|
|||
|
|
Weight：1000g(About)
|
|
|
|
|||
|
|
Installation：DIN-Rail mounting, wall mounting
|
|
|
|
|||
|
Environmental Conditions
|
Operating Temperature: -40~85℃
|
|
|
|
|||
|
|
Storage Temperature: -40~85℃
|
|
|
|
|||
|
|
Ambient Relative Humidity: 5%~95% (non-condensing)
|
|
|
|
|||
|
Warranty
|
MTBF:300000h
|
|
|
|
|||
|
|
Warranty Period：5 years
|
|
|
|
|||
|
Certification
|
CCC、FCC、CE、RoHS
|
|
|
|
|||
|
Industry Standard
|
EMI：FCC CFR47 Part 15,EN55022/CISPR22,Class A
|
|
|
|
|||
|
|
EMS
|
IEC 61000-4-2(ESD) ±8kV(contact),±15kV(air)
|
|
|
|||
|
|
|
IEC 61000-4-3(RS) 10V/m(80MHz-2GHz)
|
|
|
|||
|
|
|
IEC 61000-4-4(EFT) Power Port:±4kV；Data Port:±2kV
|
|
|
|||
|
|
|
IEC 61000-4-5(Surge) Power Port:±2kV/DM,±4kV/CM; Data Port:±2kV
|
|
|
|||
|
|
|
IEC 61000-4-6(CS) 3V(10kHz-150kHz)；10V(150kHz-80MHz)
|
|
|
|||
|
|
Physical
|
IEC 60068-2-6(Vibration)
|
|
|
|||
|
|
|
IEC 60068-2-27(Shock)
|
|
|
|||
|
|
|
IEC 60068-2-32(Free Fall)
|
|
|
|||
Certifications
