Quick Details
-
Touch Screen Type:
-
Not Touch Screen
-
Hard Disk Capacity:
-
1M
-
Supporting system:
-
IOS & Android
-
Communication::
-
Bluetooth USB
-
Color:
-
Custom
-
SDK:
-
YES
-
Certification:
-
Please contact us for details
-
Support cards:
-
MSR&CHIP&NFC
-
Securiy:
-
Tamper device for user's security
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ZCS
-
CPU:
-
32-bits high-performance security processor
-
Touch Screen Type:
-
Not Touch Screen
-
Hard Disk Capacity:
-
1M
-
Supporting system:
-
IOS & Android
-
Communication::
-
Bluetooth USB
-
Color:
-
Custom
-
SDK:
-
YES
-
Certification:
-
Please contact us for details
-
Support cards:
-
MSR&CHIP&NFC
-
Securiy:
-
Tamper device for user's security

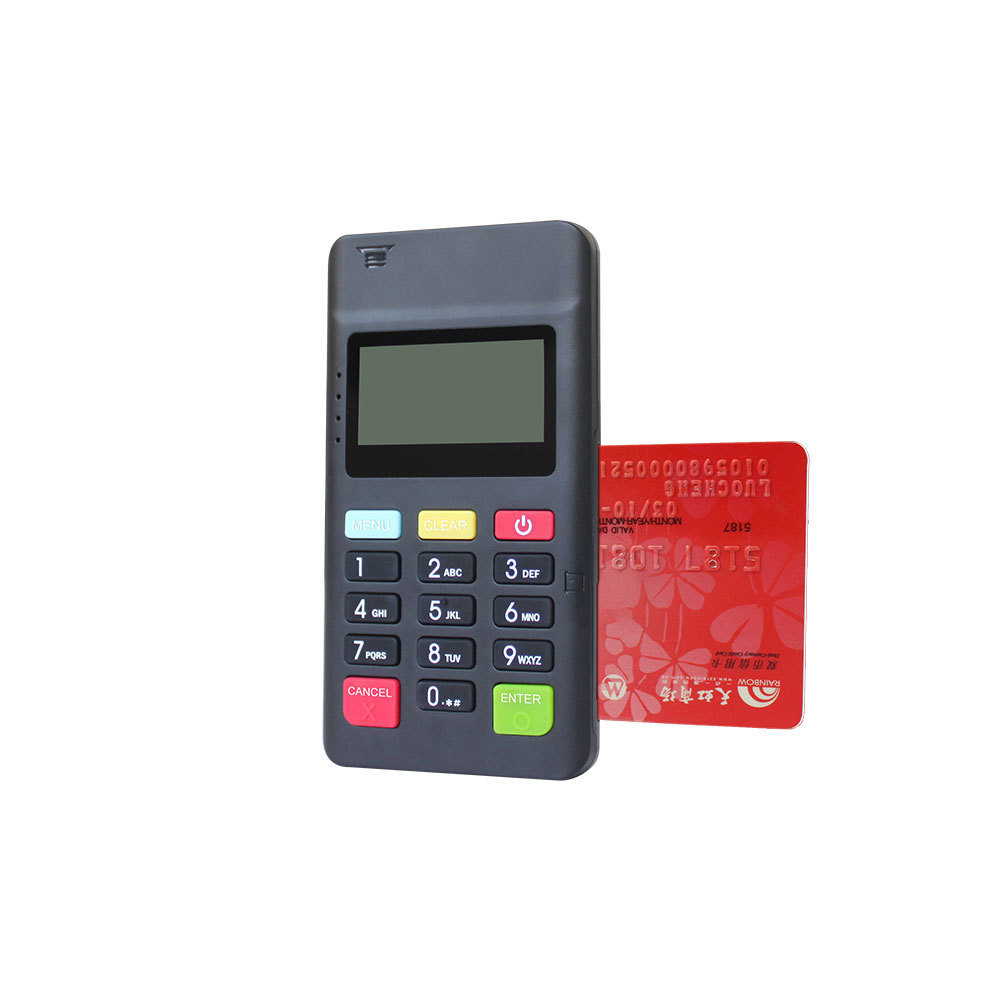

4G bluetooth MPOS terminal android MPOS
1. Introduction
Z70 is a MPOS with physical keyboard and 1.77 inch TFT LCD screen. It supports magnetic card, IC card and RFID card. Through bluetooth and mobile terminal, Z70 is able to achieve secure process. Pocket size, compact, secure and reliable. It’s the best choice for you.
2. Feature
Pocket size, compact, easy to carry
Physical keyboard and tamper device for user ’ s security
Low power consumption,200mAh Li-ion battery,long standby time
1.77 inch TFT LCD screen for display
With Built-in buzzer and 4 LED indicator for error alerts
3. Technical parameters
|
Model |
Z70 |
|
CPU |
Security Chip |
|
Display |
1.77 inch TFT screen(128*64) |
|
Magnetic Card |
1/2/3 track, bidirectional swipe, ISO 7811 |
|
IC card |
ISO 7816 |
|
Contactless card reader |
Support ISO/IEC 14443 Type A&B,Mifare,felica card |
|
USB interface |
Type C USB ×1 |
|
Communication |
Dual mode:Support BLE protocol, SPP protocol, compatible with iOS, android |
|
Encryption Algorithm |
DES, 3DES, RSA, SHA-256, AES, etc. |
|
Battery |
Lithium polymer rechargeable battery, 3.7V, 200mAh |
|
Operate current |
50mA-90mA |
|
Standby current |
31mA-45mA; Auto power off without operation in 5 min |
|
Adapter |
5V 80mA |
|
Size |
111mm×59mm×13.2mm |
|
Certificates |
Please contact us for details |
