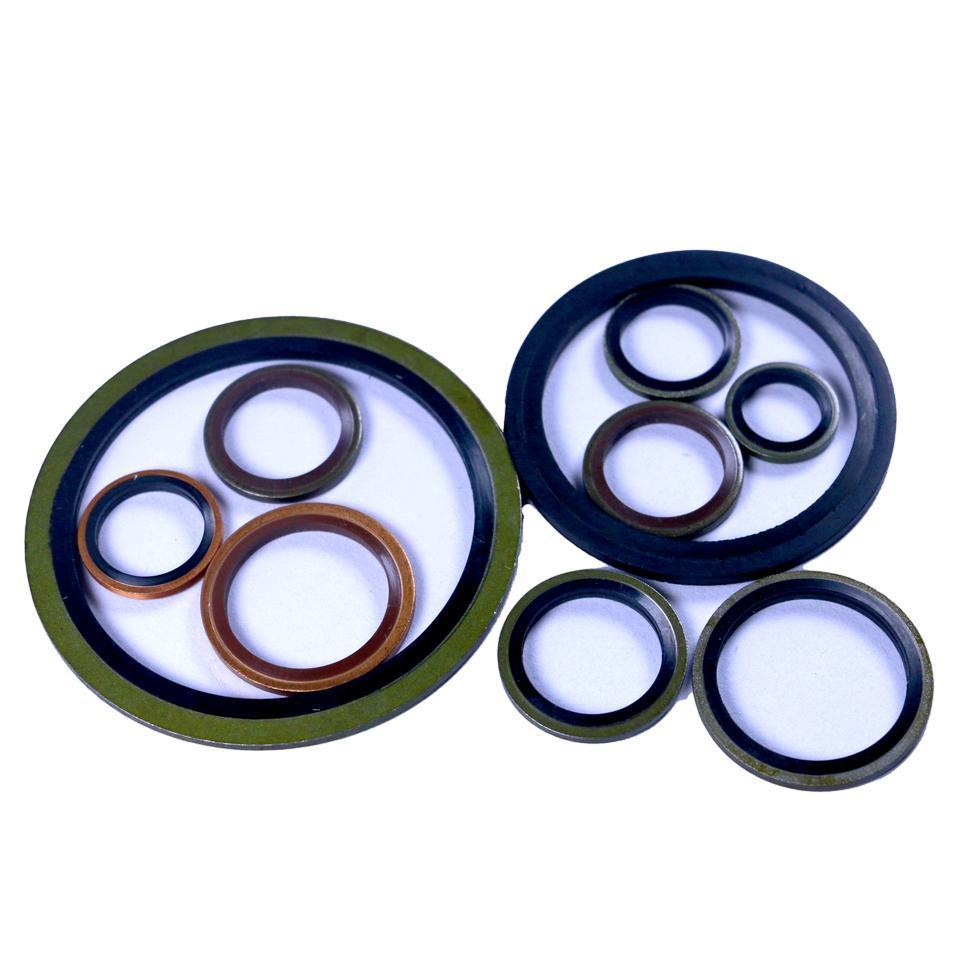

Bonded Seal Gasket Composite Gasket Iron Rubber Stainless Steel Compound Gasket for agricultural machinery

Bonded Seal Gasket Composite Gasket Iron Rubber Stainless Steel Compound Gasket for agricultural machinery

FOB Reference Price: Get Latest Price

≥100 Pieces

US $0.25

≥1000 Pieces

US $0.23

≥1500 Pieces

US $0.1

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Size:: Custom Size

Material Type:: metal rubber Stainless Steel

Material:: NBR FKM

Color:: Customized Color

MOQ:: 1000PCS

Packing:: PE Plastic Bag + Carton

Sample:: Freely

Type:: Rubber Products

Hardness:: 50-90 Shore

Feature:: stronger anti-impact performance,prolong machine life

Quick Details

Place of Origin:: HEB

Brand Name:: TEYUN

Model Number:: combination gasket

Size:: Custom Size

Material Type:: metal rubber Stainless Steel

Material:: NBR FKM

Color:: Customized Color

MOQ:: 1000PCS

Packing:: PE Plastic Bag + Carton

Sample:: Freely

Type:: Rubber Products

Hardness:: 50-90 Shore

Feature:: stronger anti-impact performance,prolong machine life

Specification

Place of Origin	HEB
Brand Name	Teyun
Product name	Combination Gasket
Material	Stainless Steel
Color	Customer Request
Standard or Nonstandard	Standered
Packing	Plastic Bag
Sample	Availabe
Quality	High-Quality
PAYMENT	T/T
Advantage	Low Cost
Feature	Excellent Sealing Performance

Product Description

Product details

Rubber

High-quality rubber.

Advantage: High temperature resistance, wear resistance,sealing performance,oil resistance.

Carbon steel

Silver-white galvanized carbon steel,thick washer,smooth surface without burrs.

Advantage: Pressure-resistant,wear resistance,corrosion-resistant.

Material

1. Carbon steel + nitrile / fluorine glue.

2.Stainless steel + nitrile / fluorine glue.

Temperature

Nitrile rubber: limit temperature -40~120 °C, recommended long-term use temperature -20~100 °C Fluoroelastomer

Limit temperature -40~240 °C, recommended long-term use temperature -20~220 °C Pressure

Can reach about 40MPa Color

1. Silver White + Black/Brown

2.Yellow + Black / Brown

Rubber Material

FKM (Fluorocarbon)

Service Temperature
For general type Viton the service temperature is better limited to approximately from -26 C to 232 C in static applications,
though the service temperature can arrive to 275 C at short time In dynamic applications, it is suitable between -15 C and 200 C.
Application
Because FKM has excellent resistance of high temperature, oil, solvent, flame, chemicals and weathering, it is usually applied in
automotive, chemical processing, aerospace and many other industries.

NBR(nitrile butadiene rubber)

Service Temperature For NBR the service temperature can be designed from -55 C to 100 C or up to 130 C depending on differenacrylonitrile content and formula. Application NBR compounds have excellent resistance to abrasion, non-polar oils and solvent, water and permeation (higher acrylonitrile content will be better). NBR also can be used in conditions of dilute acids, alkalis and salt solution at low temperatures.

PTFE

Service Temperature
PTFE's mechanical properties are low compared to other plastics, but its properties remain at a useful level over a wide
temperature range of -100°F to +400°F (-73°C to 204°C).
Application
PTFE is the common sealing material used for making wear ring, backing-up ring, o ring, gasket, etc. It can be found in metallurgy
machinery, petrochemical machinery, engineering machinery, and light industrial machinery.

Polyurethane

Polyurethane oil seal is mainly used for oil pressure cylinder, easy to install and can scrape off the dust attached to the piston
rod. Green polyurethane oil seal has a slightly lower hardness, while blue has a higher hardness and can withstand greater
pressure. Polyurethane oil seal has good physical and mechanical properties, wear resistance and oil resistance, suitable for the
most demanding working conditions, extremely well to prevent the entry of external impurities, so as to achieve excellent sealing
performance, is the most commonly used seal in the middle and high pressure hydraulic cylinder.
