Round broaches with INNOVA coating, WITH TUV, ISO9001, broaching cutters manufacturers

Round broaches with INNOVA coating, WITH TUV, ISO9001, broaching cutters manufacturers

FOB Reference Price: Get Latest Price

≥1 Pieces

US $50

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Accuracy:: classAA

Outstanding:: ISO9001

Factory:: Own factory

Quick Details

Place of Origin:: Heilongjiang, China

color:: aeneous

coating:: INNOVA

Accuracy:: classAA

Outstanding:: ISO9001

Factory:: Own factory

We promise good service, high quality and quick delivery!

----Harbin Tool Works

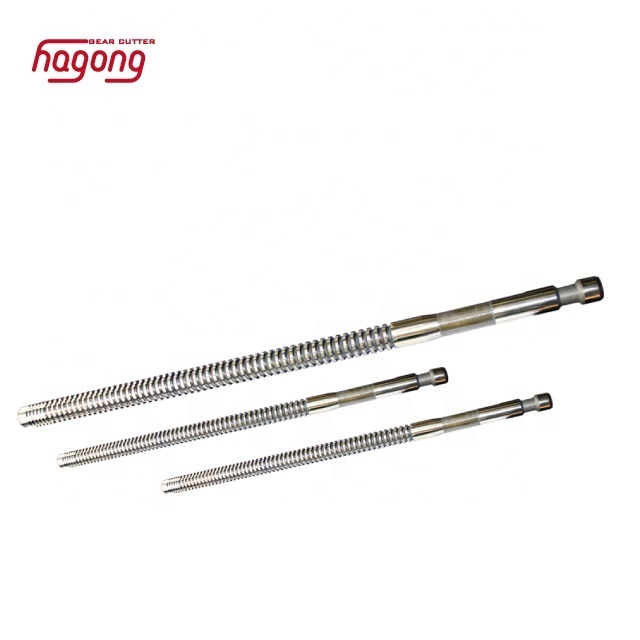

Round broaches

1. UP to GB classAA accuracy
2. shank type
3. ISO9001(2008)
4. MORE than 100 clients' praise
5. reasonable price

6. material: Asp2030, 2052; Hss M2 M35 M42

7. DETAILS OF specification

Nominal Diameter	Overall Length	Broaching Length	work piece Hole Diameter
10	380.440	10~30	9.3
11	385.450	10~30	10.3
12	385.450	10~30	11.3
13	395.460	10~30	12.3
14			13.3
15			14
16	400~520	10~50	15
17	400~520	10~50	16
18	405~530	10~30	17
19			18
20			19
22	400~655	10~80	21
24			23
25			24
26			25
28	465~745	18~120	27
30	480~750	18~120	29
31	480~750	18~120	29.5
32	500~750	18~120	30.8
34	500~760	18~120	32.9
35			33.9
36			34.8
38			36.8
40			38.8
42	500~770	30~120	40.8
45	500~770	30~120	43.8
48	560~750	30~120	46.7
50			48.7
52			50.8
54			52.8
55			53.8
58			56.8
60			58.8
62			60.8
65	570~760	30~120	63.8
70			68.8
75			73.8
80			78.8
85			83.8

HARBIN TOOL WORKS was set up in 1990, mainly produced high complex tools in producing gears. We have registered the certification of ISO9001 and had export authority in 2008. We provide first-class service for customers with first-class equipment, first class-management, and first-class quality.

The major of our products: Spiral bevel gear alternate roughing cutter of high accuracy and efficiency, Gear hobs, broaches, double-disc straight bevel gear cutter, gear shaving cutters are sold to almost all the enterprises of gear producing in China, and also sold to Japan, Korea, Pakistan , Poland, Taiwan and many places on mainland. We have gained great public praise and reputation over the past 23 years.

Tell us about……

Tell us the module , pressure angle , outside diameter , length , hole diameter , direction of turning and other specifications or send us the drawing sheet;
