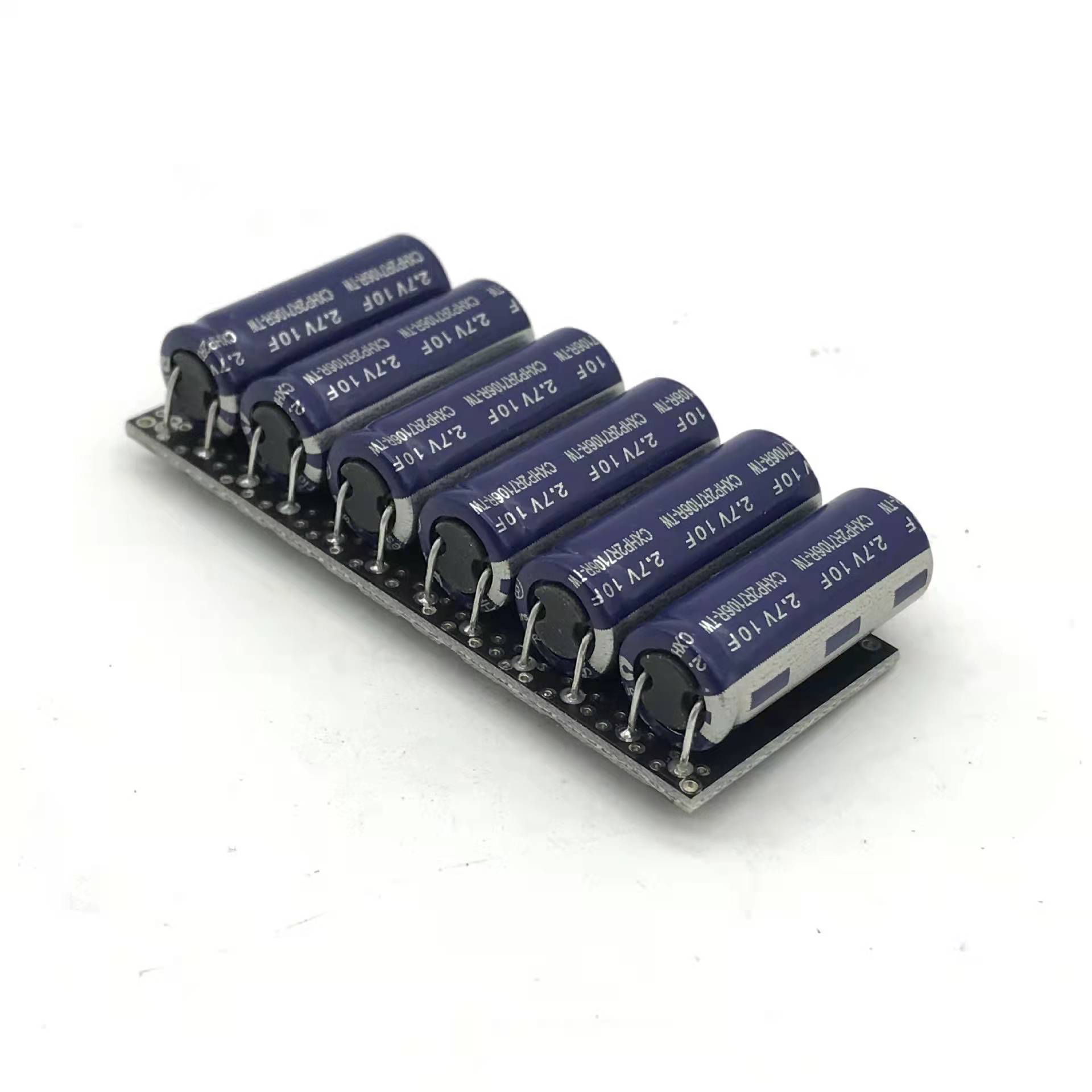

16V 2F Super Farad Capacitor Module Super Capacitors for Protection Board

TYP E : X1/X2 CLASS (330/350/380VAC)

FEATURES

APPLICATIONS

• Provides interference suppression, all safety approval
• Overvoltage stress withstanding
• Self-healing properties
• Active and passive flame retardant
• High voltage, applicable to the lighting and lamp

• Ideal for use in line bypass, antenna coupling, across-the-line and spark killer circuits.
• Available for EMI filter.
• Switching power supply applications.
• Business machines appliances, such as: typewriters, adding machines, computer displays and monitors.
• Household appliances, such as: mixers, fans, coffee grinders , audio and TV circuits.
• Thyristor and triac appliances, such as: dimmers.

SPECIFICATIONS

Dielectric

Polypropylene film

Electrodes

Vacuum evaporated metal

Coating

Encapsulated in flame retardant

(UL94V-0) plastic case and epoxy resin end seal.

Leads

Radial leads of tinned wire

Climatic Catalogue

40 / 110 / 21

Capacitance and Class

0.0047uF ~ 1.0u F (X1 class)

0.0047uF ~ 10uF (X2 class)

Capacitance Tolerance

J = ± 5%  K = ±10%  M = ± 20%

Dissipation Factor (Tangent of Loss)

<= 0.1% at 1KHz and 20 ℃

<= 0.3% at 10KHz and 20 ℃

Voltage Proof

T-T 1634V.DC 60 Sec. or 2100V.DC 1 Sec.

T-C 2260V.AC 50/60Hz 60 Sec.

Insulation Resistance

C <= 0.33uF  IR >= 30,000MΩ

C > 0.33uF  IR >= 10,000MΩ / uF
