Quick Details
-
Table Size:
-
0.62*0.87m
-
Overall Dimensions:
-
2.53*1m
-
Weight:
-
2950 kg
-
Marketing Type:
-
New Product 2023
-
Application:
-
Widely
-
Color:
-
Customers' Requirements
-
After-sales Service Provided:
-
Online Support
-
Certification:
-
CE ISO
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Shandong, China
-
Power:
-
Other
-
Table Size:
-
0.62*0.87m
-
Overall Dimensions:
-
2.53*1m
-
Weight:
-
2950 kg
-
Marketing Type:
-
New Product 2023
-
Application:
-
Widely
-
Color:
-
Customers' Requirements
-
After-sales Service Provided:
-
Online Support
-
Certification:
-
CE ISO
|
SPECIFICATIONS
|
|
|
||
|
|

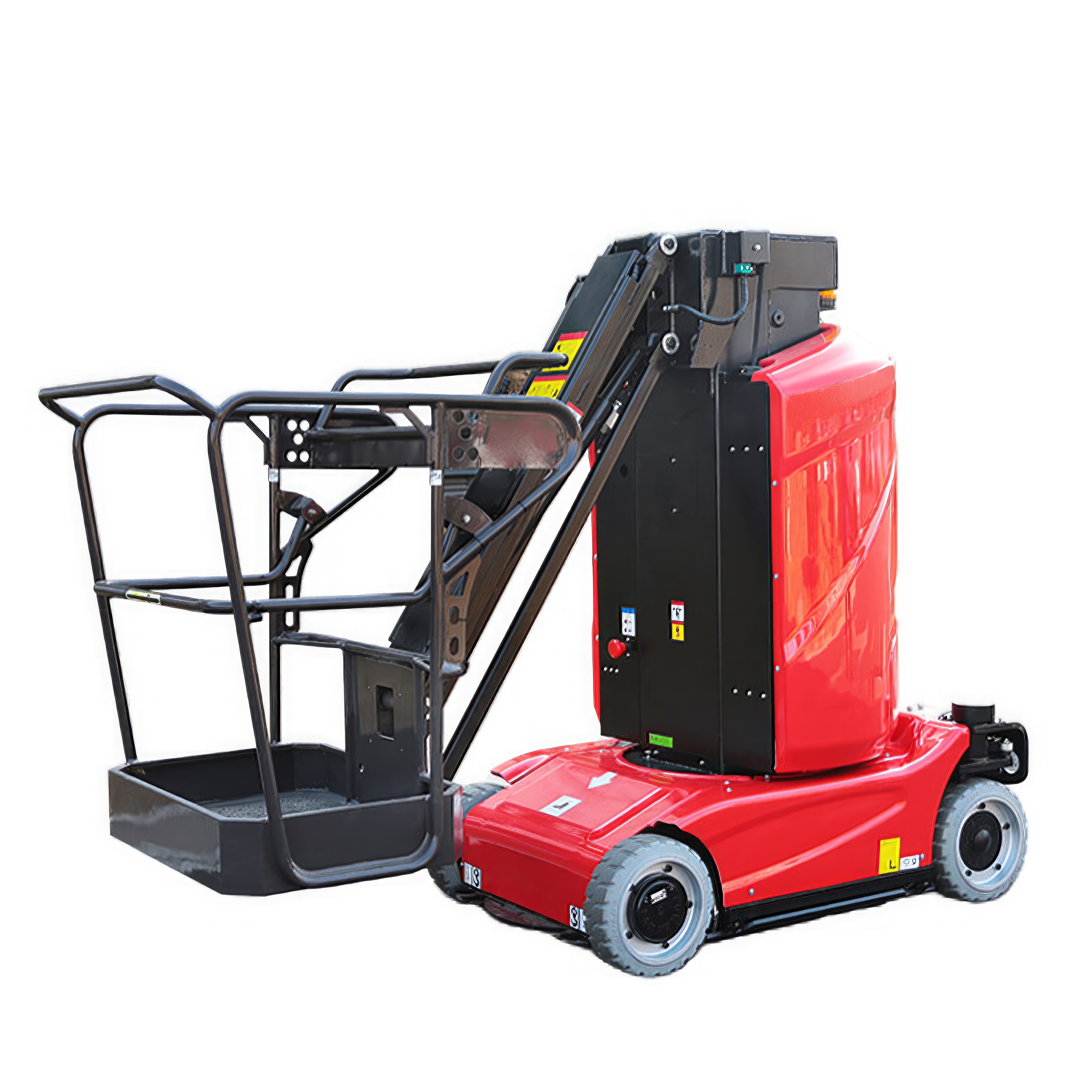

MODEL
|
AMWP11.2-8100
|
||
|
|
Max. Working Height
|
11.2m
|
||
|
|
Max. Platform Height
|
9.2m
|
||
|
|
Max. Horizontal Reach
|
3m
|
||
|
|
Up and Over Height
|
7.89m
|
||
|
|
Guardrail height
|
1.1m
|
||
|
A
|
Overall Length
|
2.53m
|
||
|
B
|
Overall Width
|
1.0m
|
||
|
C
|
Overall Height (stowed)
|
1.99m
|
||
|
|
Platform Dimension
|
0.62*0.87m
|
||
|
|
Ground Clearance(Stowed)
|
70mm
|
||
|
|
Ground Clearance(Raised)
|
19mm
|
||
|
D
|
Wheelbase
|
1.22m
|
||
|
|
Loading capacity
|
200kg
|
||
|
|
Occupants
|
2
|
||
|
|
Turning Radiusflnside/Outside)
|
0.23/1.65m
|
||
|
|
Turret Rotation
|
345°
|
||
|
|
Jib Movement
|
130°
|
||
|
|
Travel Speed(Stowed)
|
4.5km/h
|
||
|
|
Travel Speed(Raised)
|
0.5km/h
|
||
|
|
Up/Down Speed
|
42/38s
|
||
|
|
Max. Working Slope
|
X-2.5° , Y-2.5°
|
||
|
|
Tyres
|
381*127mm
|
||
|
|
Driving Motor
|
24V/0.9kW
|
||
|
|
Lifting Motor
|
24V/3kW
|
||
|
|
Battery
|
24V/240Ah
|
||
|
|
Charger
|
24V/30A
|
||
|
|
Weight
|
2950kg
|
||
FEATURES
Standard Items
|
•AC driving motor
|
• Tubing Explosion-Proof System
|
•Manual Brake Release
|
|
• Proportional Joystick Controls
|
• Fault Diagnosis System
|
•Lanyard Attachment Point
|
|
• Self-Locking Gates
|
• Fault Diagnosis System
|
•Tie-Down And Lifting Points
|
|
• Drivable At Full Height
|
• Motion Alarm
|
•Platform Load Sense System
|
|
• Non-Marking Tires
|
• 345° Turret Rotation
|
•Emergency Stop Button
|
|
• 4X2 Drive
|
• Horn
|
•Swing out Components Cover
|
|
• Automatic Braking System
|
• Hour Meter
|
•Overload Sensor Alarm
|
|
• Emergency Descent System
|
•Charging Protection System
|
•Charging Indicator
|
|
• Flashing Beacon
|
• Automatic Pothole Protection
|
• Automatic Pothole Protection
|
1. What is your MOQ?
Answer: Minimum order of 1 set
2. What payment methods are supported?
Answer: We support L/C and T/T
3. I have no experience, this is the first installation, is it easy?
Answer: We have professional installation manuals and installation videos, and provide online guidance. Our elevators are all connected by screws and do not require welding. The installation process is like building blocks. Normally, the installation can be completed in 2-3 days
4. Is the elevator safe? What if someone gets trapped inside?
Answer: The elevator has an emergency descending function and an emergency power supply. When the power is suddenly cut off at home, the UPS will immediately play a role so that the elevator can descend normally. After the power returns to normal, the UPS will automatically store electricity for emergency needs .
5. Does it need frequent maintenance? What should I do if a part is broken?
Answer: There is no need for frequent maintenance. The only vulnerable parts are seal rings. We will bring more seal rings when we deliver the goods. Use them for about 6 months to observe the state of the hydraulic oil. If the hydraulic
oil is thick and black, you need to replace the hydraulic oil. Our after-sales service The service period is one year, and any
parts that are not damaged by human beings within one year will be reissued free of charge. Any problems in use can immediately contact us to solve the problem.
2. What payment methods are supported?
Answer: We support L/C and T/T
3. I have no experience, this is the first installation, is it easy?
Answer: We have professional installation manuals and installation videos, and provide online guidance. Our elevators are all connected by screws and do not require welding. The installation process is like building blocks. Normally, the installation can be completed in 2-3 days
4. Is the elevator safe? What if someone gets trapped inside?
Answer: The elevator has an emergency descending function and an emergency power supply. When the power is suddenly cut off at home, the UPS will immediately play a role so that the elevator can descend normally. After the power returns to normal, the UPS will automatically store electricity for emergency needs .
5. Does it need frequent maintenance? What should I do if a part is broken?
Answer: There is no need for frequent maintenance. The only vulnerable parts are seal rings. We will bring more seal rings when we deliver the goods. Use them for about 6 months to observe the state of the hydraulic oil. If the hydraulic
oil is thick and black, you need to replace the hydraulic oil. Our after-sales service The service period is one year, and any
parts that are not damaged by human beings within one year will be reissued free of charge. Any problems in use can immediately contact us to solve the problem.
