Quick Details
-
Dimension(L*W*H):
-
Customized
-
Weight:
-
1550 KG
-
Place of Origin:
-
Henan, China
-
Voltage:
-
380V/220V
-
Product name:
-
Frozen French Fries Production Line
-
Material:
-
SUS 304
-
Capacity:
-
100kg/h
-
Function:
-
potato chips machine
-
Feature:
-
Custom-made french fries line
-
Application:
-
potato/Sweet potato/carrots/cassava processing machine
-
Operation:
-
Easily
-
Warranty:
-
One year
-
Porgrammer controlled system:
-
Siemens
-
Servo Motor:
-
Schneider
Quick Details
-
Machinery Capacity:
-
customized
-
Brand Name:
-
QIXIN
-
Year:
-
2020
-
Dimension(L*W*H):
-
Customized
-
Weight:
-
1550 KG
-
Place of Origin:
-
Henan, China
-
Voltage:
-
380V/220V
-
Product name:
-
Frozen French Fries Production Line
-
Material:
-
SUS 304
-
Capacity:
-
100kg/h
-
Function:
-
potato chips machine
-
Feature:
-
Custom-made french fries line
-
Application:
-
potato/Sweet potato/carrots/cassava processing machine
-
Operation:
-
Easily
-
Warranty:
-
One year
-
Porgrammer controlled system:
-
Siemens
-
Servo Motor:
-
Schneider
Industrial Fully Automatic Potato Chips Making Machine Potato Frozen French Fries
Production Line
Product Description

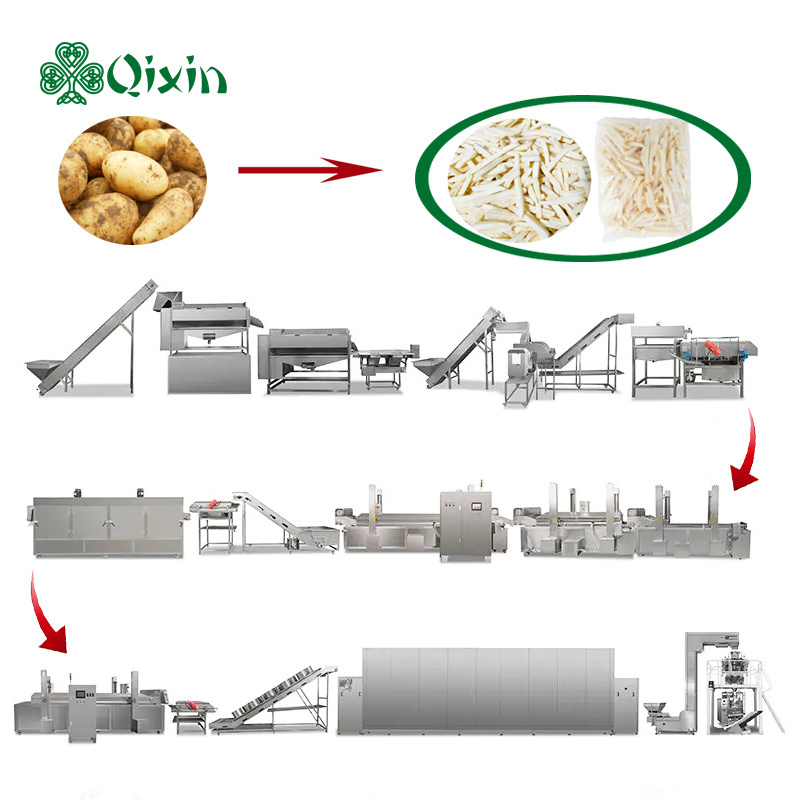

This potato chips production ine is of high automation,large capacity,low energy consumption,labor-saving,small area occupation,easy operation,good quality and high profit return.The line mainly includes the process of potato washing peeling, cutting, washing, blanching, dewatering, frying, deoiling ,flavoring and packing.We will provide formula and technology guidence free of charge to make sure you can make high quality and delicious potato chips.With small changes and add freezer to the line,you can make frozen french fries.
Motor: copper wire National standard motor
Technology
| Item | Products | Parameter |
| 1 | Loading elevator |
Dimension: 2535x700x2150mm
Material: stainless steel+food grade pvc
Power : 0.37kw 380v
|
| 2 | Spiral cleaning and peeling machine |
Dimension: 3050x700x1600mm
Material: stainless steel
Brush: nylon
Power: 2.75kw 380V
|
| 3 | Picking line |
Dimension: 3000x740x1100mm
Material: stainless steel+food grade pvc Power : 0.37kw 380v |
| 4 | Loading elevator |
Dimension: 1800x700x1600mm
Material: stainless steel+food grade pvc Power : 0.37kw 380v |
| 5 | Cutter |
Dimension: 745x590x1385mm
Material: stainless steel Power : 0.75kw 380v |
| 6 | Bubble washer line |
Dimension: 2500*1300*1400mm
Material: stainless steel
Mesh belt width: 600mm
Power : 1.87kw 380v
|
| 7 | Blanching line |
Dimension: 4000*1070*1400mm
Material: stainless steel Mesh belt width: 600mm Power : 40.5kw 380v |
| 8 | Rinsing & cooling line |
Dimension: 2500*1300*1400mm
Material: stainless steel Mesh belt width: 600mm Power : 1.87kw 380v |
| 9 | De-water machine |
Dimension: 3000*900*1700mm
Material: stainless steel Mesh belt width: 600mm Power : 4.5kw 380v |
| 10 | Fryer Line |
Dimension: 5000*1700*2250mm
Material: stainless steel Mesh belt width: 600mm Power : 118kw(heating) & 7kw(assist),380v |
| 11 | De-oil machine |
Dimension: 3000*900*1700mm
Material: stainless steel Mesh belt width: 600mm Power : 4.5kw 380v |
| 12 | Picking Line |
Dimension: 2500*740*1100mm
Material: stainless steel+food grade pvc Power : 0.37kw 380v |
| 13 | Flavoring machine |
Dimension: 2500*850*2200mm
Material: stainless steel Drum diameter: 500mm Power : 1.12kw 380v |
| 14 | Packing Machine |
Capacity: about50 bag/min
Accuracy: ≤±1.5%
Bag size: (L)60-300mm (W)60-200mm
Film width: 420mm
Bag type: Pack with film, upper seal, lower seal and back seal by automatic bag making machine
Film thickness: 0.04-0.09mm
Package material: thermal composite material., likeBOPP/CPP, PET/AL/PE etc
Air consumption: 0.8Mpa 0.5m3/min
Total powder: 4.745KW
Voltage: Four wire three phase 380V 50HZ
Air compressor: Not less than 1 CBM
Total height: 3.308 m
|
