Quick Details
-
Voltage:
-
220V/380V 50HZ, or customization
-
Dimension(L*W*H):
-
50*85*130~80*120*185CM
-
Weight:
-
185 KG
-
Power:
-
3.5~11.5KW
-
Working Temperature Range:
-
-80 ~ -20℃ (optional: -120 ~ 30℃)
-
Product name:
-
-60 -80 -120 Ultra Low Temperature Cryogenic Circulating Chiller
-
Temperature:
-
-80 ~ -20℃ (optional: -120 ~ 30℃)
-
Refrigerant:
-
R-404A/R508B
-
Dimension:
-
50*85*130~80*120*185CM
-
Cooling Power:
-
0.2~6KW
-
Circulation pump:
-
20~50L/min 0.7~1BAR
-
Compressor:
-
Copeland/Danfoss/Emerson/TECUMSEH
-
capacity of liquid storage:
-
15~60L
-
Evaporator:
-
Plate heat exchanger
-
Shell:
-
SUS304
Quick Details
-
Condition:
-
NEW
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
LNEYA
-
Voltage:
-
220V/380V 50HZ, or customization
-
Dimension(L*W*H):
-
50*85*130~80*120*185CM
-
Weight:
-
185 KG
-
Power:
-
3.5~11.5KW
-
Working Temperature Range:
-
-80 ~ -20℃ (optional: -120 ~ 30℃)
-
Product name:
-
-60 -80 -120 Ultra Low Temperature Cryogenic Circulating Chiller
-
Temperature:
-
-80 ~ -20℃ (optional: -120 ~ 30℃)
-
Refrigerant:
-
R-404A/R508B
-
Dimension:
-
50*85*130~80*120*185CM
-
Cooling Power:
-
0.2~6KW
-
Circulation pump:
-
20~50L/min 0.7~1BAR
-
Compressor:
-
Copeland/Danfoss/Emerson/TECUMSEH
-
capacity of liquid storage:
-
15~60L
-
Evaporator:
-
Plate heat exchanger
-
Shell:
-
SUS304

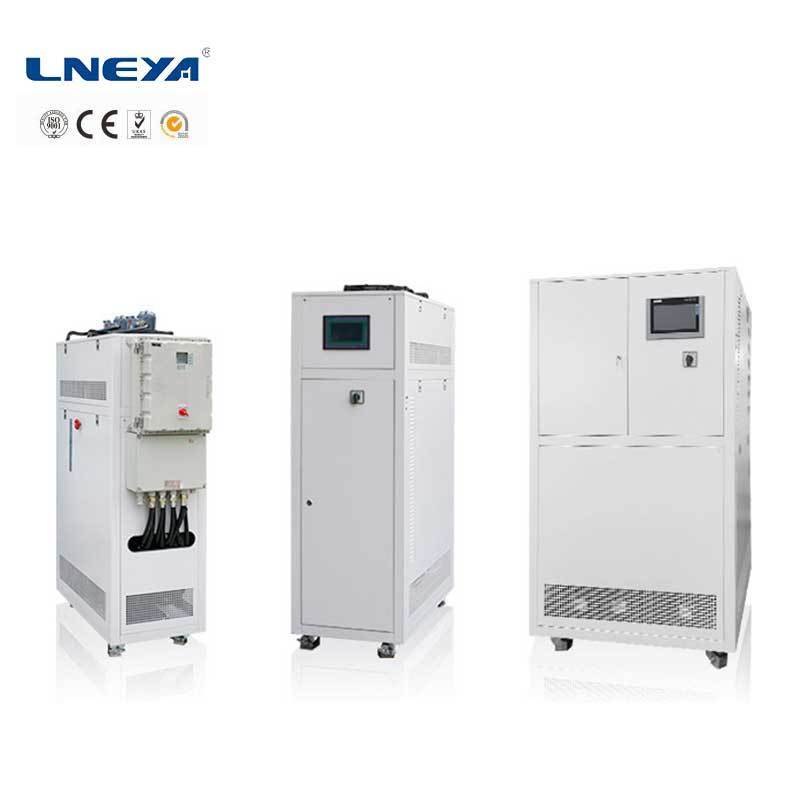

-60 -80 -120 Ultra Low Temperature Cryogenic Circulating Cooler & Chiller
Products Description
Features of Low Temperature Recirculating Chiller
* Saving resources. Closed cycle pipeline design highly prevent circulating water pollution and extend the lifetime of circulation liquid.
* Multi-safety protection,more reliable operation.
* LNEYA recirculating chillers adopt brand compressor, cascade refrigeration cooling technologies. Human design, more convenient and flexible.
* Efficient two-condensate system.
* Computer-cascade temperature controller,temperature figures display, adjustable unit is 0.1°C, temperature range is -120°℃ ~ 30°C, PT100 temperature sensor.
* Use of cold technology, can guarantee the stability of temperature at low temperature.Can set the temperature difference of compressor on off.
* Monitoring the ambient temperature, prevent temperature to be higher in the running system.
* A variety of fault alarm (over-temperature alarm, sensor alarm, high pressure alarm, compressor over heat alarm,liquid level alarm).
* Power on delay protection, three-level cascade system protectors.All parts are safety grounding.
* LNEYA chillers adopt full closed circulation design, no water vapor at low temperature and ensure the purity of cooling medium, in case of ice crystals, provide a long time life of heat transfer liquid.
* High-performance circulating pump, can guarantee 24 hours continuously running a day.Use plate cool-heat-exchanger, heat transfer efficiency is provided.
* Multi-safety protection,more reliable operation.
* LNEYA recirculating chillers adopt brand compressor, cascade refrigeration cooling technologies. Human design, more convenient and flexible.
* Efficient two-condensate system.
* Computer-cascade temperature controller,temperature figures display, adjustable unit is 0.1°C, temperature range is -120°℃ ~ 30°C, PT100 temperature sensor.
* Use of cold technology, can guarantee the stability of temperature at low temperature.Can set the temperature difference of compressor on off.
* Monitoring the ambient temperature, prevent temperature to be higher in the running system.
* A variety of fault alarm (over-temperature alarm, sensor alarm, high pressure alarm, compressor over heat alarm,liquid level alarm).
* Power on delay protection, three-level cascade system protectors.All parts are safety grounding.
* LNEYA chillers adopt full closed circulation design, no water vapor at low temperature and ensure the purity of cooling medium, in case of ice crystals, provide a long time life of heat transfer liquid.
* High-performance circulating pump, can guarantee 24 hours continuously running a day.Use plate cool-heat-exchanger, heat transfer efficiency is provided.
Detailed description of brand accessories of low temperature circulating chiller
Product Paramenters
|
Model
|
|
LT-
8018N
|
LT-
8030N
|
LT-
8062N
|
LT-
8090N
|
LT-
80A1N
|
LT-
80A2N
|
||||||
|
Temp range
|
|
-80 ~ -20℃ (optional: -120 ~ 30℃)
|
|
|
|
|
|
||||||
|
Cooling capacity (KW)
|
-40℃
|
0.6KW
|
1.4KW
|
2.8KW
|
3.4KW
|
4.8KW
|
7.2KW
|
||||||
|
|
-60℃
|
0.4KW
|
0.8KW
|
1.6KW
|
2.1KW
|
4KW
|
6KW
|
||||||
|
|
-75℃
|
0.2KW
|
0.5KW
|
0.9KW
|
1.2KW
|
2KW
|
3KW
|
||||||
|
Circulation pump info
|
|
20L/min
0.7BAR
|
20L/min
0.7BAR
|
35L/min
1BAR
|
35L/min
1BAR
|
50L/min
1BAR
|
50L/min
1BAR
|
||||||
|
Interface size
|
|
G1/2
|
G1/2
|
G3/4
|
G3/4
|
G1
|
G1
|
||||||
|
Liquid storage volume
|
|
15L
|
20L
|
30L
|
35L
|
40L
|
60L
|
||||||
|
Compressor
|
|
Tecumseh, Dorin
|
|
|
|
|
|
||||||
|
Evaporator
|
|
Plate Heat Exchanger
|
|
|
|
|
|
||||||
|
Operation Panel
|
|
7-inch color touch screen shows setting temperature and measuring temperature, temperature curve record, data export excel-format
|
|
|
|
|
|
||||||
|
Refrigerant
|
|
R-404A/508B
|
|
|
|
|
|
||||||
|
Dimension cm
|
|
50*85
*130
|
50*85*130
|
55*100
*175
|
70*100
*175
|
70*100
*175
|
80*120
*185
|
||||||
|
Power max 50HZ
|
|
AC220V
3.5KW
|
AC380V
4KW
|
AC380V
6KW
|
AC380V
7KW
|
AC380V
9.5KW
|
AC380V
11.5KW
|
||||||
|
Weight kg
|
|
185
|
230
|
275
|
340
|
380
|
470
|
||||||
|
Shell Material
|
|
Cold rolled steel painting
|
|
|
|
|
|
||||||
|
Optional
|
|
Circulation pump 35L/min 2.5bar、50L/min 2.5bar、110L/min 2.5bar optional
|
|
|
|
|
|
||||||
|
Optional
|
|
Pressure ≤6 bar circulating pump
|
|
|
|
|
|
||||||
|
Optional
|
|
MODBUS RTU Protocol, RS 485 Interface
|
|
|
|
|
|
||||||
|
Optional
|
|
SUS304 Material
|
|
|
|
|
|
||||||
|
Optional Power
|
|
220V 60HZ three-phases，440-480V 60HZ three-phases
|
|
|
|
|
|
||||||
|
Remark
|
|
Can make the bigger capacity of liquid storage as required.
|
|
|
|
|
|
||||||
Why Choose Us
Our Advantages
1. The temperature of heat transfer fluid can be adjustable.
2. Adopt ASPERA, DANFOSS, MANEUROP, COPELAND etc. Brand compressor.Stable performance and can work continuously.
3. A variety of fault alarm (over-temperature alarm, high-pressure alarm, sensor alarm, compressor overheat alarm).
4. Power on delay protection;All parts are safety grounding.
