1) Standard size, light weight and reasonable structure
2) Splice tray inside changeable
3) Can be used in 19'', 23'' standard distribution frame
4) Suitable for ribbon and single fiber
5) Various panel plate to fit different adapter interface
6) Front mark on the plate is easy for identification and operation
7) 24C, 36C, 48C, 72C optional, with or without fiber optic pigtails and adapters
8) Easy for management and operation
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
foclink fiber patch panel
-
Usage:
-
FTTH ODF 19 inch fiber wall mount patch panel
-
Application:
-
FTTH FTTB FTTX Network
-
Certification:
-
CE RoHS FCC
-
External size::
-
1U,2U,3U,4U
-
Fiber: Simplex, Duplex:
-
Simplex, Duplex
-
Fiber Port::
-
LC,SC,FC,ST
-
Core::
-
8,12,24,36........96
-
Color::
-
white , black ,grey
-
Dimension:
-
19 inch
Quick Details
-
Type:
-
Fiber Adapter & Connectors
-
Model Number:
-
wall mount patch panel
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
foclink fiber patch panel
-
Usage:
-
FTTH ODF 19 inch fiber wall mount patch panel
-
Application:
-
FTTH FTTB FTTX Network
-
Certification:
-
CE RoHS FCC
-
External size::
-
1U,2U,3U,4U
-
Fiber: Simplex, Duplex:
-
Simplex, Duplex
-
Fiber Port::
-
LC,SC,FC,ST
-
Core::
-
8,12,24,36........96
-
Color::
-
white , black ,grey
-
Dimension:
-
19 inch
Product Description

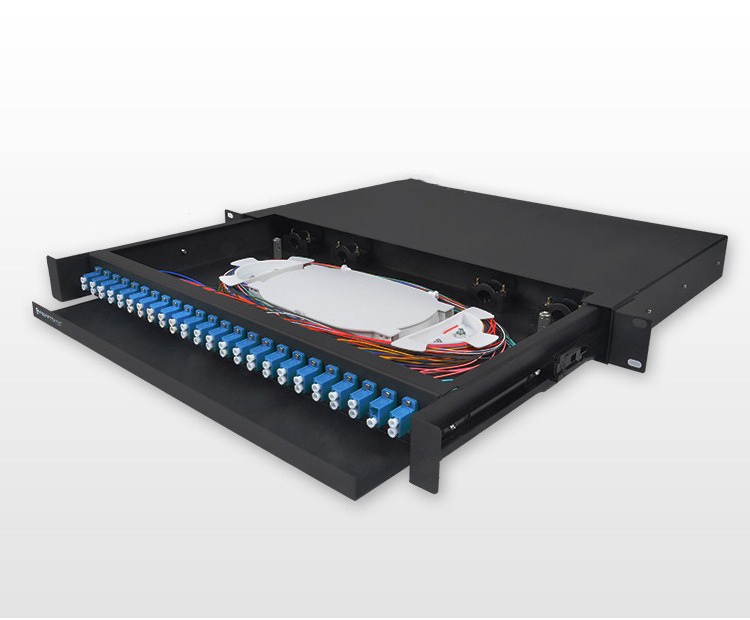

FTTH ODF 19 inch 1U 12 24 36 48 port sc fiber wall mount patch panel
Foclink the removable front panels chassis is a 19 inch 1U sliding panel in two parts: one sliding chassis and one front panel, which receives the optical adaptors.The flexibility of its two piece construction allows you maintain a stock of the chassis and then attach a suitable front panel as required.
Detailed Images
Features:
|
Specification
|
|
|
|
Fiber Capacity of panel
|
12-144 core(12 24 48 port usually)
|
|
|
Panel Connector
|
SC LC ST FC
|
|
|
Type
|
Sliding Fixed
|
|
|
Dimension
|
19'' 1U/2U/3U/4U...
|
|
|
Material
|
Cold Rolled Steel or Aluminum
|
|
|
Storage Temperature
|
-45~+65℃
|
|
|
Thickness
|
1.0 1.2 mm
|
|
|
1.0 1.2 mm
|
Cable ties, mounting ear screws, and spiral wrap tube
|
|
Application
1) Telecommunications subscriber loop
2) Fiber to the home (FTTH)
3) LAN/WAN
4) CATV
Packing & Delivery
Our Service
FAQ
1.What is your MOQ?
Foclink: Normally is 1pcs/item,could be coordinated if you have detail requirements.
2.How about your delivery date?
Foclink: Delivery date is about 3-5days, it depends on the order quantity.
3.Can you supply sample for customers?
Foclink: of course, however the delivery cost will be charged on customer's account
4.How about your price?
Foclink: We are supplying products with very competitive price based on good performance.
5.Do you offer OEM Service ?
Foclink: We accept OEM, ODM. The cable size and material are customized. Our own logo and own design are welcome. We will produce according to your requirment and description;
