Quick Details
-
Brand Name:
-
OTS
-
Model Number:
-
XB-OTS-80
-
Product name:
-
Benchtop Environmental Climate Temperature Humidity Test Chamber
-
Body Materials:
-
SUS#304 Stainless Steel Plate
-
Compressor:
-
Original France Tecumseh
-
Refrigerant:
-
Environmental friendly R23/R404A
-
Controller:
-
Programmable LCD Touch Screen
-
Casters:
-
Easy mobility and safe
-
Water Level:
-
Visible
-
Waterway device and circuit devices:
-
Separated
-
Cable Port:
-
External Power
Quick Details
-
Warranty:
-
14 months, 12month spare parts replacement for free
-
Power:
-
Electronic
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OTS
-
Model Number:
-
XB-OTS-80
-
Product name:
-
Benchtop Environmental Climate Temperature Humidity Test Chamber
-
Body Materials:
-
SUS#304 Stainless Steel Plate
-
Compressor:
-
Original France Tecumseh
-
Refrigerant:
-
Environmental friendly R23/R404A
-
Controller:
-
Programmable LCD Touch Screen
-
Casters:
-
Easy mobility and safe
-
Water Level:
-
Visible
-
Waterway device and circuit devices:
-
Separated
-
Cable Port:
-
External Power

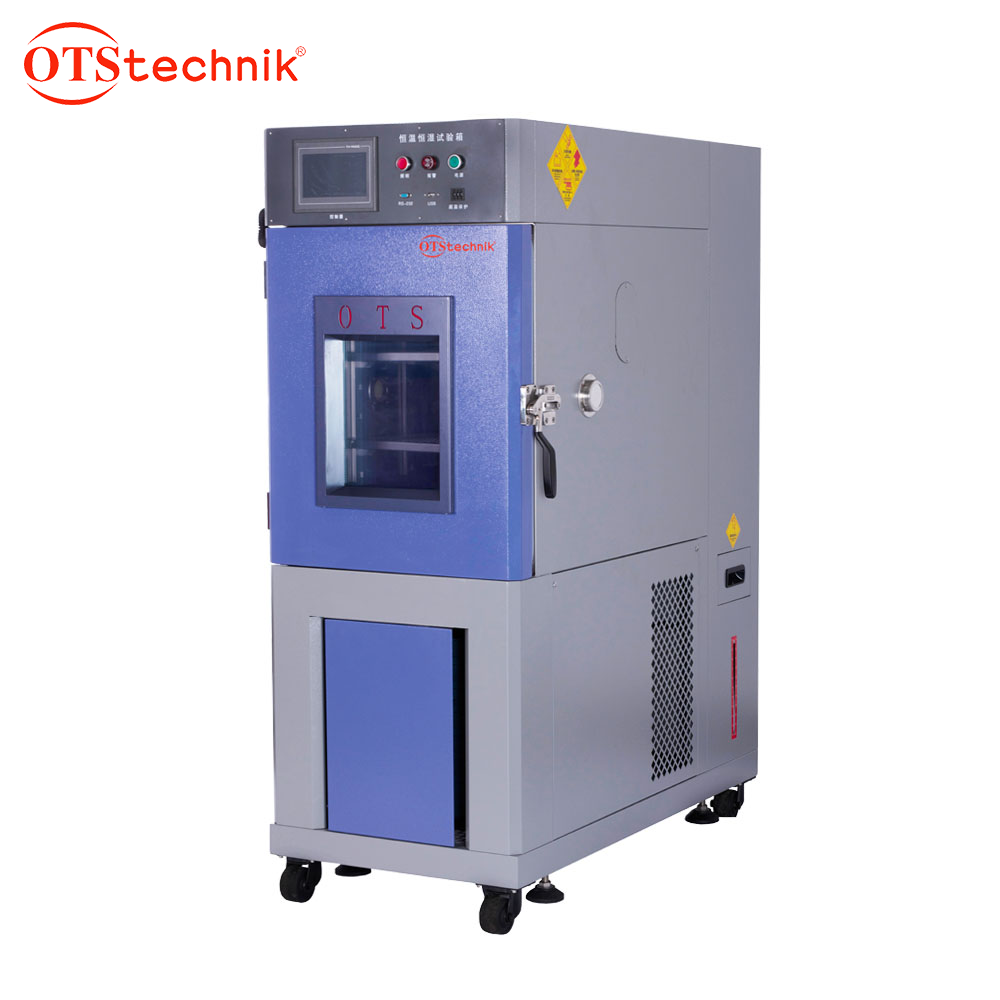

Temperature humidity test chamber
is use to test material heat,cold,dry resistance, humidity resistance.Suitable for electronics, electrical appliances, communications, instrumentation, vehicles, plastic products, metal, food, chemical, building materials, medical, aerospace and other products.
|
Model
|
XB-OTS-80
|
|
Inner size
WHD (cm) |
40*50*40
|
|
External size
WHD (cm) |
60*161.5*120.5
|
|
Window Size
WH (mm) |
400*500mm
|
|
Test Hole Size
Diameter (mm) |
2 holes
50mm of each |
|
Weight
|
225KG
|
|
Voltage
|
1Ø 220V 50Hz/ 3Ø 380V 60Hz/Customized
|
|
Temperature range
|
-70℃ ～180℃
|
|
Humidity range
|
10% ～98%RH
(5%~98% R.H. customized) |
|
Temp.& humidity control fluctuation
|
≤±0.5℃, ≤ ±2.5%RH
|
|
Indication resolution
|
0.01℃, 0.1 %RH
|
|
Temp.&humidity Uniformity
|
≤±1.5℃,≤±2.5% RH
|
|
Heat up&Cool down time
|
≤5℃/min for heating; ≤ 1.2℃/min for cooling
|
|
Cooling type
|
Air cold
|
|
Chamber materials
|
SUS#304 stainless steel for Inner chamber with thickness 1.5mm
Steel plate for external chamber with thickness 1.5mm |
|
Insulation
materials |
Rigid polyurethane foam + ultrafine glass fiber with thickness of 100mm
|
|
|
Refrigerating unit, water supply and drainage device, blower fan, power distributing Cabinet;
Humidifying and humidity measuring water utilization control device |
|
|
Heat emission blower fan
Distribution switchboard Test terminal of sample USB physical interface (need to be purchased together with centralized monitoring software) Residual current circuit breaker of main power supply |
|
|
Basin heating humidifying method
Stainless steel armored heater is adopted in basin humidification Control mode of heater: non contact equal period pulse-width modulation, SSR (solid state relay) Water level control device, dry heating prevention device of heater |
|
Humidifier
|
1.Basin heating humidifying method
2.Control mode of heater: non contact equal period pulse-width modulation, SSR (solid state relay) 3.Water level control device, dry heating prevention device of heater |
|
|
Temperature (humidity) control display, over temperature protection setting device,emergency switch, run indicator, failure
indicator |
|
|
Imported Compressor
Fits wide range of pressure Higher heating efficiency Easy to maintain |
|
|
1.Unique design of the box within the wind circulation structure, to ensure that under the conditions of the test with the case of
uniformity within the box within ± 2 ℃
2.Unique design of the humidity test when the top of the box anti-drip design to ensure that live test from water short circuit,
surface water pollution
3.Using the latest environmentally friendly adsorption drying processor, effective control of the product when the surface
temperature condensation
4.The refrigeration room is fully sealed and soundproofed to reduce machine noise and box resonance, machine noise control within
75db./Other Contact us
|
|
Controller
|
Screen Size &Display
|
7" TFT-LCD
|
|
|
Down load data
|
By USB directly
|
|
|
Language
|
ENG (other language can be acceptable)
|
|
|
Number of Program Groups
|
120 Groups, each Group with 1200segments with 9999 cycles
|
|
|
Connected to PC
|
YES
|
|
|
Easy for Operation
|
YES
|
Advantage
Ø 24 hours online
Ø 35 years experiences
Ø Sample chamber of each model
Ø Best price, fast delivery
Ø OEM,ODM
Ø Oversea offices
Ø Own import and export business license
Ø ISO,CE,UL,ASTM,DIN,EN,GB,BS,JIS,ANSI,TAPPI,AATCC,IEC,VDE
Ø 35 years experiences
Ø Sample chamber of each model
Ø Best price, fast delivery
Ø OEM,ODM
Ø Oversea offices
Ø Own import and export business license
Ø ISO,CE,UL,ASTM,DIN,EN,GB,BS,JIS,ANSI,TAPPI,AATCC,IEC,VDE
Customer Support Services
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
