Quick Details
-
Dimension(L*W*H):
-
112*71*71cm
-
Weight (KG):
-
118 KG
-
Standard Nozzle:
-
1.4 mm
-
Air Consumption:
-
Above 23cfm
-
Pattern Width:
-
200 to 500 mm
-
Air source:
-
10KW
-
Maximum spraying viscosity:
-
600
-
Air pressure:
-
0.3---0.7 Mpa
-
Adjustment range of Catalyst:
-
0.5%---4%
-
Maximum spraying quantity of resin:
-
8L/min
-
Stability of operation:
-
no halt
-
Mixing type:
-
outer mixing
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HIGHTOP
-
Machine Type:
-
Finerglass spray machine
-
Dimension(L*W*H):
-
112*71*71cm
-
Weight (KG):
-
118 KG
-
Standard Nozzle:
-
1.4 mm
-
Air Consumption:
-
Above 23cfm
-
Pattern Width:
-
200 to 500 mm
-
Air source:
-
10KW
-
Maximum spraying viscosity:
-
600
-
Air pressure:
-
0.3---0.7 Mpa
-
Adjustment range of Catalyst:
-
0.5%---4%
-
Maximum spraying quantity of resin:
-
8L/min
-
Stability of operation:
-
no halt
-
Mixing type:
-
outer mixing
Product Description
Specification
|
Model
|

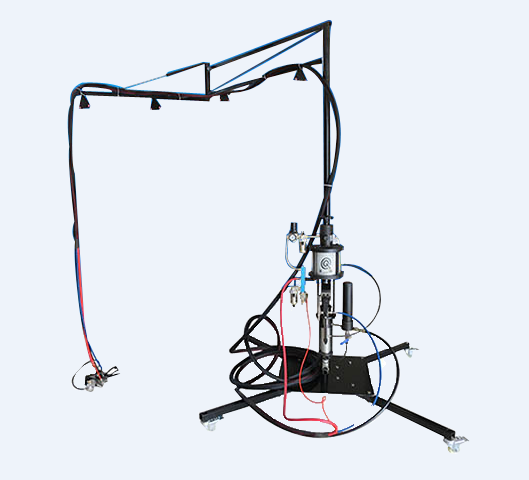

CNMC glass fiber spray machine
|
|
Air source
|
10KW
|
|
Air pressure
|
0.3---0.7 Mpa
|
|
Maximum spraying viscosity
|
600
|
|
Maximum spraying quantity of resin
|
8L/min
|
|
Adjustment range of Catalyst
|
0.5%---4%
|
|
Regulating gradient of Catalyst
|
unlimit, until full close (sleepless adjustment)
|
|
Control location of pump axis when stop
|
lower dead center
|
|
Mixing type
|
outer mixing
|
|
Stability of operation
|
no halt
|
|
Length of pipe along with machine
|
15m
|
Our Advantages
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
