Quick Details
-
Positioning Accuracy (mm):
-
0.05 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.05 mm
-
Spindle Motor Power(kW):
-
3
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Superstar
-
Voltage:
-
380V/50HZ
-
Dimension(L*W*H):
-
2.3*32*1.85meter
-
Power (kW):
-
13
-
Weight (KG):
-
1200
-
Product name:
-
cmc machine
-
Spindle:
-
3kw water cooling spindle
-
Working area:
-
1300x2500x200mm
-
control system:
-
touch screen control system-Ucancam with dsp handwheel
-
Table:
-
T-slot Table
-
Driving Motor:
-
Lead Shine
-
Transmission:
-
helical rack pinion
-
Guide rail:
-
square rail
-
driving system:
-
stepper driver and motor
-
Application:
-
MDF WOOD ACRYLIC ALUMINUM
Quick Details
-
Working Table Size(mm):
-
1300×2500
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
1 - 24000 rpm
-
Positioning Accuracy (mm):
-
0.05 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.05 mm
-
Spindle Motor Power(kW):
-
3
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Superstar
-
Voltage:
-
380V/50HZ
-
Dimension(L*W*H):
-
2.3*32*1.85meter
-
Power (kW):
-
13
-
Weight (KG):
-
1200
-
Product name:
-
cmc machine
-
Spindle:
-
3kw water cooling spindle
-
Working area:
-
1300x2500x200mm
-
control system:
-
touch screen control system-Ucancam with dsp handwheel
-
Table:
-
T-slot Table
-
Driving Motor:
-
Lead Shine
-
Transmission:
-
helical rack pinion
-
Guide rail:
-
square rail
-
driving system:
-
stepper driver and motor
-
Application:
-
MDF WOOD ACRYLIC ALUMINUM
Product Description

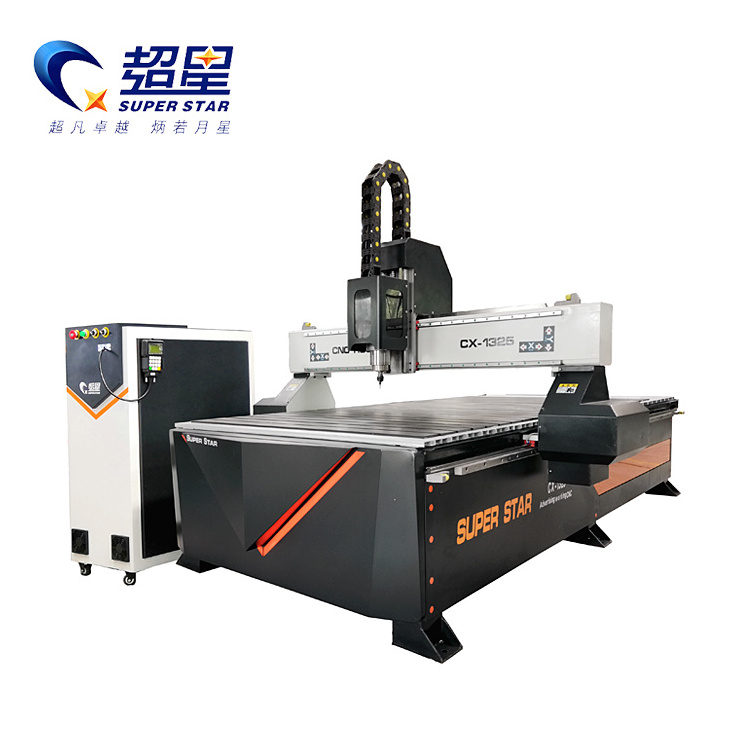

Jinan Superstar CNC Woodworking Router 1325 PVC PE Cutting Milling Engraving Machine
Advantages Of CNC Router Wood Machinery:
1. 12mm industrial class square tube strong bed. You can use our cnc router more than 15 years.
2. T-slot table, pvc protection. We can also provide vacuum table for your choice.
3. Nc studio control system, very easy operation and could connect with computure. DSP for option.
4. HQD water cooling spindle. Italy HSD imported spindles for option, International famous brand, good using and guaranteed after-sale service.
5. Stepper motor with big power supply. Servo motor for option.
|
X Working Area
|
1300mm
|
|
Y Working Area
|
2500mm
|
|
Traveling Positioning Accuracy
|
±0.05mm
|
|
Repositioning Accuracy
|
±0.05mm
|
|
X,Y ,Z Structure
|
XY gear wheel, Z ball screw
|
|
Machine Table
|
T-slot for option
|
|
Max. Rapid Travel Rate
|
25000mm/min
|
|
Max. Working Speed
|
30000mm/min
|
|
Spindle
|
3kw water cooled spindle
|
|
Spindle Speed
|
0-24000rpm
|
|
Drive Motor
|
step driving system
|
|
Command
|
G-code*.u00*.mmg*.plt
|
|
Control System
|
Nc studio control
|
|
Guide rail
|
Square guide rail
|
|
Control cabinet
|
Independent cabinet
|
Detailed Images
_______________________________________________Main Features__________________________________________
* V industrial led design, more beautiful
* DSP control system with handler, easy to operate.
* Type 3, Ucancam, Artcam software, with competitive price
* Taiwan Square rail
* DSP control system with handler, easy to operate.
* Type 3, Ucancam, Artcam software, with competitive price
* Taiwan Square rail
* Tool Sensor for Z axis calibration
