Quick Details
-
Place of Origin:
-
Henan, China
-
Application:
-
Suitable for erection on power lines with various voltage levels
-
Structure:
-
Central loose tube type, layer-stranded type
-
Fiber cores:
-
24, 36, 48, 96, 144 or customized
-
Fiber type:
-
G.652D
-
Wire core material:
-
Aluminum clad steel
-
Length:
-
2-4km/disc, customized
-
Package:
-
Wooden Iron drum
-
Business type:
-
Factory manufacturer
Quick Details
-
Brand Name:
-
THT
-
Model Number:
-
OPGW
-
Type:
-
OPGW fiber optic cable, OPGW cable
-
Place of Origin:
-
Henan, China
-
Application:
-
Suitable for erection on power lines with various voltage levels
-
Structure:
-
Central loose tube type, layer-stranded type
-
Fiber cores:
-
24, 36, 48, 96, 144 or customized
-
Fiber type:
-
G.652D
-
Wire core material:
-
Aluminum clad steel
-
Length:
-
2-4km/disc, customized
-
Package:
-
Wooden Iron drum
-
Business type:
-
Factory manufacturer

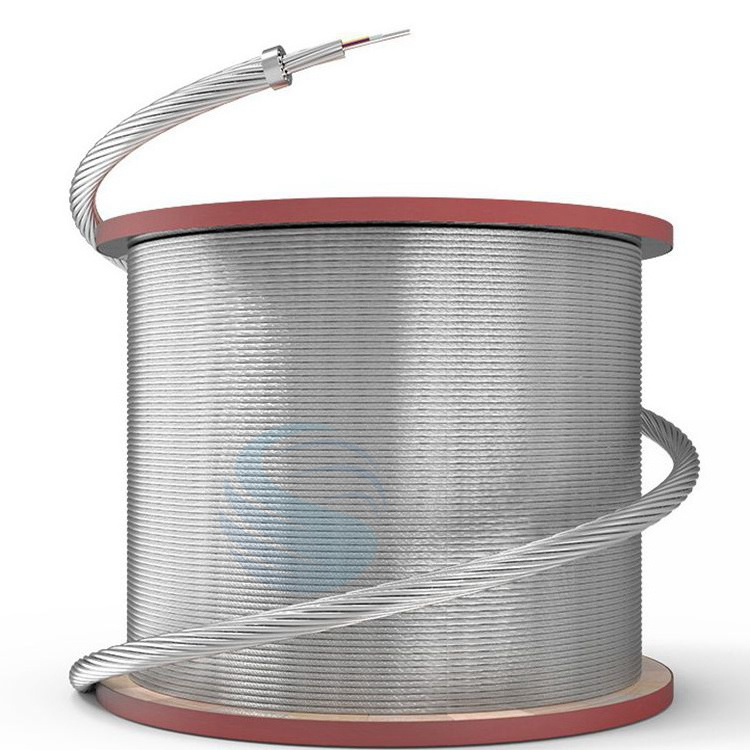

China Manufacturer communication cable 96 core fiber optic g652d cable opgw
Product Description
1. Introduction of
communication cable 96 core fiber optic g652d cable opgw
OPGW is an optical fiber composite overhead ground wire, referred to as OPGW optical cable. The optical fiber unit is put into the overhead ground wire, and the optical cable and the ground wire are organically combined. On the premise of ensuring the original electrical and mechanical properties of the overhead ground wire, information such as audio, video and data can be transmitted.
2. Main features of communication cable 96 core fiber optic g652d cable opgw
a. Small cable diameter, light weight and small short-circuit current capacity.
b. Outer layer of OPGW is armored with metal, has no effect on high voltage galvanic corrosion and degradation.
c. Easy to maintain and solve line crossing problem, its mechanical characteristics can meet the needs of the line.
2. Main features of communication cable 96 core fiber optic g652d cable opgw
a. Small cable diameter, light weight and small short-circuit current capacity.
b. Outer layer of OPGW is armored with metal, has no effect on high voltage galvanic corrosion and degradation.
c. Easy to maintain and solve line crossing problem, its mechanical characteristics can meet the needs of the line.
3. Structure of
communication cable 96 core fiber optic g652d cable opgw
a. Central loose tube type: suitable for
optical cables with cross-sectional area below 80mm².
b. Loose layer stranded type:
suitable for optical cables with large cross-sectional area.
Specification
Technical data of
communication cable 96 core fiber optic g652d cable opgw
|
Model
|
Structure
|
Fiber type
|
Cores
|
Cable diameter
|
Cross-sectional area
|
Tensile strength
|
Wire core material
|
||||||
|
OPGW-12
|
Central loose tube type
|
SM
|
12
|
10.2mm
|
54.48mm²
|
64KN
|
Aluminum clad steel
|
||||||
|
|
Layer-stranded type
|
SM
|
12
|
15.2mm
|
121.14mm²
|
146KN
|
Aluminum clad steel
|
||||||
|
OPGW-24
|
Central loose tube type
|
SM
|
24
|
10.2mm
|
54.48mm²
|
64KN
|
Aluminum clad steel
|
||||||
|
|
Layer-stranded type
|
SM
|
24
|
15.2mm
|
121.14mm²
|
146KN
|
Aluminum clad steel
|
||||||
|
OPGW-48
|
Layer-stranded type
|
SM
|
48
|
15.2mm
|
121.14mm²
|
146KN
|
Aluminum clad steel
|
||||||
|
Length
|
2km-4km/disc, can be customized according to your needs
|
|
|
|
|
|
|
||||||
|
Working temperature
|
-40℃-+80℃
|
|
|
|
|
|
|
||||||
|
Notes
|
model type can be customized according to your needs
|
|
|
|
|
|
|
||||||
Our History
Zhengzhou
T
ian
H
e
T
elecommunication Technology Co., Ltd.
, known as
THT
, is a state-level specialized and innovative "little giant" and high-tech enterprise, and has more than 50 years of factory experience.
We originate from “701 factory”, which is a military state-owned enterprise. Adhering to its 50-year rich corporate culture, the growth of our domestic market and customers group is sustainable and stable. Our products are widely used in various fields such as communication, smart grid, national defense, Rail Transit, Coal Mine, Water Conservancy and Smart City, etc. Products are deeply loved by the major operators in China-- China Unicom, China Telecom, China Mobile and China Broadcast Network.
We are engaged in research and development, manufacturing, sales and service of optical fiber preform, optical fibers, optical cables, communication support facilities, and other relative corollary equipment.
Factory Show
Packing & Delivery
Exhibition
FAQ
1. Are you a manufacturer?
2. What is your product range?
We are specialized in manufacturing different kinds of products: Optical fibers, Indoor Cables, Outdoor Cables, Lan Cables, Patch Cable and other relative corollary equipments.
3. Do you provide OEM service?
Yes, we do.
4. How many countries have you exported to?
We’ve been the supplier of many optical cable foreign trade companies in China for many years. And we've exported to many countries like USA, Mexico, Brazil, Venezuela, UK, Italy, Russia, Korea, Singapore, South Africa, Egypt, etc.
5. Do you provide samples?
Yes, we do. Welcome to apply for samples. We can provide most of the product samples free, but you need to undertake the delivery fee. If you're satisfied and place order finally, we can minus the freight you've paid accordingly.
6. What is your payment term?
We accept payment by T/T, L/C and Western Union.
Yes, we are indeed a factory, and have more than 50 years of manufacturing experience.
2. What is your product range?
We are specialized in manufacturing different kinds of products: Optical fibers, Indoor Cables, Outdoor Cables, Lan Cables, Patch Cable and other relative corollary equipments.
3. Do you provide OEM service?
Yes, we do.
4. How many countries have you exported to?
We’ve been the supplier of many optical cable foreign trade companies in China for many years. And we've exported to many countries like USA, Mexico, Brazil, Venezuela, UK, Italy, Russia, Korea, Singapore, South Africa, Egypt, etc.
5. Do you provide samples?
Yes, we do. Welcome to apply for samples. We can provide most of the product samples free, but you need to undertake the delivery fee. If you're satisfied and place order finally, we can minus the freight you've paid accordingly.
6. What is your payment term?
We accept payment by T/T, L/C and Western Union.
Welcome to contact us for further messages and quotaion!
