Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
BOXPUT
-
Model Number:
-
DVB T2 S2 Combo QBOX
-
Certifications:
-
CE
-
OTA:
-
yes
-
OEM/ODM:
-
FREE
-
USB:
-
USB2.0
-
Full HD:
-
1080P
-
cccam:
-
Support
-
MPEG:
-
Support
-
USB WiFi Dongle:
-
Support
-
EPG:
-
Support
-
PVR:
-
Support
Quick Details
-
FTA(Free To Air):
-
Yes
-
Type:
-
Digital
-
High Definition:
-
Yes
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
BOXPUT
-
Model Number:
-
DVB T2 S2 Combo QBOX
-
Certifications:
-
CE
-
OTA:
-
yes
-
OEM/ODM:
-
FREE
-
USB:
-
USB2.0
-
Full HD:
-
1080P
-
cccam:
-
Support
-
MPEG:
-
Support
-
USB WiFi Dongle:
-
Support
-
EPG:
-
Support
-
PVR:
-
Support

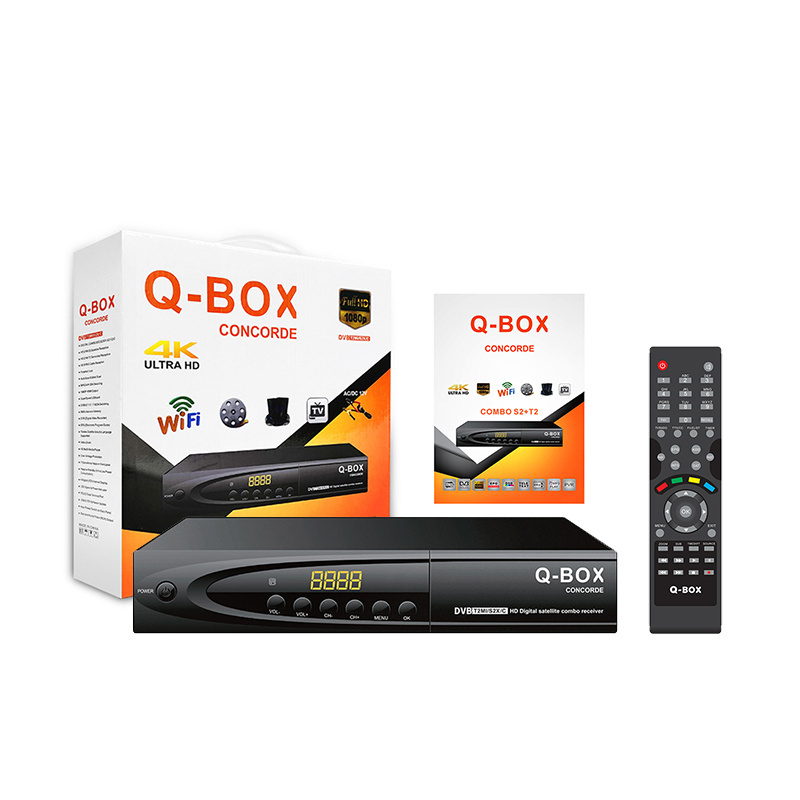

4k combo dvb s2 dvb t2 QBOX dvb-t/dvb-t2 tv tuner receiver full hd 1080p support OTA Wifi USB MPEG H.264 Time Shift EPG OSD CCCAM PVR EPG
• Full HD 1080P
• Fully DVB-S2/MPEG-4/H264 Decoder.
• 4000 Channels memory space (TV+Radio)
• 32bit colors on screen display supported.
• Support SW Upgrade via USB, FTP and OTA
• Frequency Range 950-2150MHz
• Demodulation DVB-S(QPSK):DVB-S2(8PSK,QPSK)
• 2X USB2.0 for MultiMedia and WIFI
• Supports DiSEqC1.0/1.1/1.2
• Multimedia play back.
• Video Comperssion MPEG-2 and MPEG-1 compatible, MPEG-4 H.264
• Videotext Decoder
• Letterbox for 4:3 TV-Device
• Audio compression MPEG-1& MPEG-2 Layer land II,MP3
• Audio Mode Dual (main/sub), stereo
• Support Movie format: MPEG-2, MPEG, TS steam.AVI QuickTime .MKV.ASF Microsoft ISO MPEG-4 Video Codev1
• Support Music format: WAVE MP3, ASF, AAC
• Support Photo format: JPEG BMP PNG GIF TIFF
• Support You Tube, YouPorn, N32 Game Yupoo, Picasa Flickr, G oogle map, Yahoo Weather and Online dictionary
•
Support Time Shift, EPG, OSD, TELE TEXT,PVR, DiSEqC 1.2, MP4 PLAY, CCCAM
• LB Power.Auto/13V/18V
| DVB S2+T2 combo receiver H.264 | |
| Bright Spot: DVB-S2+T2 +Network Application, USB Port, Wi-Fi, Youporn | |
| Dailymotion | |
| Ⅰ. Technical specification | |
| Product Type Name | Produce Type Number T2+S2 |
| Main Features | |
| STB Type | DVB-S2+T2 Combo Receiver |
| Main Chipset | GX6605S |
| Memory | 512Mbit DDR2 f 800MHz |
| Flash | 8M bytes |
| Function/Interface CVBS,AR,AL,YPbPr,SPDIF,HDMI, 1*USB2.0,LEDDisplay,LNB IN(DVB-S/S2),ANT(DVB-T/T2),7 Keys on Front Panel | |
| Special Features | |
| Heat Sink | Yes |
| TUNER Type | R848 |
| Demodulator Type | AVL6762 |
| Ⅱ. Hardware Features | |
| Rear panel | |
| USB 2.0 | YES |
| T2 ANT IN | For DVB-T/T2 signal input |
| S2 LNB IN | |
| COAXIAL For Coaxial output for other audio decoder device | For DVB-S/S2 signal input |
| HDMI | 19 PIN Female HDMI 1.3 |
| AC-IN | AC 100~250V,50Hz/60Hz |
| RF OUT | YES |
| CVBS+R/L Audio+YPbPr | 6 RCA for CVBS+L/R Audio+YPbPr |
| Front panel | |
| USB 2.0 | For USB PVR, Timeshift and Media Player, Wi-Fi |
| Ⅲ. Software General Features(DVB-S/S2/T/T2) | |
| MPEG | MPEG-2 SD, MPEG-2 HD, H.264/MPEG-4 SD, H.264/MPEG-4 HD |
| SCPC/MCPC | SCPC and MCPC receivable from C/Ku band satellite |
| PAL/NTSC | Automatic PAL/NTSC conversion |
| Channels Number | 4000 channels TV and Radio programs |
| Favorites | 8different favorite groups selection |
| OSD Language | OSDLanguage foroptions:English,French,German,Italian,Spanish,Swedish,Portuguese,Finland,Holland,Turkish, Czech,Greece,Denish,Thai,Arabic |
| EPG | Fully support to 7 days Electronic Program Guide(EPG) |
| PIG | Picture in Graphics(PIG) support |
| Color OSD | 256 color/8bit On Screen Display |
| NIT Search | User can set NIT Search On/Off when execute DVBS2 Search |
| DiSEqC | DiSEqC1.0/1.1/1.2/USALS Motor fully support, 13/18V, 0/22K, 0/12V LNB control |
| Channel Edit and sorting | Various channel editing functions(favorite, moving, locking, renaming, deleting |
| Parental Control | Parental control for channels |
| Easy Menu | Easy to use Menu System |
| Soft Upgrade | Software upgrades through USB port, Support OTA. |
| Timer | 25Timer Reservations, automatically switch to a specific channel |
| Subtitle | Subtitle support DVB EN300743 and EBU |
| Teletext | Teletext support DVB ETS300472 by VBI and OSD |
| Save Channel | Automatic save for last channel |
| Sort Channel | Channel list can be sorted by alphabetic A-Z,Pay-Free, Favorite,Lock, Sat |
| Multi-resolution output | Dual display – HD and SD simultaneous |
| USB/Disk format | Support FAT/FAT32/NTFS big capacity hard disk |
| HDMI Interface | 480p_60;480i_30;576i_25; 576p_50; 720p_60;720p_50; 1080i_25;1080p_60;1080p_50 |
| Game | Games for options (Tetris, Othello, Sudoku. |
| Recorder | Recording one channel, can view another channel under the same TP. |
| Multimedia Support | TS/MPG/MKV/AVI/ASF/FLV/MP4/WMA/WMV/VOB/MOV/JPG/JPEG/GIF/PNG/TIF/MP3/M4A files DAT/SRT/SUB/BMP/ |
| Network Application | YouTube/ Youprn/Dailymotion are ready. |
| USB Wi-Fi Dongle | MTK7601 |
| IV.Electric Performance | |
| 1. Main Chip Sets | |
| CPU frequency | 608MHz |
| Flash Memory | 64Mbit/8Mbyte SPI FLASH |
| DDR Memory | 512Mbit DDR2 f 800MHz |
| 2. DVB-S/S2 Tuner | |
| Tuner Type | R848 |
| Frequency Range | 950 ~ 2150MHz for DVB-S/S2 |
| Input Impedance | 75Ω |
| LNBPowerand | Vertical13VDC;Horizontal 18VDC @ 400mA (max) |
| Polarization | 22KHz±0.4KHz(0.6V±0.2V)tone, Overload Protection |
| Input Level Range | -65dBm ~ -25dBm |
| Loop-Through | NO |
| 3. DVB-T/T2 | |
| Tuner Tuner Type | R848 |
| Frequency Range | 174MHZ-860MHZ |
| Input Impedance | 75Ω |
| Input Level Range Min | -78dbm max -20dbm(64QAM,8K 1/8,7/8) |
| 4. DVB-S/S2/T/T2 | |
| DVBS2 Demo standard | DVB-S,DVB-S2 |
| DVBS2 Demodulation | QPSK, 8PSK |
| DVBS2 Symbol Rate | 1 ~ 55MSPS |
| DVBS2 Code Rate | 1/2,2/3,3/4,5/6,7/8 forDVBS,1/2,3/5,2/3,3/4,4/5,5/6,8/9,9/10for DVBS2 |
| DVBT2 Demo standard DVB-T, DVB-T2 | |
| DVBT2 Demodulation COFDM, 16QAM, 64QAM, 256QAM | |
| DVBT2 Guard Intervals | 1/4, 19/256, 1/8, 19/128, 1/16, 1/32, 1/128 |
| DVBT2 Code Rate | 1/2, 3/5, 2/3, 3/4, 4/5, 5/6 |
| 5. TSDemux | |
| Demultiplexer | MPEG-2 ISO/IEC 13818-1 |
| Input Bit Rate | Max 120Mbit/s |
| 6. Video Decoder | |
| Video Decode | MPEG-2 ISO/IEC 13818-2 MP ML, H.264(MPEG4 part 10) main and high profile level 4.1/MPEG-2 MP@HL |
| Aspect Ratio | 4:3,16:9 |
| Video Resolution | 1920×1080,1280×720,720×480 |
| 7. Audio | |
| Decode | Audio Decode MPEG-1 layerI/II,PCM down mixIEC958 |
| SPDIF,Dolby 5.1 channel,Dolby down mix 2 channel,Dolby Prologic2(Optional) | |
| Sound Mode | LEFT/RIGHT/STEREO/MONO |
| Sampling Frequency | 32KHz,44.1KHz,48KHz |
| 8. AV Output | |
| Video Bandwidth | SD: 5.0MHz(-3dB),HD:30MHz(-3dB) |
| Video Impedance | 75Ω |
| Video Voltage Level | 1.0Vp-p |
| Audio Freq. Range | 20~20KHz |
| Audio Impedance | 600Ω |
| Audio Voltage | Level 2Vrms(5.6Vp-p) |
| 9. Environment Input | |
| Voltage AC | 00~250V,50Hz/60Hz |
| Consumption | Max 8W |
| Standby | <1W |
| Temperature | 0~40℃ |
| Humidity | <95% |
| Machine Size | 220*115*36mm |
| Color box size | 240*215*50mm |
| Outer box size | 530*498*233mm |
| Quantity | 20pcs |
| Gross weight | 13.3kgs |
