Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
xingang
-
Dimensions(L*W*H):
-
1500*1080*1700mm
-
Weight:
-
650 KG
-
Whether the working table has suction:
-
With suction
-
Platform Trim:
-
Support
-
Working mode:
-
Automatic or semi-automatic
-
Can be multi-colored:
-
Support multi-color
-
Printing thickness:
-
Adjustable
Quick Details
-
Condition:
-
New
-
Color & Page:
-
Multicolor
-
Voltage:
-
380/220V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
xingang
-
Dimensions(L*W*H):
-
1500*1080*1700mm
-
Weight:
-
650 KG
-
Whether the working table has suction:
-
With suction
-
Platform Trim:
-
Support
-
Working mode:
-
Automatic or semi-automatic
-
Can be multi-colored:
-
Support multi-color
-
Printing thickness:
-
Adjustable
1 scope of application:

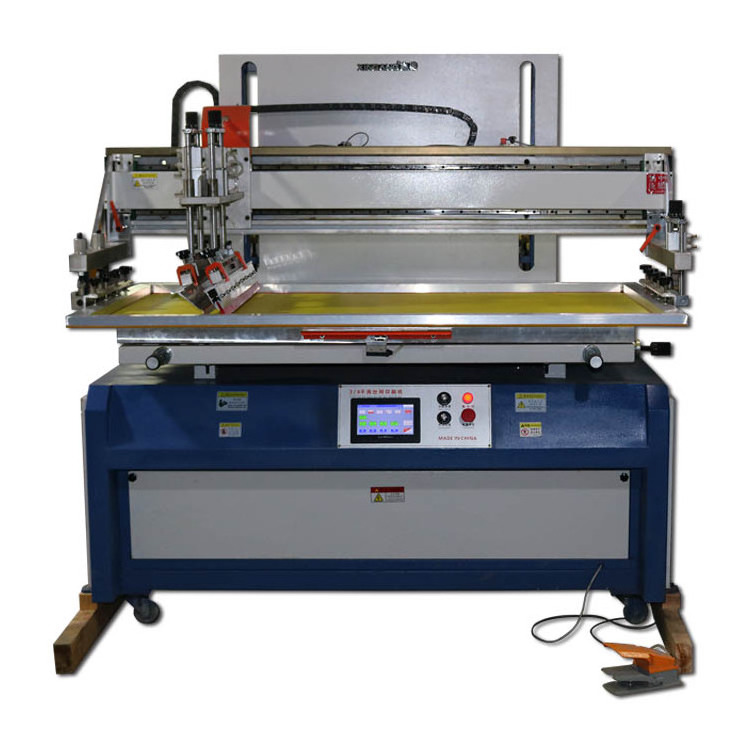

This machine is designed for printing substrates that are not easy to deform. It has a wide printing range and can be used for screen printing of flat objects such as paper, plastic, glass, ceramics, metal, textiles, leather, etc. It is especially suitable for printing PCB, soft PCB, PCB liquid photosensitive glue and SMT solder paste in the electronic industry.
Main technical parameters of 3
|
Model
|
XG-750
|
XG-960
|
XG-1280
|
|
Max.Printing Acreage
|
500*700mm
|
600*900mm
|
800*1200mm
|
|
Max.Dimension OF the Frame
|
800*1160mm
|
900*1360mm
|
900*1660mm
|
|
Dimensions of the rorkbench
|
600*900mm
|
700*1100mm
|
900*1400mm
|
|
Printing To Thickness
|
~40mm
|
|
|
|
Printing Speed
|
1200pcs/h
|
1100pcs/h
|
900pcs/h
|
|
Oveall dimensions
|
1500*1080*1700mm
|
1700*1180*1700mm
|
2000*1380*1700mm
|
