Quick Details
-
Productivity:
-
20M³/H
-
Place of Origin:
-
Henan China
-
Brand Name:
-
YG
-
Weight:
-
6000 kg
-
Dimension(L*W*H):
-
6200*2050*2200mm
-
Name:
-
mini portable concrete mixer with pump concrete mixer
-
Power:
-
90kw
-
Max. theoretic concrete delivery volume:
-
80/53 m3/h
-
Max. theoretic delivery pressure::
-
13/7 Mpa
-
Distribution valve:
-
S Pipe Valve
-
Hopper volume (m3)::
-
0.8m3/h
-
Rated engine speed(r/min)::
-
1480
-
Delivery distance V/H(m)::
-
280/1200
-
Hydraulic tank capacity(L)::
-
500
-
Application:
-
Construction Engineering
Quick Details
-
Power Type:
-
Diesel
-
Max. vertical conveying distance:
-
90M
-
Max. horizontal conveying distance:
-
500M
-
Productivity:
-
20M³/H
-
Place of Origin:
-
Henan China
-
Brand Name:
-
YG
-
Weight:
-
6000 kg
-
Dimension(L*W*H):
-
6200*2050*2200mm
-
Name:
-
mini portable concrete mixer with pump concrete mixer
-
Power:
-
90kw
-
Max. theoretic concrete delivery volume:
-
80/53 m3/h
-
Max. theoretic delivery pressure::
-
13/7 Mpa
-
Distribution valve:
-
S Pipe Valve
-
Hopper volume (m3)::
-
0.8m3/h
-
Rated engine speed(r/min)::
-
1480
-
Delivery distance V/H(m)::
-
280/1200
-
Hydraulic tank capacity(L)::
-
500
-
Application:
-
Construction Engineering
Top Quality concrete pump price for sale
Product Description
Concrete pump, consists of a pump body and a conveying pipe. It is a kind of machinery that uses pressure to continuously transport concrete along pipes. It is mainly used in house construction, bridges and tunnel construction.
Feature:
1.R eliable performance , smooth operation .
2. High material suction capability , strong pumping capability.
3.Long life S pipe and wearing parts.
4.Advanced hydraulic and electrical systems, safety and reliability .
5.Intelligent control system,high efficiency.
6.Wireless remote control function,more convenient, simple operation.
Product parameter
| Model No | HBT601390ES | HBT6016110ES | HBT801390ES | HBT8013110ES |
|
Maximum through (m3/h) |
67/43 | 65/41 | 80/53 | 86/60 |
|
Delivery Pressure (Mpa) |
13/7 | 16/11 | 13/7 | 13/7 |
|
Delivery distance V/H(m) |
280/1200 | 350/1500 | 280/1200 | 310/1400 |
|
Distribution valve |
S-Tube valve | |||
|
Conveyor cylinder (mm) |
Φ200*1600 | Φ200*1600 | Φ200*1800 | Φ200*1800 |
|
Hopper volume (m3) |
0.8 | 0.8 | 0.8 | 0.8 |
| Rated power(kw) | 90 | 110 | 90 | 110 |
|
Rated engine speed(r/min) |
1480 | |||
|
Hydraulic tank capacity(L) |
500 | |||

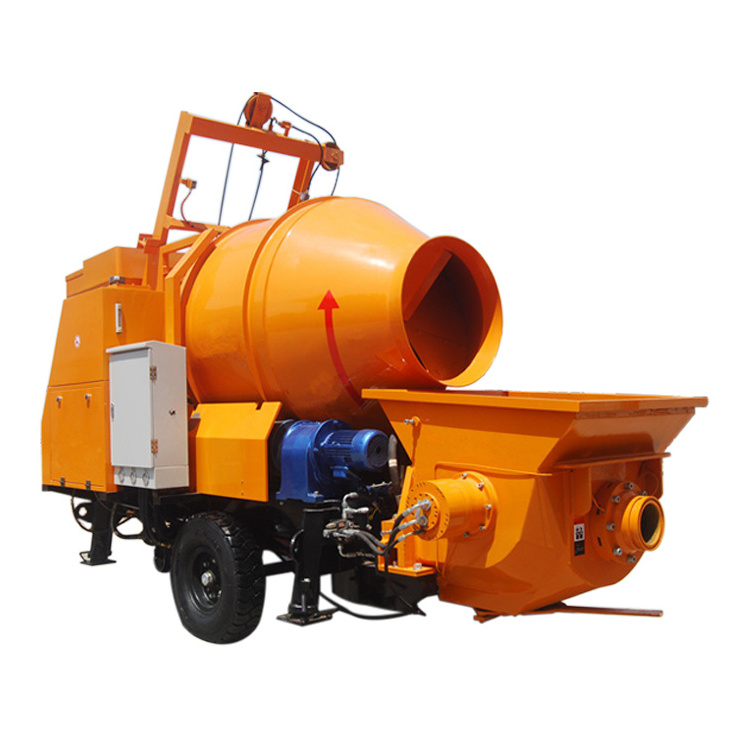

Product Show
Working show
