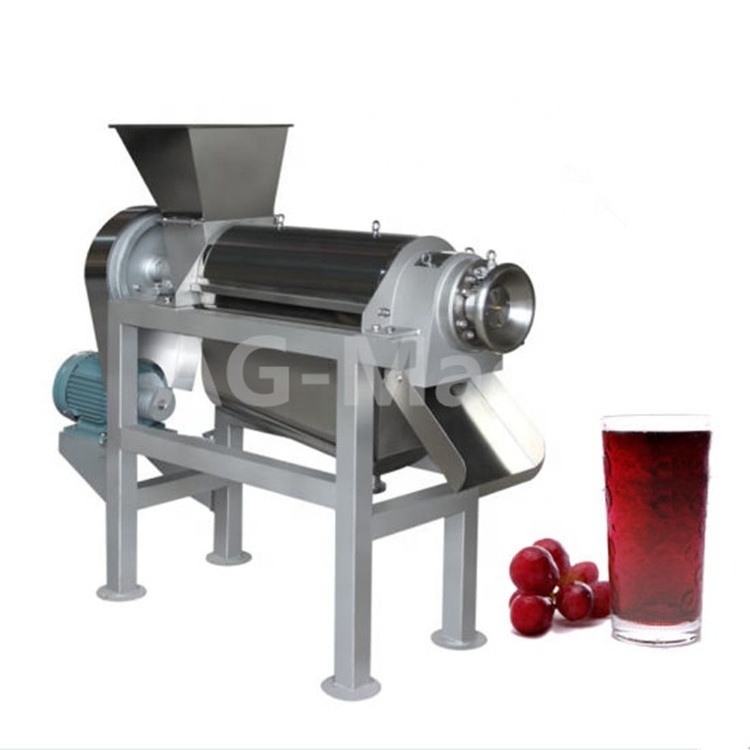

High Efficiency Screw Pomegranate Orange Tomato Mango Fruit Juicer Crushing Pressing Machine

High Efficiency Screw Pomegranate Orange Tomato Mango Fruit Juicer Crushing Pressing Machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $2475

≥5 Sets

US $1485

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Henan, China

Voltage:: 380V,50Hz

Power:: 3KW

Dimension(L*W*H):: 950*350*1200mm

Weight:: 185 KG

Quick Details

Raw material:: Fruit, Vegetables

Model Number:: AG-1T

Brand Name:: AG Mach

Place of Origin:: Henan, China

Voltage:: 380V,50Hz

Power:: 3KW

Dimension(L*W*H):: 950*350*1200mm

Weight:: 185 KG

High Efficiency Screw Pomegranate Orange Tomato Mango Fruit Juicer Crushing Pressing Machine

Related Products

Specification

Specification

Output

Spiral diameter

Crushing motor power

Main
motor power

Filter

Dimensions

Juice Extractor without Crusher

AG-0.5T

0.5T/h

88mm

1.5kw

0.6mm

780*380*800mm

AG-1.0T

1T/h

125mm

3kw

0.6mm

909*320*833mm

AG-1.5T

1.5T/h

175mm

7.5kw

0.6mm

1400*500*1380mm

Juice Extractor with Crusher

AG-0.5TG

0.5T/h

88mm

1.5kw

0.6mm

990*380*1100mm

AG-1.0TG

1T/h

125mm

1.5kw

3kw

0.6mm

950*350*1200mm

AG-1.5TG

1.5T/h

175mm

2.2kw

7.5kw

0.6mm

1400*550*1700mm

Structure:
It consists of front support, feed hopper, crushing, spiral, filter net, juice extractor, rear support, slag sump, etc. The left end of the spiral main shaft is supported in the rolling bearing housing, and the right end is supported by the hand wheel bearing. In the seat, the motor is driven by a pair of V-belt drive screws.

Product Description

Use and scope of application:

1. The juicing machine is full made of 304 stainless steel and it is cold press, which is very health and safe.

2. The juicer extractor machine is widely used for kinds of fruits and vegetables, such as the carrot, celery, spinach, tomatoes,pineapple,pear, apple, orange,grapes, watermelons and so on. It is widely used in the fruit processing industry, food and beverage processing factory.

3.The juicer extractor machine uses globally proven technology with excellent product quality , it can well meet your low investment, high output of juice.

4. The juicer extractor machine is easy to clean, maintain and operate.

5. Low price&CE Approve.

Advantage ：

1).Detachable parts easy to clean and operate.

2).Non-slipping rubber feet prevents the machine from slipping during operation.

3).Detachable cutting tool structure, PC jar, lid and stainless steel blade assembly are safe and easy for cleaning.

Prepare：

1. Stabilize the machine on the foundation and tighten the chassis foot screws;

2. Open the cylinder, clean up the debris, and clean it. When cleaning, be careful not to let the water leak on the motor;

3. Adjusting the gap between the scraper and the inner wall of the screen as 1.5~2mm;

4. Adjust Scraper helix angle; Rotate the spindle by hand to check whether it is flexible, and close the upper cylinder tightening screw.

Detailed Images

Working Principle

Working principle of juicer :

1. The main component of the equipment is the broken pulp, juice and skin entering the spiral juice extractor through the feeding hopper.
2. The spiral diameter gradually increases along the direction of the slag outlet and the pitch gradually decreases.
3. When the material is spirally advanced, the spiral is caused by the spiral.
4. The volume of the cavity is reduced to form a press of the material.
5. The direction of rotation of the helical main shaft is viewed from the feed hopper toward the slag groove in a clockwise direction.
6. The raw material is added to the feed hopper, pressed under the advancement of the spiral, and the pressed juice flows through the filter into the bottom of the juice extractor, and the waste is discharged through the annular gap formed between the spiral and the tapered portion of the pressure regulation.
7. The movement of the pressure regulating head in the axial direction can adjust the size of the gap.
8. For clockwise (when the seat is turned from the tapping groove of the device to the end of the feed hopper, the head is turned to the left, the gap is reduced, and the gap is enlarged.)
9. The size of the gap is changed, that is, the row is adjusted. The resistance of the slag.
10. The slag removal rate can be changed, but if the void is too small, under strong extrusion, some of the slag particles will be extruded through the filter together with the juice.
11. Although the juice is increased, the quality of the juice is relatively decreased, and the size of the void should be regarded as User specific process requirements.
12. Stainless steel spiral fruit and vegetable juice extractor is suitable for a variety of fresh fruit and vegetable beating separation.

Packing&Shipping

FAQ

Q1. What kind of fruits or vegetables can be used for this juicer?
A: Fruits such as apple, orange, watermelon, pear, grape, kiwi, lemon, pineapple, litchi, strawberry, pawpaw, mulberry, bayberry,peach (denucleated) and etc; and vegetables like Tomato, cucumber, carrot, pepper, celery (cutting-off)

Q2. What about the voltage?
A: Our standard motor voltage is 380V, 50Hz; three phases.

Q3. What about the lead time?
A: Generally it takes 7-12 workdays for one unit with standard motor, it takes 15 days if you need cutomized motor.

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by sea. The shipping time is different to different countries by ocean shipping.

Q5: Do you offer guarantee for the products?
A: Yes, we offer 1-2 years quality warranty to our products.

Q6. How to proceed an order for the juicer machine?
A: 1) Let us know your requirements or application.
2) We will quote according to your requirements or our suggestions.
3) We will prepare the proforma invoice, and customer can arrange the deposit.
4) We arrange the production and shipment.
