Quick Details
-
Brand Name:
-
cnpingan
-
Voltage:
-
380V/440V Optional
-
Dimension(L*W*H):
-
Machine Size
-
Weight (T):
-
2 T
-
Model Number:
-
J93-1000
-
Motor Power (kw):
-
400 kw
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Widely used:
-
Refractory material brick press
-
Application material:
-
Powder can be press moulding
-
Modes:
-
Other mode can be recommended according to need
-
Product name:
-
Double plate screw press
-
Application:
-
Refractory brick forming
-
Function:
-
Refractory brick forming
-
CNC or Not:
-
Normal
-
Power Source:
-
Mechanical
Quick Details
-
Machine Type:
-
Four-column Three-beam Hydraulic Press
-
Return Force (kN):
-
1000 kN
-
Place of Origin:
-
China
-
Brand Name:
-
cnpingan
-
Voltage:
-
380V/440V Optional
-
Dimension(L*W*H):
-
Machine Size
-
Weight (T):
-
2 T
-
Model Number:
-
J93-1000
-
Motor Power (kw):
-
400 kw
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Widely used:
-
Refractory material brick press
-
Application material:
-
Powder can be press moulding
-
Modes:
-
Other mode can be recommended according to need
-
Product name:
-
Double plate screw press
-
Application:
-
Refractory brick forming
-
Function:
-
Refractory brick forming
-
CNC or Not:
-
Normal
-
Power Source:
-
Mechanical

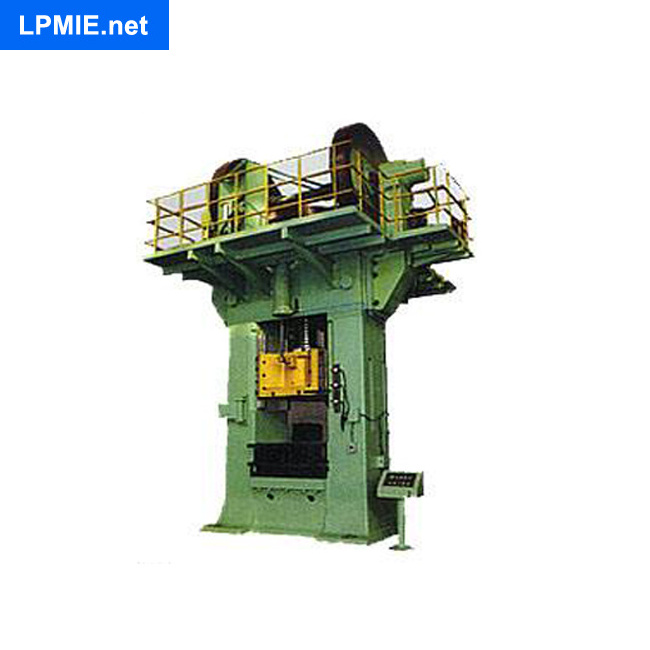

Refractory brick forming Press ---J93 series double plate screw press
1.Introduction
J93 series Friction Bricl Press is desinged according to requirement of refractory material press technology.
Adopt many advanced technologies such as arbitrary point to brake, overload insurance for friction. Features simple structure, huge beat force, more stroke times, safe and reliable for working, simple maintenance and so forth..
2.Technical Specifications
|
Item |
Unit |
Main Technical Parameters of J93 Series |
|||||||
|
J93-
|
J93-
|
J93-
|
J93-
|
J93-1000B
|
J93-1000C
|
J93-1600C
|
|||
|
Nominal Pressure |
KN |
4000 |
6300 |
6300 |
6300 |
10000 |
10000 |
16000 |
|
|
Allowable Working Force |
KN |
6300 |
10000 |
10000 |
10000 |
16000 |
16000 |
25000 |
|
|
Max. Working Force |
KN |
8000 |
12500 |
12500 |
12500 |
20000 |
20000 |
32000 |
|
|
Executed Stroke |
MM |
500 |
600 |
600 |
600 |
700 |
700 |
700 |
|
|
Stroke Times |
Min/Times |
20 |
13 |
13 |
13 |
10 |
10 |
10 |
|
|
Min. Closing Height |
MM |
520 |
650 |
650 |
650 |
700 |
700 |
750 |
|
|
Thickness of Workbench Plate |
MM |
120 |
180 |
180 |
180 |
200 |
200 |
200 |
|
|
Top Brick Approach |
|
Rigidity |
Rigidity |
Rigidity |
Rigidity |
Rigidity |
Rigidity |
Rigidity |
|
|
Top Brick Stroke |
MM |
350 |
350 |
350 |
350 |
500 |
500 |
500 |
|
|
Slider Bottom Surface |
Front Rear |
MM |
635 |
700 |
700 |
700 |
1190 |
1190 |
1000 |
|
Left Right |
MM |
635 |
700 |
700 |
700 |
800 |
800 |
900 |
|
|
Workbench Surface |
Front Rear |
MM |
820 |
920 |
920 |
920 |
1200 |
1200 |
1250 |
|
Left Right |
MM |
730 |
820 |
820 |
820 |
1000 |
1000 |
1100 |
|
|
Overall Size |
Front Rear |
MM |
2110 |
4387 |
4387 |
4387 |
6000 |
5355 |
4500 |
|
Left Right |
MM |
2812 |
4694 |
4694 |
4694 |
5670 |
4900 |
5742 |
|
|
Height |
MM |
5155 |
6060 |
6060 |
6060 |
7250 |
7290 |
8090 |
|
|
Main Motor Power/Quality |
KW
|
37
|
55
|
55
|
55
|
75
|
90
|
132
|
|
Packing
Whole machine and every parts wrapped by plastic film for dusting-proof.
Packed in export standard wooden case with pallet, conducive to forklift handling.
Shipping:
Shipping method: by sea, by air, by international express company.
Delivery time: 30-45 days after order confirm.
Forwarder: We have shipping forwarder agent for sending the goods to all over the world, can arrange shippment to destination port and to door for customer. We also accept forwarder agent of customer.
Why choose us?
11 years gold supplier of Alibaba.
20 years experience of machinery.
Trade assurance member of Alibaba.
How long can we get the goods?
For standard machine, we usually delivery in two weeks.
Customized machine delivery in 30-60 days.
How should I do if meet some trouble while using?
We supply 24 hours online service.
What is your terms of payment?
Online t rade assurance order, L/C, T/T or as negotiated terms with clients.
Guarantee:
12 months for the whole machine. Within 12 months under normal use and maintenance, if something is wrong with the machine, you will get spare part for free. Out of 12 months, you will get spare parts at cost price. You will also get technical support and service all the lifetime.
Technical support:
1, Technical support by phone, email or MSN/Skype around the clock
2, Friendly English version manual and operation video CD disk
3, Engineer available to service machinery overseas
After sales services:
Normal machine is properly adjusted before dispatch. You will be able to use the mchines immediately.
You will be able to get free training advice towards our machine in our factory. You will also get free suggestion and consultation, technical support and service by email/fax/tel and lifetime technical support.
