Quick Details
-
Brand Name:
-
HIGHJOIN
-
Model Number:
-
HFM900-K24
-
Model Type:
-

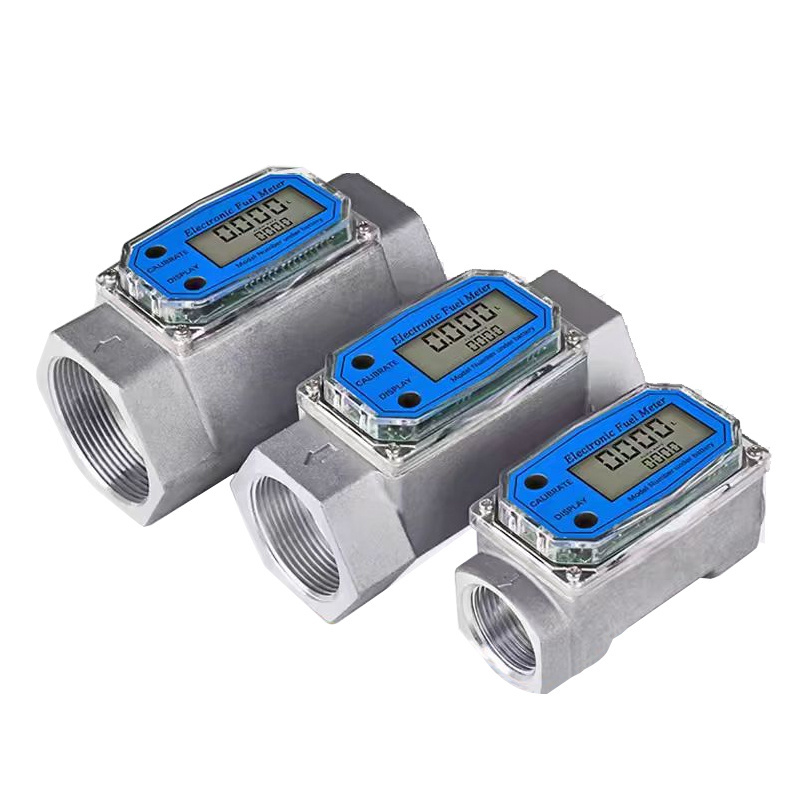

Electronic Digital Turbine Flow Meter
-
Measuring medium:
-
Diesel fuel, gasoline, kerosene, methanol, water
-
Process connection:
-
Thread
-
Flow unit display:
-
QTS, PTS,L,GAL,m³
Quick Details
-
Type:
-
Turbine meters
-
Material:
-
Stainless Steel, Aluminium alloy, Stainless Steel,Aluminium alloy
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
HIGHJOIN
-
Model Number:
-
HFM900-K24
-
Model Type:
-
Electronic Digital Turbine Flow Meter
-
Measuring medium:
-
Diesel fuel, gasoline, kerosene, methanol, water
-
Process connection:
-
Thread
-
Flow unit display:
-
QTS, PTS,L,GAL,m³
|
Nominal Diameter
|
DN25
|
DN40
|
DN50
|
DN65
|
DN80
|
|
Thread Connection
|
1’’
|
1.5’’
|
2’’
|
2.5’’
|
3’’
|
|
Min. flow
|
10L/min
|
40L/min
|
60L/min
|
80L/min
|
80L/min
|
|
Max.flow
|
100L/min
|
280L/min
|
500L/min
|
1000L/min
|
1000L/min
|
|
Accuracy
|
±1%
|
±1%
|
±1%
|
±1%
|
±1%
|
|
Max.working pressure
|
0.6Mpa
|
0.6Mpa
|
0.6Mpa
|
0.6Mpa
|
0.6Mpa
|
|
Single measurement range
|
9999
|
9999
|
9999
|
9999
|
9999
|
|
Cumulative measurement range
|
29999999
|
29999999
|
29999999
|
29999999
|
29999999
|
|
Weight
|
0.35KG
|
0.6KG
|
0.85KG
|
1.1KG
|
0.9KG
|
|
Model Type
|
Water-proof Digital Turbine Flow Meter
|
|
|
|
Accuracy
|
±1%
|
|
|
|
Measuring medium
|
Clean and stable liquid
|
|
|
|
Material
|
Aluminium alloy,plastic etc.
|
|
|
|
Process connection
|
Female thread
|
|
|
|
Nominal Diameter
|
DN20
|
DN25
|
|
|
Flow range
|
4-50L/min
|
0-100L/min
|
|
|
Max.flow
|
100L/min
|
280L/min
|
|
|
Single measurement range
|
9999
|
9999
|
|
|
Cumulative measurement range
|
29999999
|
29999999
|
|
|
Weight
|
0.325KG
|
0.321KG
|
|
Q: Are you manufacturer or trading company？
A: We are manutacturer wtich focuses on sensor for 10 years.
Q: What's your quality control system？
A: MC，ISO9001，CE Certificated.
Q: What is the warranty of your products？
A: Our warranty tirme is 18 months after shipment。
Q: What is lead time of your product？
A: Normally，our factory lead time is within 10-15 working days for products without customization. You can also check lead time detail with our sales depending on different items.
Q: Do you provide customized products？
A: Yes, we can laser mark your logo on products; OEM and ODM customization are welcomed.
Q: What is your MOQ？
A: We have no MOQ limt，small quantity order is acceptable.
Q: What's the transport？
A: EXpress uch as DHL，FedEx，TNT, UPS for freight prepaid; and we can also use your own courier account to do the freight colloct.For more goods we can arrange by air or by Sea.
Q: What is your terms of payment？
A: We could acoept T / T，Paypal，WU.
Q: What's your quality control system？
A: MC，ISO9001，CE Certificated.
Q: What is the warranty of your products？
A: Our warranty tirme is 18 months after shipment。
Q: What is lead time of your product？
A: Normally，our factory lead time is within 10-15 working days for products without customization. You can also check lead time detail with our sales depending on different items.
Q: Do you provide customized products？
A: Yes, we can laser mark your logo on products; OEM and ODM customization are welcomed.
Q: What is your MOQ？
A: We have no MOQ limt，small quantity order is acceptable.
Q: What's the transport？
A: EXpress uch as DHL，FedEx，TNT, UPS for freight prepaid; and we can also use your own courier account to do the freight colloct.For more goods we can arrange by air or by Sea.
Q: What is your terms of payment？
A: We could acoept T / T，Paypal，WU.
