Quick Details
-
Application:
-
Engineering construction
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Arctic Tern
-
Dimension(L*W*H):
-
1650*550*1200mm
-
Weight:
-
320 kg
-
Power:
-
220V,380V
-
Marketing Type:
-
New Product
-
Color:
-
Customizable
-
Applicable Material Ratio:
-
0.7-1:1:3
-
Pressure:
-
2-5MPa
-
Air Compressor Exhaust:
-
3-6m3/h
-
Particle Diameter:
-
Below 5mm
-
Transmission Distance:
-
Horizontal 60m Vertical 30m
-
Volume:
-
50L-130L
-
Product Name:
-
Mortar Spraying Machine
-
engine:
-
Electric and diesel
-
LOGO:
-
Customizable
Quick Details
-
Max. vertical conveying distance:
-
50M
-
Max. horizontal conveying distance:
-
50M
-
Hopper Capacity:
-
100L
-
Application:
-
Engineering construction
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Arctic Tern
-
Dimension(L*W*H):
-
1650*550*1200mm
-
Weight:
-
320 kg
-
Power:
-
220V,380V
-
Marketing Type:
-
New Product
-
Color:
-
Customizable
-
Applicable Material Ratio:
-
0.7-1:1:3
-
Pressure:
-
2-5MPa
-
Air Compressor Exhaust:
-
3-6m3/h
-
Particle Diameter:
-
Below 5mm
-
Transmission Distance:
-
Horizontal 60m Vertical 30m
-
Volume:
-
50L-130L
-
Product Name:
-
Mortar Spraying Machine
-
engine:
-
Electric and diesel
-
LOGO:
-
Customizable
Products Description
Spraying machine suitable for spraying range:
cement mortar, putty powder, coating, emulsion paint, true stone paint, thermal insulation mortar, waterproof material, fire resistant material, heat insulation material, sound-absorbing material and other water-soluble materials
1. The connection between the spray gun and the feeding tube can be rotated for easy operation.
2. High construction efficiency and good quality.And small size, easy to handle on site,
3. The sealant sleeve is made of black rubber, which is resistant to wear and corrosion. A protective umbrella is added to the equipment.
4. Easy to use, fast, material saving, labor saving, more money, only three people per machine, easily up to 200 square meters per hour (thickness of 1.5-2cm).
Working 8 hours a day, it can spray more than 100O square meters, equivalent to 20 skilled workers for a day of hard work.
Shorten time limit for a project, the profit that creates to you is absolutely considerable.
Product Details
The products are suitable for spraying: building internal and external walls, ceiling, wall pulling and slurry, high-speed
embankment slope protection, etc
1. Adjust the flow size, bring out the spraying effect .
2. In addition to the electric control box can switch, also equipped with remote switch spraying .
3.The connection between the spray gun and the feed pipe can be rotated for easy operation
4. High construction efficiency and good quality .
5. Compact size, easy to carry, and accessories low cost, simple maintenance .

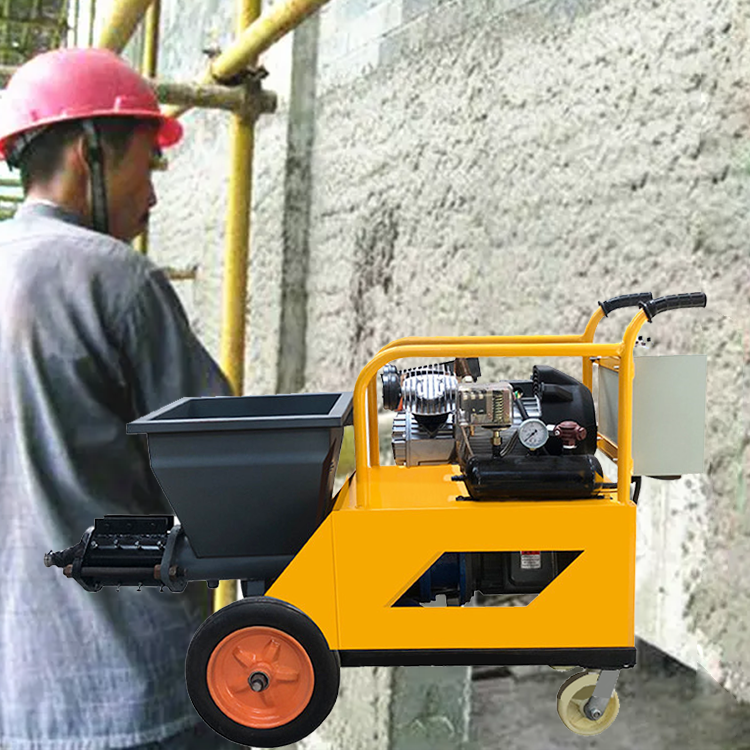

Product display
Product advantages
Mortar Spray Machine Cement Solid Tire
Equipped with solid tires, anti-skid in wet floor, thick and wear-resistant, more convenient to move.
Electric Box
One-button start independent electribox, Proteet electrical applianees safe, durable and fruuble free.
Mortar Sprayer Feeding Cabin
Large capacity funnel, special strenghten screw, smooth discharge, easy to clean.
Cement Mortar Grouting Spraying Machine Mortar Spraying Pump
Serew spraying pump, sufticient power far conveying, strong spraying.
Why Choose Us
|
Service
|
|
|
|
|
||||
|
* Quality Control
|
We have independent QC departments both in the company and factories which strictly control the quality of each process to enable our production lines to reach Chinese National Standards, even International Standards.
|
|
|
|
||||
|
* Technology R&D
|
We have R&D centers and innovative designing teams for different kinds of production lines
|
|
|
|
||||
|
* After Sale Service
|
Warranty period 1 year , after this period , we are willing to give help if customer needs accessory . The real cooperation will not end at the delivery . we believe that satisfied after sale service means a lot.
|
|
|
|
||||
|
* Inspected by the Sellers
|
After completing the manufacturing and assembling of the equipments, we will test the machines and commissioning in the workshop.
|
|
|
|
||||
|
* Inspected by the Buyers
|
After confirmation of a sound work of the line, we will invite our customer to send their representatives to inspect the production lines in our factories.
|
|
|
|
||||
