Quick Details
-
Engine Brand:
-
top brand
-
Travel Speed:
-
8km/h
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
ORIEMAC
-
Dimension(L*W*H):
-
4925*2530*3470mm
-
Marketing Type:
-
Hot Product 2023
-
Operating weight:
-
30300kg
-
Tire quantity(front):
-
4pcs
-
Tire quantity(rear):
-
5pcs
-
Tire specification:
-
13/80-20
-
Min. turning radium:
-
7620mm
-
Compaction width:
-
2360mm
-
Wheelbase:
-
3840m
-
Engine model:
-
SC7H180.2G3
-
Engine power:
-
132kw
-
Engine speed:
-
1800r/min
Quick Details
-
Type:
-
Vibratory Roller
-
Power:
-
132kW
-
Weight:
-
30300kg
-
Engine Brand:
-
top brand
-
Travel Speed:
-
8km/h
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
ORIEMAC
-
Dimension(L*W*H):
-
4925*2530*3470mm
-
Marketing Type:
-
Hot Product 2023
-
Operating weight:
-
30300kg
-
Tire quantity(front):
-
4pcs
-
Tire quantity(rear):
-
5pcs
-
Tire specification:
-
13/80-20
-
Min. turning radium:
-
7620mm
-
Compaction width:
-
2360mm
-
Wheelbase:
-
3840m
-
Engine model:
-
SC7H180.2G3
-
Engine power:
-
132kw
-
Engine speed:
-
1800r/min
PRODUCT DISCRIPTION

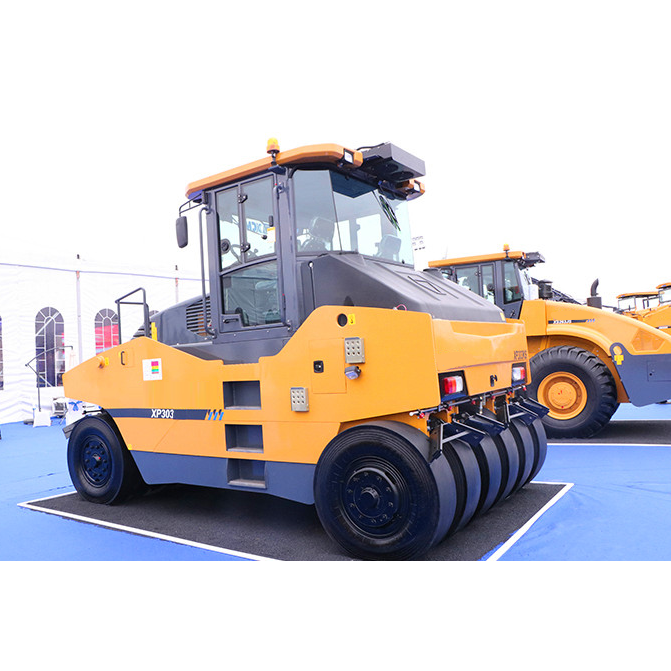

2023 New Roller 30 Ton Roller Hydraulic Phenunatic Tire Roller XP303
Introduction
XP303 pneumatic roller is a large-tonnage tyre roller produced according to market requirements, which will take pneumatic tyres as working device for compacting paved materials. The tyre roller is mainly applicable for compacting operation of asphalt
pavement, foundation layer, secondary foundation layer, dam and filling engineering. It is an ideal set of compacting equipment
for building high grade highway, airport, port, dam and industrial construction site.
XP303 pneumatic roller is a large-tonnage tyre roller produced according to market requirements, which will take pneumatic tyres as working device for compacting paved materials. The tyre roller is mainly applicable for compacting operation of asphalt
pavement, foundation layer, secondary foundation layer, dam and filling engineering. It is an ideal set of compacting equipment
for building high grade highway, airport, port, dam and industrial construction site.
CONTACT
Hi, I'm
Nancy.
If you are interested please contact me
Mobile/WhatsApp/WeChat: +86 18221941029
E-mail: nancy@oriemac.com
Mobile/WhatsApp/WeChat: +86 18221941029
E-mail: nancy@oriemac.com
PRODUCTS PICTURES
PRODUCT PARAMETER
|
Item
|
|
Unit
|
XP303
|
|
|
Maximum operating mass
|
|
kg
|
30300
|
|
|
Compaction width
|
|
mm
|
2360
|
|
|
Overlapping of tyres
|
|
mm
|
65
|
|
|
Ground pressure
|
|
kPa
|
200-545
|
|
|
Minimum turning radius
|
|
mm
|
7620
|
|
|
Swing quantity of front wheel
|
|
mm
|
50
|
|
|
Minimum ground clearance
|
|
mm
|
300
|
|
|
Theoretical gradeability
|
|
%
|
20
|
|
|
Wheel base
|
|
mm
|
3840
|
|
|
Travel speed
|
Gear I
|
km/h
|
0-8
|
|
|
|
Gear II
|
km/h
|
0-17
|
|
|
Engine
|
Type
|
-
|
SC7H180.2G3
|
|
|
|
Rated power
|
kw
|
132
|
|
|
|
Rated speed
|
r/min
|
1800
|
|
|
|
Rated fuel consumption rate
|
g/kw.h
|
≤233
|
|
|
Tyre specification
|
|
-
|
13/80-20
|
|
|
Tyre tread pattern
|
|
-
|
Smooth tread
|
|
|
Number of tyres
|
|
-
|
Front4 rear 5
|
|
|
Length(standard water sprinkler)
|
|
mm
|
4925
|
|
|
Length(standard oil sprinkler)
|
|
mm
|
5015
|
|
|
Width
|
|
mm
|
2530
|
|
|
Height
|
|
mm
|
3470
|
|
|
Diesel tank volume
|
|
L
|
170
|
|
|
Water tank volume
|
|
L
|
650
|
|
