Dexin NDS3508B Tuner to IP Gateway Receiver
Dexin NDS3508B Tuner to IP Gateway Receiver

Dexin NDS3508B Tuner to IP Gateway Receiver

FOB Reference Price: Get Latest Price
≥1 Pieces
US $300
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Place of Origin:
Sichuan, China
Input:
16 Tuner, 2 ASI
output:
512 SPTS or 16 MPTS
BISS descrambling:
Supported
DisEqc function:
supported
gateway:
Tuner to IP Gateway
Constellation:
QPSK, 8PSK, 8APSK, 16APSK, 32APSK
Max input bitrate:
≤125 Mbps
management:
web based

Quick Details

FTA(Free To Air):
Yes
Type:
Digital
High Definition:
Yes
Place of Origin:
Sichuan, China
Input:
16 Tuner, 2 ASI
output:
512 SPTS or 16 MPTS
BISS descrambling:
Supported
DisEqc function:
supported
gateway:
Tuner to IP Gateway
Constellation:
QPSK, 8PSK, 8APSK, 16APSK, 32APSK
Max input bitrate:
≤125 Mbps
management:
web based

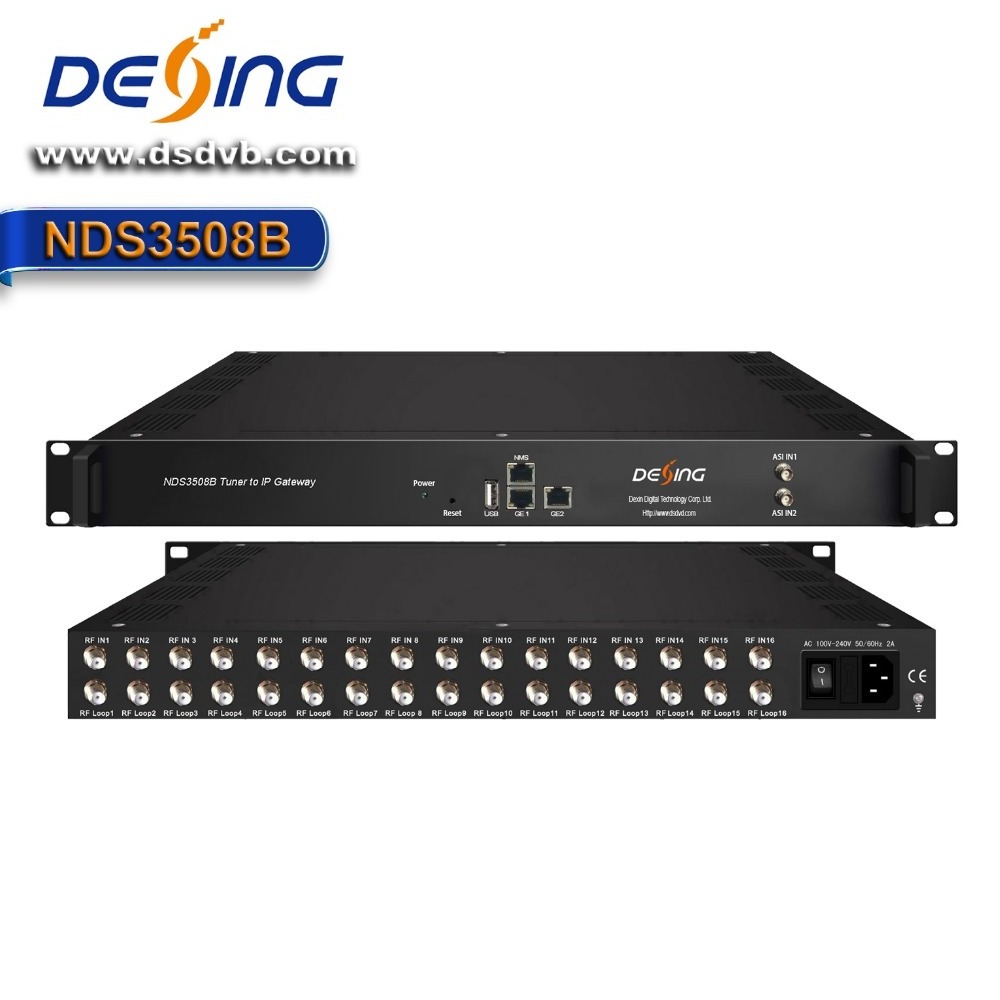

Dexin NDS3508B Tuner to IP Gateway

Product Description

Principle Chart

Outline

NDS3508B Tuner to IP Gateway is a head-end interface conversion device which supports MPTS and SPTS output switchable. It supports 16 MPTS or 512 SPTS output over UDP and RTP/RTSP protocol. It is integrated with tuner demodulation (or ASI input) and gateway function, which can demodulate the signal from 16 tuners into IP package, or directly convert the TS from ASI input and tuner into IP package, then output the IP package through different IP address and ports. BISS function is also embedded for tuner input to descramble your tuner input programs.

Key Features

l Support 16 FTA DVB- S/S2/S2X (DVB-C/T/(T)/ISDB-T/ATSC optional )input, 2 ASI input

l Support BISS descrambling

l Support DisEqc function

l 16 MPTS or 512 SPTS output (MPTS and SPTS output switchable)

l 2 GE mirrored output (IP address and port number of GE1 and GE2 are different), up to 850Mbps---SPTS

l 2 independent GE output port, GE1 + GE2---MPTS

l Support PID filtering, re-mapping (Only for SPTS output)

l Support “Null PKT Filter” function (Only for MPTS output)

l Support Web operation

Specifications

Input

Optional 1: 16 tuners input +2 ASI input---SPTS output

Optional 2:14 tuners input +2 ASI input --- MPTS output

Optional 3:16 tuners input --- MPTS output

Tuner Section

Multi-mode tuners switchable

(New Type)

DVB-C

Frequency In

60~890MHz

Standard

J.83A(DVB-C), J.83B, J.83C

Constellation

16/32/64/128/256 QAM

DVB-T/ (T)

Frequency In

60~890MHz

Bandwidth

6/7/8 M bandwidth

ISDB-T

Frequency In

60~890MHz

Version 1

DVB-S

Frequency In

950-2150MHz

Symbol rate

1~45 Msps

FEC

1/2, 2/3, 3/4, 5/6, 7/8

Constellation

QPSK

DVB-S2

Frequency In

950-2150MHz

Symbol rate

1~45 Msps

FEC

1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10

Constellation

QPSK, 8PSK

Version 2

(New Type)

DVB-S

Frequency In

950 ~ 2150MHz

Symbol rate

0.5 ~ 45Msps

Signal Strength

- 65- -25dBm

FEC

1/2, 2/3, 3/4, 5/6, 7/8

Constellation

QPSK

Max input bitrate

125 Mbps

DVB-S2

Frequency In

950~2150MHz

Symbol rate

QPSK/8PSK /16APSK :0.5~45 Msps

32APSK: 0.5~34Msps;

FEC

QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10

8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10

16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10

32APSK: 3/4, 4/5, 5/6, 8/9, 9/10

Constellation

QPSK, 8PSK, 16APSK, 32APSK

Max input bitrate

125 Mbps

DVB-S2X

Frequency In

950~2150MHz

Symbol rate

QPSK/8PSK /16APSK :0.5~45 Msps

8APSK: 0.5~40Msps

32APSK: 0.5~34Msps

FEC

QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10, 13/45, 9/20, 11/20

8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10

8APSK: 5/9-L, 26/45-L

16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10, 1/2-L, 8/15-L, 5/9-L, 26/45, 3/5, 3/5-L, 28/45, 23/36 , 2/3-L, 25/36, 13/18, 7/9, 77/90

32APSK: 3/4, 4/5, 5/6, 8/9, 9/10, 2/3-L, 32/45, 11/15, 7/9

Constellation

QPSK, 8PSK, 8APSK, 16APSK, 32APSK

Max input bitrate

125 Mbps

ATSC

Frequency In

54~858MHz

Bandwidth

6M bandwidth

Constellation

8VSB

BISS Descrambling

Mode 1, Mode E (Up to 850Mbps) (descramble individual program)

Output

512 SPTS IP mirrored output over UDP and RTP/RTSP protocol through GE1 and GE2 port (IP address and port number of GE1 and GE2 are different) , Unicast and Multicast

16 MPTS IP output (for Tuner/ASI passthrough) over UDP and RTP/RTSP protocol through GE1 and GE2 port, Unicast and Multicast

System

Web based management

Ethernet software upgrade

Miscellaneous

Dimension

482mm×410mm×44mm (W×L×H)

Approx weight

3.6kg

Environment

0~45 (work) ; -20~80 ( Storage )

Power requirements

100~240VAC , 50/60Hz

Power consumption

20W

Tuner Input Options:

l 8 DVB-C Tuners + 8 ATSC Tuners

l 8 DVB-C Tuners + 8 DVB-T/(T) Tuners

l 8 DVB-S2/S2X Tuners + 8 DVB-T/(T) Tuners

l 8 DVB-S2/S2X Tuners + 8 ISDB-T Tuners

l 16 DVB-S/S2/S2X/DVB-C/T/(T) /ISDB-T/ATSC Tuners
