Name:
-

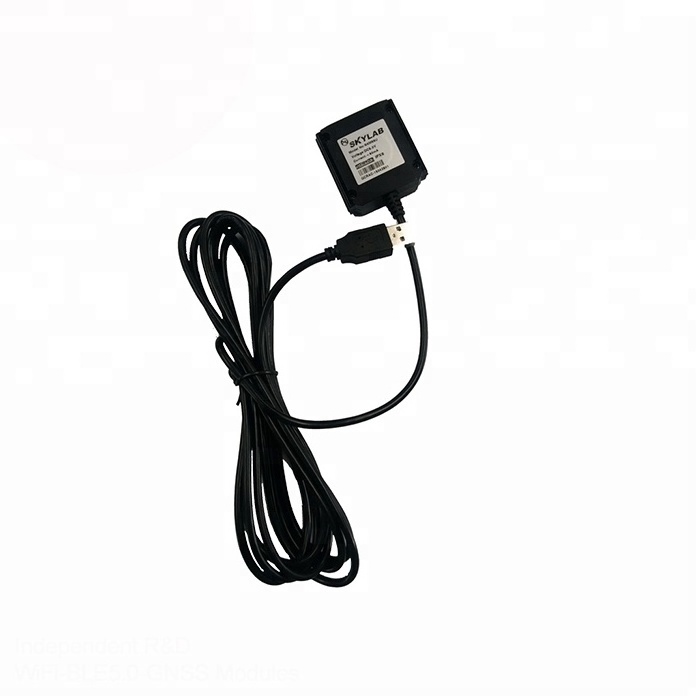

SKYLAB Ultra High Sensitivity and Low Power GPS Receiver Module
-
High sensitivity:
-
-165dBm
-
Size:
-
46(L)* 45(W) * 15(H)mm
-
Embedded GPS antenna:
-
25(L)* 25(W)* 4.0(H)mm
-
Support walk model:
-
Yes
-
Master chip:
-
MTK3339
-
Pin Assignment:
-
USB/Micro-fit 3.0/DB 9
-
Satellite:
-
GPS/GLONASS/Beidou/GALILEO/SBAS/WAAS/EGNOS/MSAS/QZSS
-
Protocol Type:
-
RS232, USB, UART(TTL)
Quick Details
-
Resolution:
-
800*480
-
Function:
-
Other, GPS Navigation
-
Warranty:
-
5 Years
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SKYLAB
-
Model Number:
-
SKM55
-
Name:
-
SKYLAB Ultra High Sensitivity and Low Power GPS Receiver Module
-
High sensitivity:
-
-165dBm
-
Size:
-
46(L)* 45(W) * 15(H)mm
-
Embedded GPS antenna:
-
25(L)* 25(W)* 4.0(H)mm
-
Support walk model:
-
Yes
-
Master chip:
-
MTK3339
-
Pin Assignment:
-
USB/Micro-fit 3.0/DB 9
-
Satellite:
-
GPS/GLONASS/Beidou/GALILEO/SBAS/WAAS/EGNOS/MSAS/QZSS
-
Protocol Type:
-
RS232, USB, UART(TTL)
small mediatek high accuracy satellite gps gnss rtk usb gps receiver
The SkyLab SKM55 Series with embedded GPS antenna enables high performance navigation in the most stringent applications and solid fix even in harsh GPS visibility environments. It is based on the high performance features of the MediaTek single-chip architecture, Its –165dBm tracking sensitivity extends positioning coverage into place like urban canyons and dense foliage environment where the GPS was not possible before. The UART and USB connector design is the easiest and convenient solution to communication with other electronic equipment.
Features
1.Ultra high sensitivity: -165dBm
2.22 tracking/66 acquisition-channel receiver
3.WAAS/EGNOS/MSAS/GAGAN support
4.NMEA protocols (default: 9600bps)
5.Internal back-up battery
6.Embedded patch antenna 25 x 25 x 4.0 mm
7.Operating temperature range: -40 to 85℃
8.RoHS compliant (Lead-free)
9.Tiny form factor: 46* 45 * 15mm
Performance Specification
|
Parameter |
Specification |
|
|
GPS receiver |
||
|
Receiver Type |
L1 frequency band, C/A code, 22 Tracking / 66 Acquisition-Channel |
|
|
Sensitivity |
Tracking Acquisition |
-165dBm -148dBm |
|
Accuracy |
Position
Velocity |
3.0m CEP50 without SA (Typical Open Sky) 0.1m/s without SA |
|
Acquisition Time |
Cold Start Warm Start Hot Start Re-Acquisition |
23s 2~3s 1s <1s |
|
Power Consumption |
Tracking Acquisition |
30mA @3.3V Typical 35mA @3.3V |
|
Navigation Data Update Rate |
1Hz |
|
|
Operational Limits |
Altitude Velocity Acceleration |
Max 18,000m Max 515m/s Less than 4g |
|
Antenna Specification |
||
|
Outline Dimension |
25 x 25 x 4.0 mm |
|
|
Center Frequency |
1575 ± 3 MHz |
|
|
Bandwidth |
10 MHz min |
|
|
Impedance |
50 Ω |
|
|
Axial Ratio |
3 dB max |
|
|
Polarization |
RHCP |
|
|
Mechanical requirements |
||
|
Dimension |
46* 45 * 15mm |
|
|
Weight |
90g |
|
|
Power consumption |
||
|
VCC |
3.3V~5V |
|
|
Current |
30mA(typical) |
|
|
Environment |
||
|
Operating temperature |
-40 ~ +85 ℃ (w/o backup battery) |
|
|
Storage temperature |
-40 ~ +125 ℃ |
|
|
Humidity |
≤ 95% |
|
