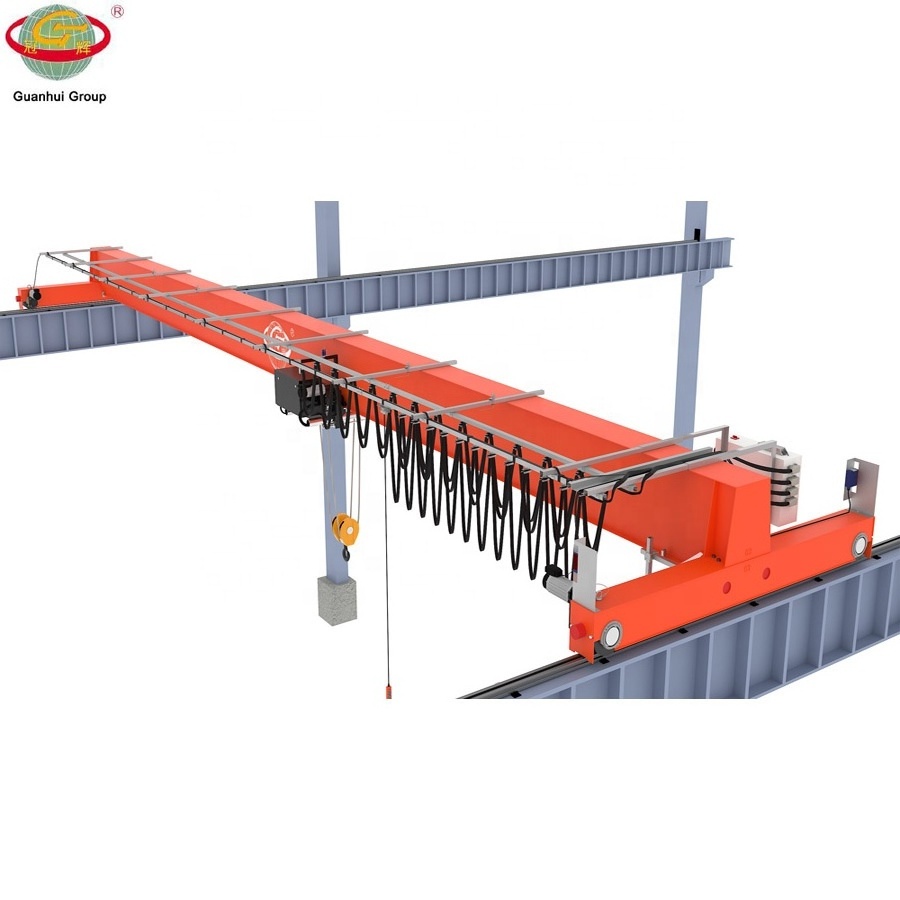

Guanhui bridge single girder overhead crane 5 ton

Guanhui bridge single girder overhead crane 5 ton

FOB Reference Price: Get Latest Price

≥1 Sets

US $8000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Span:: 6.5-31.5m

Place of Origin:: Guangdong, China

Brand Name:: Guanhui

After-sales Service Provided:: Engineers available to service machinery overseas, Field maintenance and repair service

Painting color:: According to require

Standard:: GB /FEM /DIN /BS

Crane feature:: Steel box type

Phase protection:: Include

Lifting limit switch:: Include

product name:: Single girder overhead crane 5 ton

Main electrical parts:: Schneider ,Siemens

Lifting mechanism:: Electric hoist

Power supply:: Under Customers Local Industry Voltage

Certification:: CE,ISO,BV

Quick Details

Max. Lifting Height:: 6m--48m

Rated Lifting Moment:: 20KN

Max. Lifting Load:: 20 ton

Span:: 6.5-31.5m

Place of Origin:: Guangdong, China

Brand Name:: Guanhui

After-sales Service Provided:: Engineers available to service machinery overseas, Field maintenance and repair service

Painting color:: According to require

Standard:: GB /FEM /DIN /BS

Crane feature:: Steel box type

Phase protection:: Include

Lifting limit switch:: Include

product name:: Single girder overhead crane 5 ton

Main electrical parts:: Schneider ,Siemens

Lifting mechanism:: Electric hoist

Power supply:: Under Customers Local Industry Voltage

Certification:: CE,ISO,BV

Our Advantages

1. High-quality crane with higher usage efficiency and more comfortable operation
2. Stable performance to reduce shutdown repair & maintenance period
3. FEM / DIN / ISO Standard, Compact structure, light self-weight, space saving, low wheel pressure, Workshop and bracket can lower down ,Workshop column and bearing girder can reduce to cut down total investment of workshops greatly.
4. Small motor power and Inverter frequency control, Saving power, smooth & silent running, low carbon, maintenance free.
5. Automation application

FEATURES AT A GLANCE

Guanhui KS Series crane ：

1. Crane capacity up to 20 ton
2. Crane span from 6.5m to 31.5m
3. Low headroom hoist ,module design
4. Hardened gear, Smart driving, higher efficiency, Reliable rope guider
5. Heavy duty motor, 60%ED rating, IP55/H insulation, Electromagnitic disk brake

5 ton hoist detail

10 ton hoist detail

End carriages detail

Packaging and delivery

1) 100% QC inspection before shipment;
2) All frangible accessories will be protected by plastic papers and then packaged in wooden box;
3) Delivery time: strictly performer based on contract;

Our Honor

Installation Instructions

PRE-ASSEMBLE AND TEST , PROVIDE INSTALLATION VIDEO
Before made face painting and delivery .All overhead crane we will do pre-assemble and test in our factory .Also made each crane installation Video for customer .Pre-wired ,plug & play power connection ,Installation guidance Video provide ,save money save time ! Meanwhile ,pre-assembled can ensure crane not any dimension mistake ,and ensure crane all machinery have good running .

On site Technician installation support available

Quality Assurance

Quality assurance — is a means of preventing defects and mistakes in manufactured products ：

At Guanhui, we are fully committed to providing quality products and services through continuous improvement and on-time delivery.

1. Strict weld inspection process
2. Strict size control for each items
3. Strict production processing and workmanship control ,QC inspection control
4. Strictly polished for four side and corner
5. Before painting, cover and protect some parts ,ensure paint quality
6. Before delivery ,pre-assembled & test whole crane ,ensure crane not dimension mistake and no quality problems

Customer Comment

We need to do ensure our product have good quality and we are provide good service for each customers . And the meanwhile , must ensure our crane products are Robustness durable, reliability, long service live and safety. Adaptation to the customer and Ensure maximum economic benefits for users .

Because we know the quality and service of the products will affect the next cooperation and Customer's recommend project

The comments from user :

Comment 1 from Ethiopia user : Total 47 cranes from us ( Overhead & Gantry crane ) ,cooperation from the year 2013
Comment 2 from Angola user : Two gantry cranes for plastic model ,cooperation from the year 2011
Comment 3 from Angentina user : Total 11 cranes from us ,cooperation from the year 2012

Safety Monitoring System

Mainly used for crane operation data records, safety protection, It is LCD display of electronic equipment. For crane travelling operating conditions, safety hazards and illegal operations and many other conditions, to prevent the crane running in potentially dangerous situations, to ensure the safety of personnel and equipment

1. Hoist safe working Period counter (SWP%)

2. Lifting running time counter

3. Overloading counter

4. Motor starts counter

5. Overheating protection

6. Overload protection

7. Brake-ware supervision
